- Challenger 1800, 5446 (240 EFI), 2001
02- Fuel System

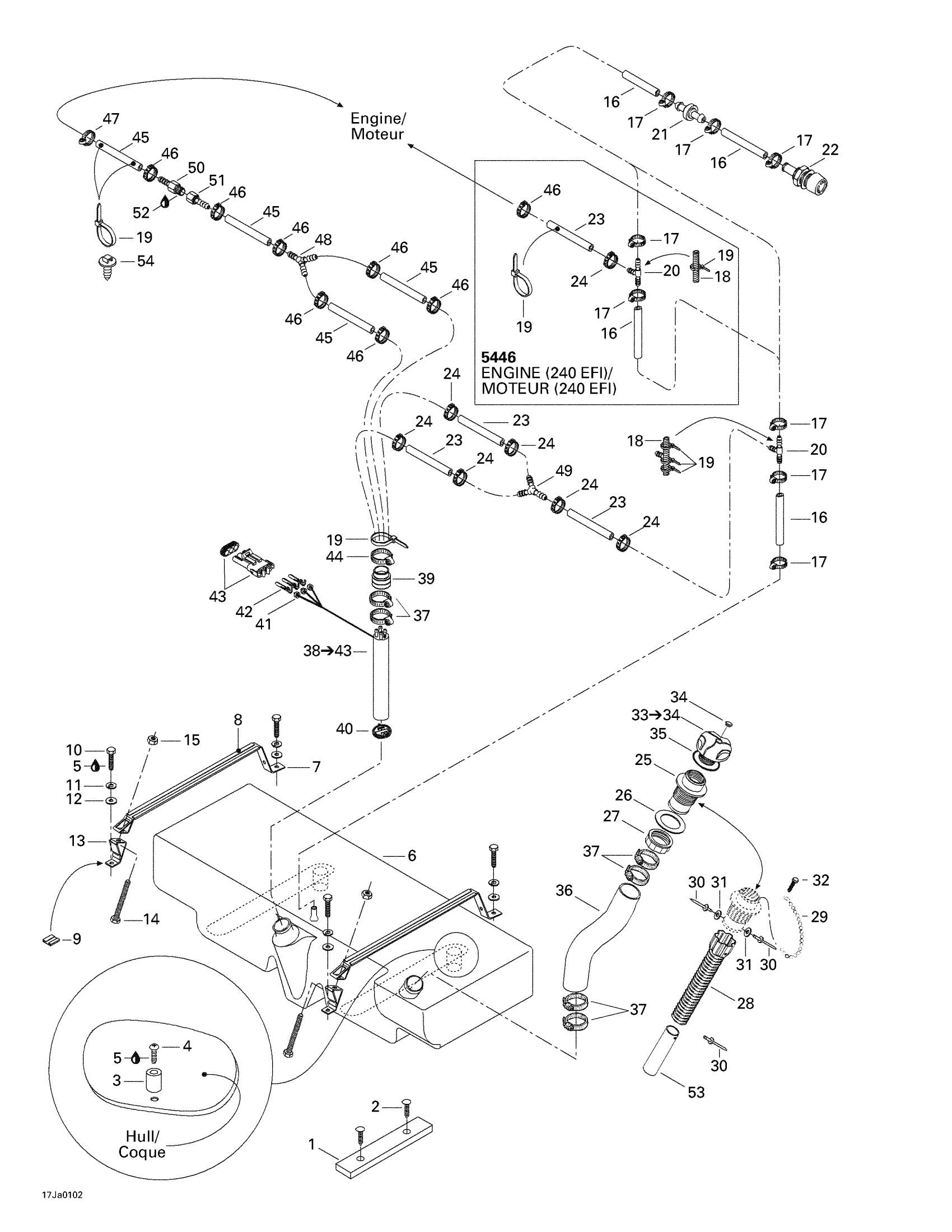

Sea-doo Challenger 1800, 5446 (240 EFI), 2001 02- Fuel System Diagram
#
1
Rubber Pad
293830021
Unavailable
2
Black, Dart
293730006
$0.99
3
Rubber Bumper
204560039
Unavailable
4
Phillips Screw M5 X 35
208653560
$2.22
5
Loctite 271, 10 ml
293800005
$26.99
6
Fuel Tank, Plastic
204560073
Unavailable
7
Fuel Tank Strap
204560011
Unavailable
8
Protector Pad
204560037
Unavailable
9
Protecteur Pad
204560027
Unavailable
10
Hex. Screw M8 X 30
207183060
$1.58
11
Lock Washer 8 mm, Stainless
234181601
$0.55
12
Flat Washer 8 mm, Stainless
234082600
$2.43
13
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
14
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
15
Hex. Elastic Nut M8
232581600
$1.48
16
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
17
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Tie-Rap 180 mm
414115200
$0.11
20
T-Fitting
204560038
Unavailable
21
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
22
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
23
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
24
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
25
Filler Neck
275500247
Unavailable
26
Gasket
293250029
$14.82
27
Filler Neck Nut, Fuel
211100012
$14.22
28
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
29
Oil Cap Chain
275500015
Unavailable
30
Rivet 1/8”
293150057
Unavailable
31
Flat Washer M3, Stainless
234032600
$0.55
32
Screw K40 X 10
241140060
$1.48
33
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
34
Black, Snap Cap
293000034
$9.39
35
Gasket
293250017
Unavailable
36
Filler Neck Hose
204560033
Unavailable
37
Norma Clamp
293650081
$12.18
38
BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48
204560223
Unavailable
39
Fuel Tube Adaptor
204560066
Unavailable
40
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
41
Wire Seal
278000218
$4.39
42
Female Terminal
278000223
$3.19
43
Male Housing, 3 Circuits
278000273
$9.59
44
Norma Clamp
293650077
$7.41
45
Hose 5/16”, Meter
204560177
Unavailable
46
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
47
Tridon Gear Clamp
293650172
$3.09
48
Y-Fitting
204550001
Unavailable
49
Y-Fitting
293710059
$9.69
50
Anti-Siphon Valve | CHALLENGER 1800 (5774).
204560122
Unavailable
51
HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).
293700038
Unavailable
52
Was 293800013 Loctite 56765
219704454
$65.99
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Mount Dart
293730040
$1.04
