1990 Yamaha Inviter (CF300P) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

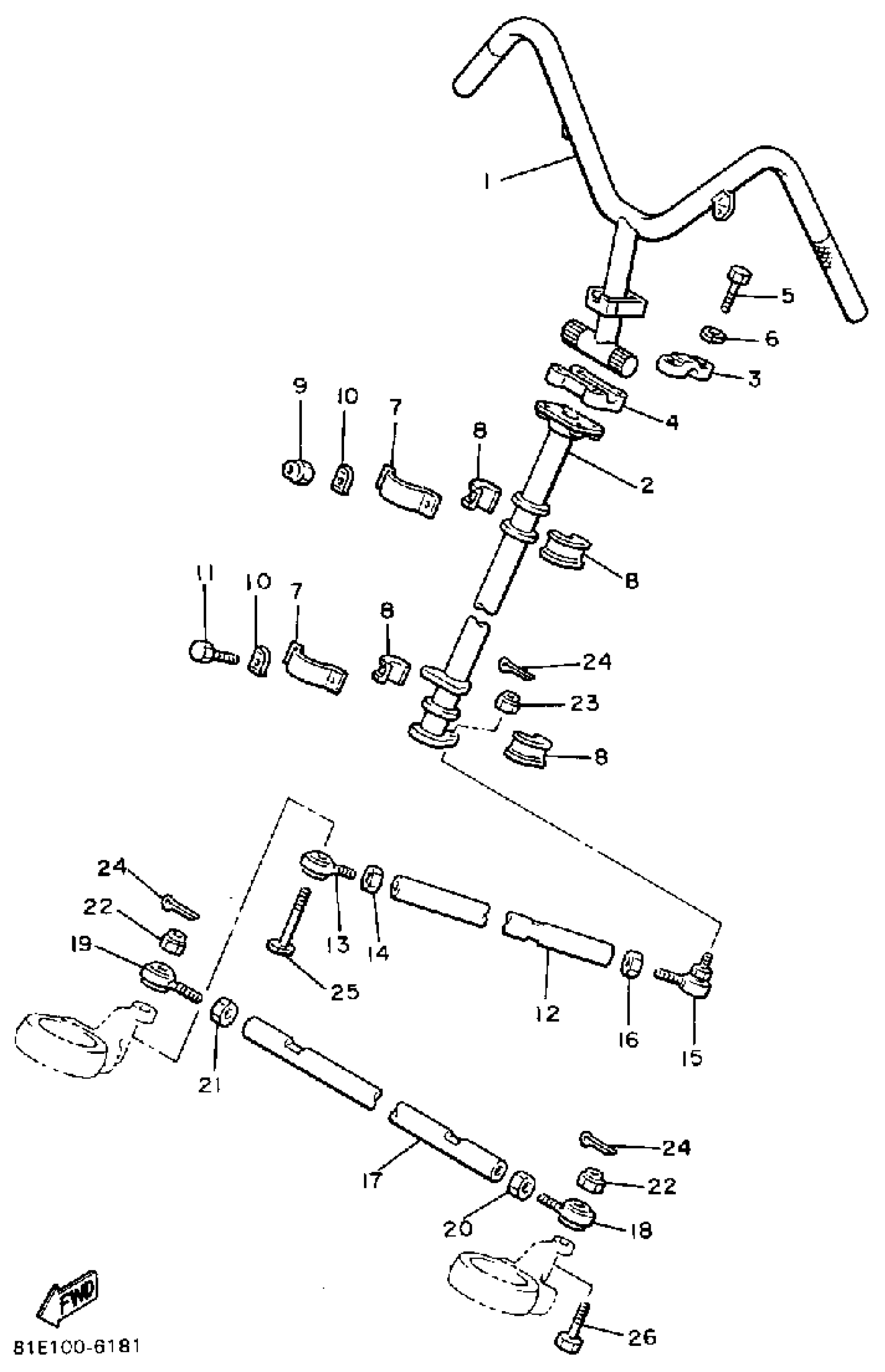

1990 Yamaha Inviter (CF300P) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

81E-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

81E-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

4

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

5

BOLT, HEXAGON

97017-08055-00

1

$6.88

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

8

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

11

BOLT, HEXAGON

97017-08016-00

1
Out of stock

12

ROD, STEERING RELAY

81E-23821-00-00

1
Out of stock

13

JOINT, UNIVERSAL 3

87S-23847-01-00

1

$44.71

In stock

14

NUT, HEXAGON (8A5)

90170-10186-00

1

$7.60

In stock

15

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

16

NUT (682)

95380-10700-00

1

$5.78

In stock

17

ROD, TIE

81E-23831-00-00

1
Out of stock

18

JOINT, UNIVERSAL 2

87S-23845-01-00

—

$45.86

In stock

19

JOINT, UNIVERSAL 3

87S-23847-01-00

1

$44.71

In stock

20

NUT (682)

95380-10700-00

1

$5.78

In stock

21

NUT, HEXAGON (8A5)

90170-10186-00

1

$7.60

In stock

22

NUT, NYLON

95707-10300-00

—

$6.68

In stock

23

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

24

PIN, COTTER

91490-25020-00

—

$2.94

In stock

25

BOLT

90109-10767-00

1
Out of stock

26

BOLT, PIN HOLE (8M6)

90102-10044-00

—

$12.18

In stock
