1990 Yamaha Inviter (CF300P) SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

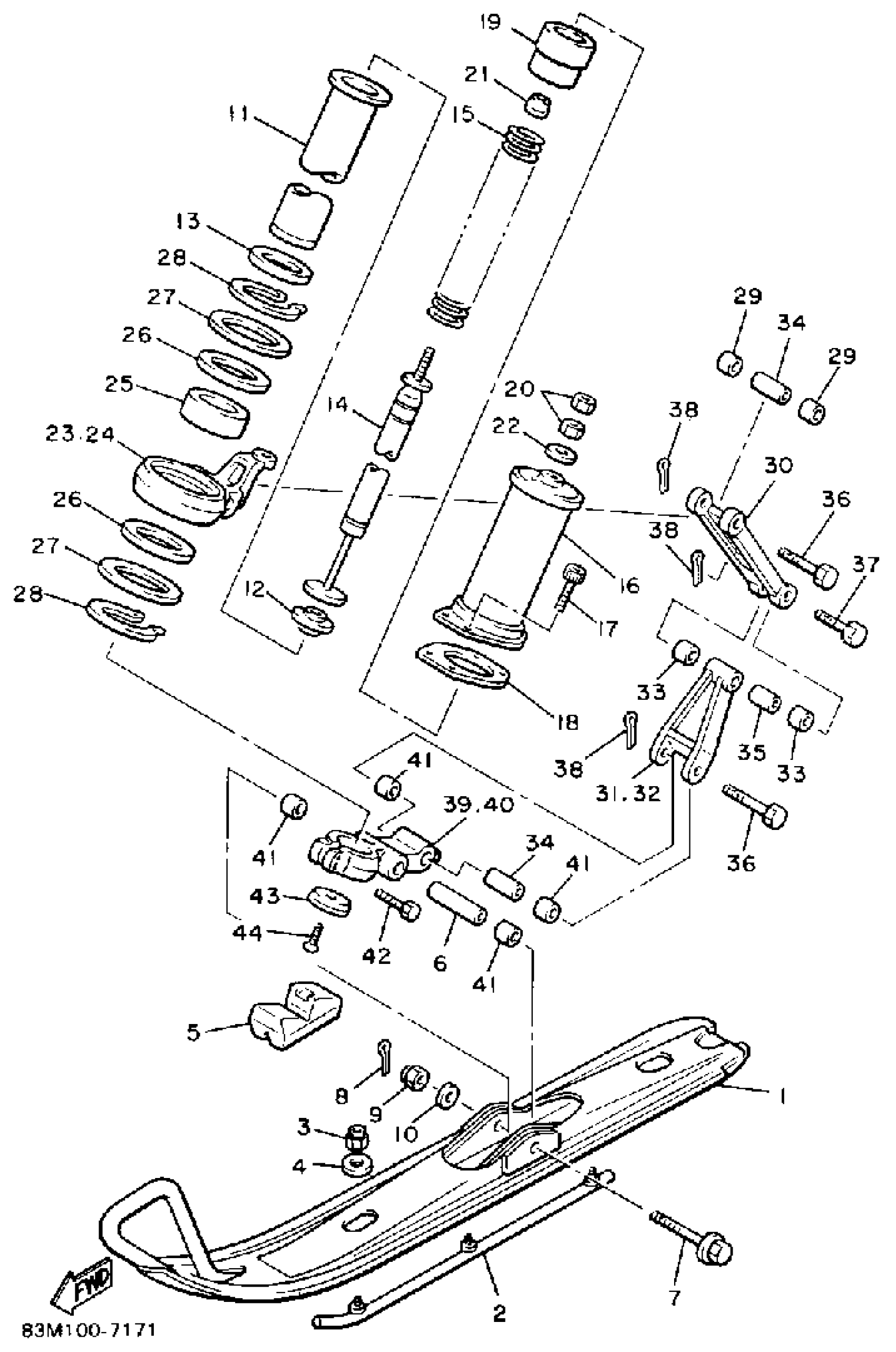

1990 Yamaha Inviter (CF300P) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8V0-23710-02-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

STOPPER 1

81E-23743-00-00

1
Out of stock

6

COLLAR (8V0)

90387-106J3-00

1

$13.95

In stock

7

BOLT, WASHER BASED(83M)

90105-10438-00

—

$7.57

In stock

8

PIN, COTTER

91490-20025-00

1

$1.31

In stock

9

NUT, NYLON

95707-10300-00

1

$6.68

In stock

10

WASHER(6TA)

92907-10600-00

1
Out of stock

11

CYLINDER, SHOCK ABS

81E-22471-00-00

1
Out of stock

12

WASHER

81E-23779-00-00

1
Out of stock

13

STOP, REBOUND

81E-22494-00-00

1
Out of stock

14

ABSORBER ASSY 1

83M-2376A-00-00

1
Out of stock

15

SPRING, COMPRESSION

90501-554E2-00

1
Out of stock

16

HOLDER, ABSORBER

81E-2376J-00-00

1
Out of stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

WASHER 2

81E-23738-00-00

1
Out of stock

19

BUMP, STOP

81E-22493-00-00

1
Out of stock

20

. NUT

95380-08700-00

1

$3.07

In stock

21

CUSHION

8V0-2386J-00-00

1
Out of stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

ARM, OUTSIDE 1

81E-23851-00-00

1
Out of stock

24

ARM, OUTSIDE 2

81E-23852-00-00

1
Out of stock

25

BUSH, BIMETAL FORMED

90384-63188-00

1
Out of stock

26

OIL SEAL

93109-63044-00

1
Out of stock

27

WASHER, PLATE

90201-635H7-00

1
Out of stock

27

WASHER, PLATE

90201-637F3-00

1
Out of stock

28

CIRCLIP

93410-63066-00

1
Out of stock

29

—

$9.15

In stock

30

ARM, FRONT 1

8V0-2382E-01-00

1
Out of stock

31

ARM, FRONT 2 (L, H)

8V0-2382F-02-00

1
Out of stock

32

ARM, FRONT4 (R, H)

8V0-2383F-02-00

1
Out of stock

33

—

$9.29

In stock

34

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

35

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

36

BOLT, WITH HOLE

90102-10054-00

1
Out of stock

37

BOLT, WITH HOLE

90102-10055-00

1
Out of stock

38

PIN, COTTER

91490-20025-00

1

$1.31

In stock

39

BRACKET 1 (L, H)

81E-2376E-00-00

1
Out of stock

40

BRACKET 2 (R, H)

81E-2377E-00-00

1
Out of stock

41

—

$9.15

In stock

42

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

43

WASHER 1

81E-23737-00-00

—

$10.09

In stock

44

SCREW, FLAT HEAD(4EM)

98707-06016-00

—

$6.68

In stock
