1990 Yamaha Inviter (CF300P) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

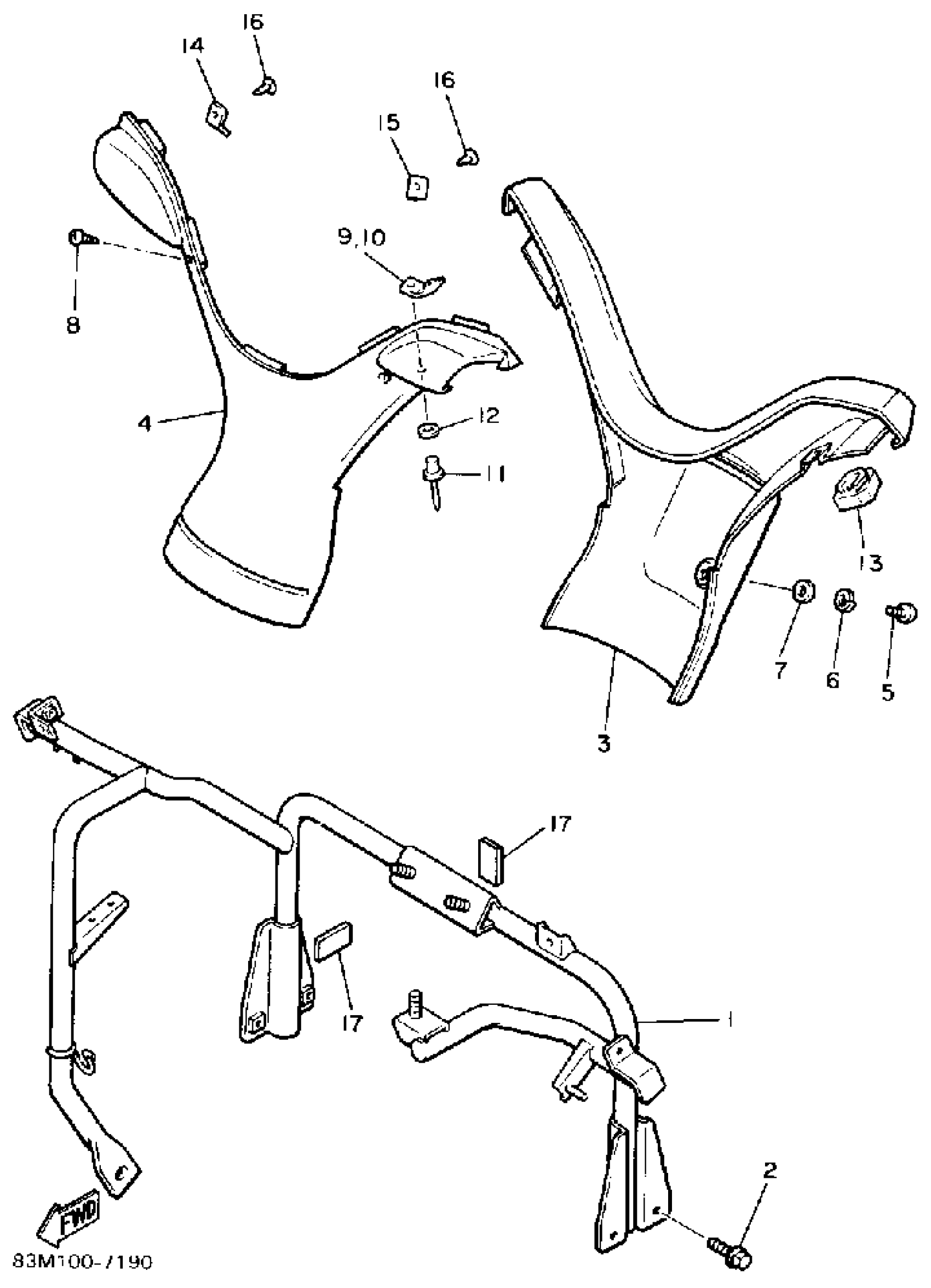

1990 Yamaha Inviter (CF300P) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

83M-23870-00-00

1
Out of stock

2

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

3

PAD, STEERING

83U-23815-00-00

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK

83U-23170-00-0

1
Out of stock

5

SCREW, PAN

98517-05012-00

1

$3.91

In stock

6

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

7

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

8

SCREW, TAPPING

(97706-50116-00)

1
Out of stock

9

JOINT 2

81E-23823-00-00

1
Out of stock

10

JOINT 3

81E-23832-00-00

1
Out of stock

11

RIVET (856)

90267-48014-00

1
Out of stock

12

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

13

SPACER

81E-23858-00-00

1
Out of stock

14

BRACKET 14

83M-23899-00-00

1
Out of stock

15

BRACKET 15

83M-23896-00-00

1
Out of stock

16

RIVET(81E)

90269-05055-00

—

$7.02

In stock

17

SPACER

8V0-23858-00-00

—

$2.37

In stock
