1990 Yamaha Inviter (CF300P) Meter Diagram

← All diagrams

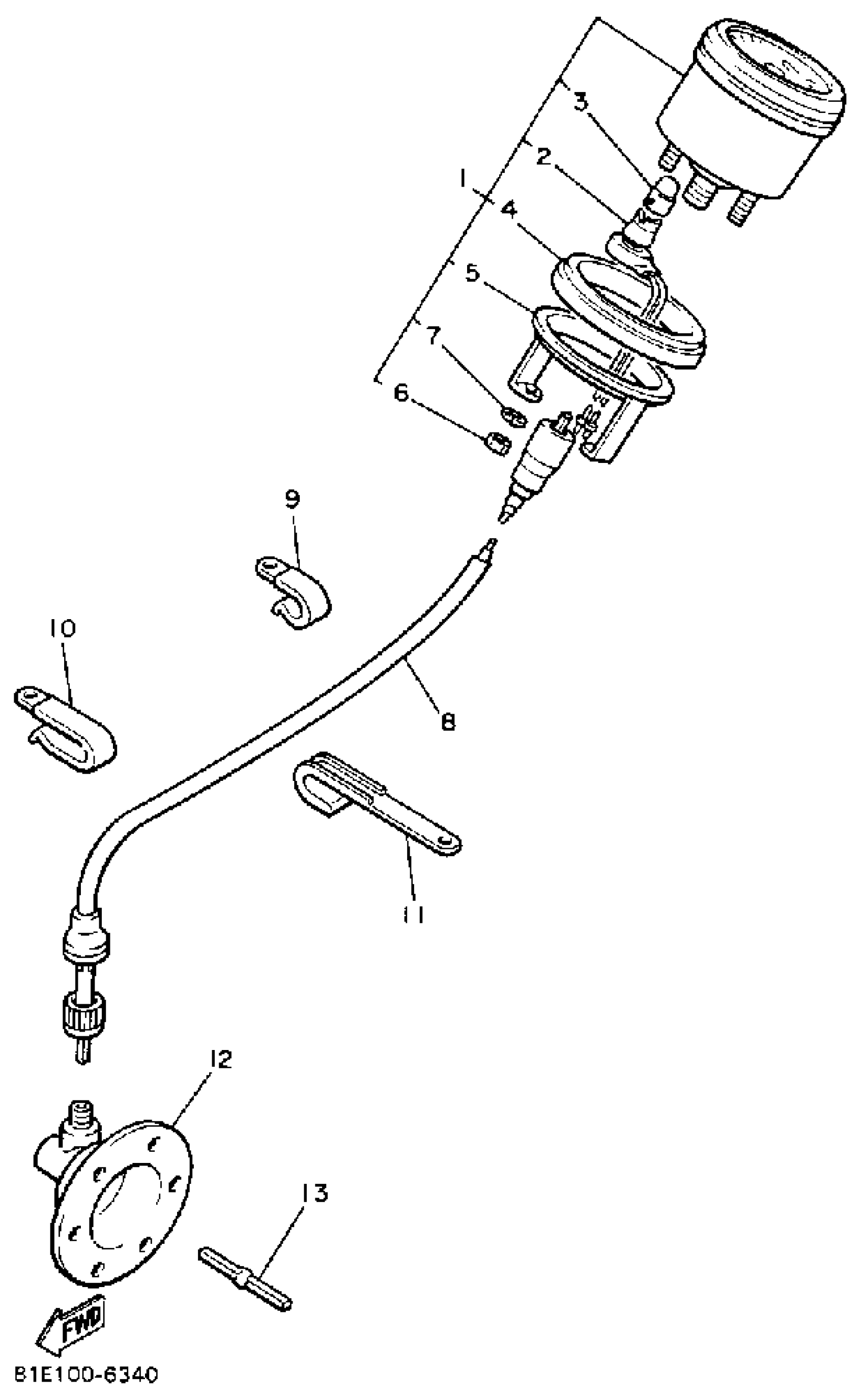

Find the part on the Meter diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Inviter (CF300P) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

87C-83510-20-00

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

8V-78353-64-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

. DAMPER

861-83523-40-00

1
Out of stock

5

PLATE, FITTING

863-83514-40-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

9

CLAMP

90465-08028-00

1

$4.62

In stock

10

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

11

CLAMP

90462-06164-00

1
Out of stock

12

METER GEAR HOUSINGHOUSING COMP

8W6-47700-00-00

1
Out of stock

13

JOINT

8K4-47715-00-00

1

$4.60

In stock
