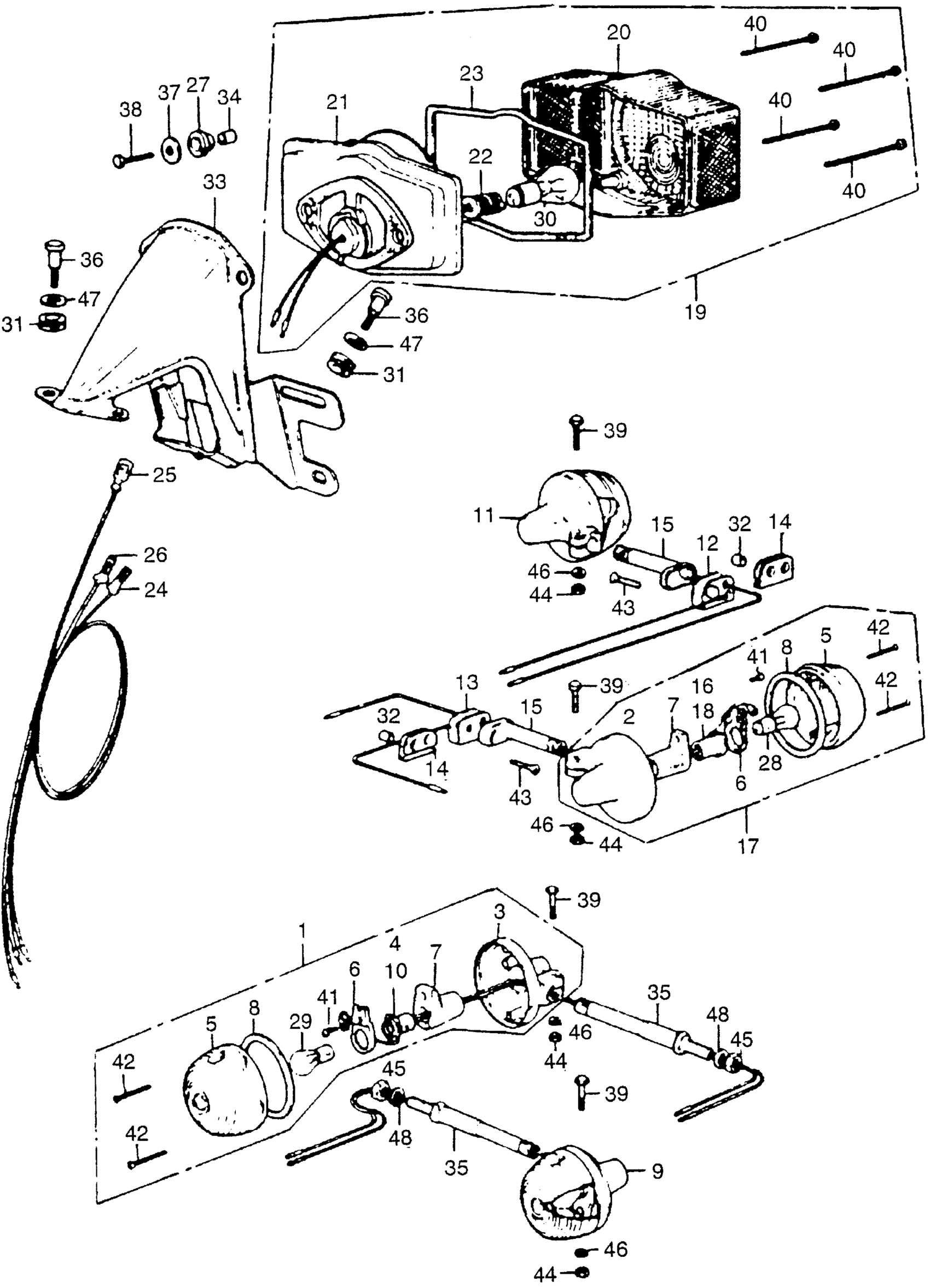

Honda CB550A MOTORCYCLE, JPN, VIN# CB550K-1000001 TAILLIGHT + TURN SIGNAL K Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-341-702

Unavailable

2

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

2

BASE, TURN SIGNAL

33401-341-701

$39.39

3

BASE, TURN SIGNAL

33401-341-701

$39.39

4

SOCKET, R. FR. TURN SIGNAL

33402-341-702

Unavailable

5

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

5

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

5

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33404-268-671.

33402-268-672

$8.92

6

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE) This part replaces 33407-284-000.

33407-284-003

Unavailable

6

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE)

33407-284-003

Unavailable

7

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE)

33408-341-701

Unavailable

8

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

9

TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE)

33450-341-702

Unavailable

10

SOCKET, L. FR. TURN SIGNAL

33453-341-702

Unavailable

11

TURN SIGNAL ASSY., R. RR. This part replaces 33600-300-000.

33600-306-679

$50.59

11

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

11

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

11

TURN SIGNAL ASSY., R. RR. This part replaces 33600-415-000.

33600-306-679

$50.59

11

TURN SIGNAL ASSY., R. RR. This part replaces 33650-306-670.

33600-306-679

$50.59

12

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-323-670

Unavailable

13

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33605-323-670

Unavailable

14

RUBBER, RR. TURN SIGNAL MOUNT

33606-074-010

$4.98

15

STAY, R. RR. TURN SIGNAL

33607-323-670

Unavailable

16

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-300-000

Unavailable

17

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

17

TURN SIGNAL ASSY., R. RR. This part replaces 33650-300-000.

33600-306-679

$50.59

18

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-300-000

Unavailable

19

TAILLIGHT UNIT (NOT AVAILABLE)

33701-341-671

Unavailable

20

LENS, TAILLIGHT

33702-341-671

Unavailable

21

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-671

Unavailable

22

WIRE, TAILLIGHT

33708-098-000

Unavailable

22

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

23

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

24

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-323-000

Unavailable

25

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

26

CABLE, STOP LIGHT SUB (NOT AVAILABLE)

33713-323-000

Unavailable

27

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

28

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

29

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

29

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

30

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

30

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

31

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

32

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

32

COLLAR A, RR. FENDER

80108-061-010

$4.12

33

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-341-670XW

Unavailable

34

COLLAR, LICENSE PLATE BRACKET

84706-341-000

$3.01

35

BOLT, FR. TURN SIGNAL SETTING (NOT AVAILABLE)

90154-341-670

Unavailable

36

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

36

BOLT, TAILLIGHT SETTING This part replaces 90162-292-000.

90162-283-000

$4.24

37

WASHER (20MM)

90581-310-000

$1.90

38

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

39

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-0B.

93101-06028-0B

$1.49

39

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-02.

93101-06028-0B

$1.49

39

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93100-06028-0B.

93101-06028-0B

$1.49

39

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.)

93101-06028-0B

$1.49

40

SCREW, PAN (4X55)

93500-04055-4J

$1.49

41

SCREW, PAN (5X8)

93500-05008-0A

$1.49

42

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

43

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

43

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

44

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM)

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

45

NUT, HEX. (10MM)

94001-10000-0S

$1.49

46

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

46

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

46

WASHER, PLAIN (6MM)

94101-06800

$1.49

47

WASHER, PLAIN (8MM)

94101-08200

$1.49

48

WASHER, SPRING (8MM)

94111-10000

$1.49
