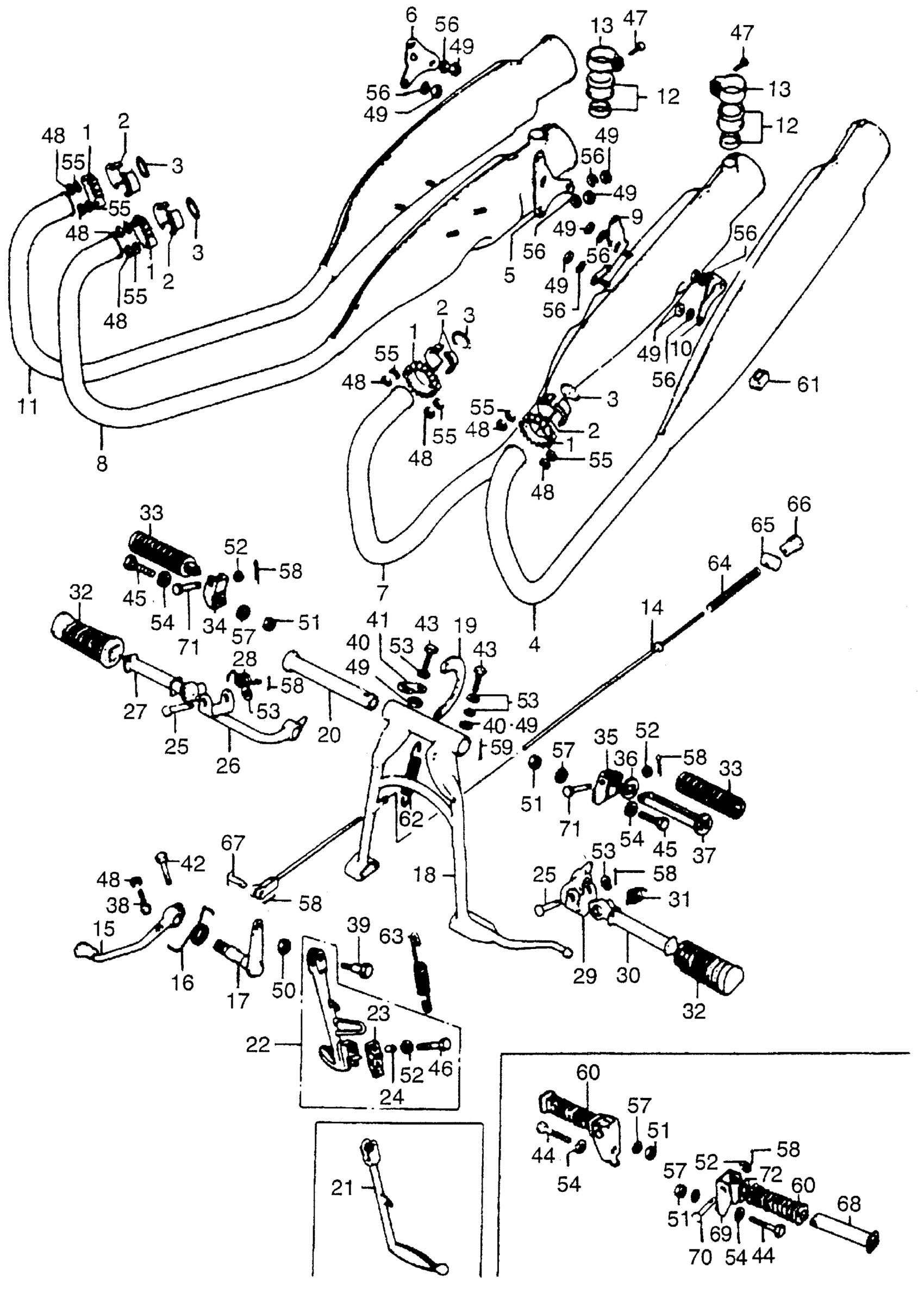

Honda CB550A MOTORCYCLE, JPN, VIN# CB550K-1000001 EXHAUST MUFFLER + STEP STEP Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-323-000

Unavailable

2

COLLAR, EX. JOINT

18233-107-000

$6.36

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

4

MUFFLER 1, EX. This part replaces 18300-323-060.

18300-374-707

Unavailable

4

MUFFLER 1, EX. This part replaces 18300-374-700.

18300-374-707

Unavailable

4

MUFFLER 1, EX.

18300-374-707

Unavailable

5

BRACKET B, R. MUFFLER (NOT AVAILABLE)

18340-323-040

Unavailable

6

BRACKET A, R. MUFFLER (NOT AVAILABLE)

18345-323-010

Unavailable

7

MUFFLER 2, EX. This part replaces 18350-323-060.

18350-374-707

Unavailable

7

MUFFLER 2, EX. This part replaces 18350-374-700.

18350-374-707

Unavailable

7

MUFFLER 2, EX.

18350-374-707

Unavailable

8

MUFFLER 3, EX. This part replaces 18400-323-070.

18400-374-707

Unavailable

8

MUFFLER 3, EX. This part replaces 18400-374-700.

18400-374-707

Unavailable

8

MUFFLER 3, EX.

18400-374-707

Unavailable

9

BRACKET B, L. MUFFLER (NOT AVAILABLE)

18430-323-040

Unavailable

10

BRACKET A, L. MUFFLER (NOT AVAILABLE)

18435-323-010

Unavailable

11

MUFFLER 4, EX. This part replaces 18450-323-070.

18450-374-707

Unavailable

11

MUFFLER 4, EX. This part replaces 18450-374-700.

18450-374-707

Unavailable

11

MUFFLER 4, EX.

18450-374-707

Unavailable

12

TUBE, MUFFLER CONNECTING

18473-323-000

Unavailable

13

BAND, MUFFLER CONNECTING

18476-323-000

Unavailable

14

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-323-010.

43451-323-020

Unavailable

14

ROD, RR. BRAKE (NOT AVAILABLE)

43451-323-020

Unavailable

15

PEDAL, BRAKE

46500-374-000

Unavailable

16

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-323-020

Unavailable

17

SHAFT, RR. BRAKE PIVOT

46515-323-010

Unavailable

18

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-323-000B

Unavailable

19

PLATE, MAIN STAND SPRING

50523-300-010

Unavailable

20

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

21

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-323-000B

Unavailable

25

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

25

PIN, STEP BAR JOINT

50603-033-010

$3.30

26

BAR, R. STEP *NH1* (BLACK)

50615-323-670B

Unavailable

27

ARM, R. STEP *NH1* (BLACK)

50616-323-670B

Unavailable

28

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

29

BAR, L. STEP *NH1* (BLACK)

50641-323-670B

Unavailable

30

ARM, L. STEP *NH1* (BLACK)

50642-323-670B

Unavailable

31

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

32

RUBBER, STEP

50661-310-000

$13.34

38

BOLT, BRAKE PEDAL ADJUSTING (NOT AVAILABLE)

90104-323-000

Unavailable

39

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

41

WASHER, BATTERY BREATHER TUBE GUIDE (NOT AVAILABLE)

90514-323-000

Unavailable

42

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

42

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

43

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

43

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

44

BOLT, HEX. (10X35) This part replaces 92000-10035-0A.

92101-10035-0A

Unavailable

47

SCREW, PAN (5X16)

93500-05016-0G

$1.49

48

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

48

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

48

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

48

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

48

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

48

NUT, HEX. (6MM)

94001-06200-0S

$1.49

48

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

50

NUT, HEX. (10MM)

94001-10000-0S

$1.49

51

NUT, HEX. (10MM)

94030-10000

$1.49

52

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

52

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

52

WASHER, PLAIN (6MM)

94101-06800

$1.49

53

WASHER, PLAIN (8MM)

94101-08000

$1.49

54

WASHER, PLAIN (10MM)

94102-10000

$1.49

55

WASHER, SPRING (6MM)

94111-06000

$1.49

56

WASHER, SPRING (8MM)

94111-08000

$1.49

57

WASHER, SPRING (8MM)

94111-10000

$1.49

58

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

58

PIN, COTTER (1.6X25)

94201-16250

$1.49

59

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

59

PIN, COTTER (2.5MM)

94201-25300

$1.49

60

RUBBER, PILLION STEP

95011-31000

$7.16

61

RUBBER A, STAND STOPPER

95011-61000

$1.49

62

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

62

SPRING G, MAIN STAND

95014-71702

$4.08

63

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

63

SPRING D, SIDE STAND

95014-72402

$2.92

64

SPRING A, BRAKE ROD

95014-73100

$1.49

64

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

65

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

65

JOINT, BRAKE ARM

95015-32001

$1.49

66

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

67

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

68

BAR B, PILLION STEP

95015-62000

$30.68

69

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

70

PIN B, PILLION FOOTPEG

95015-82000

$2.41

72

WASHER, FOOTPEG

95015-91000

$1.31
