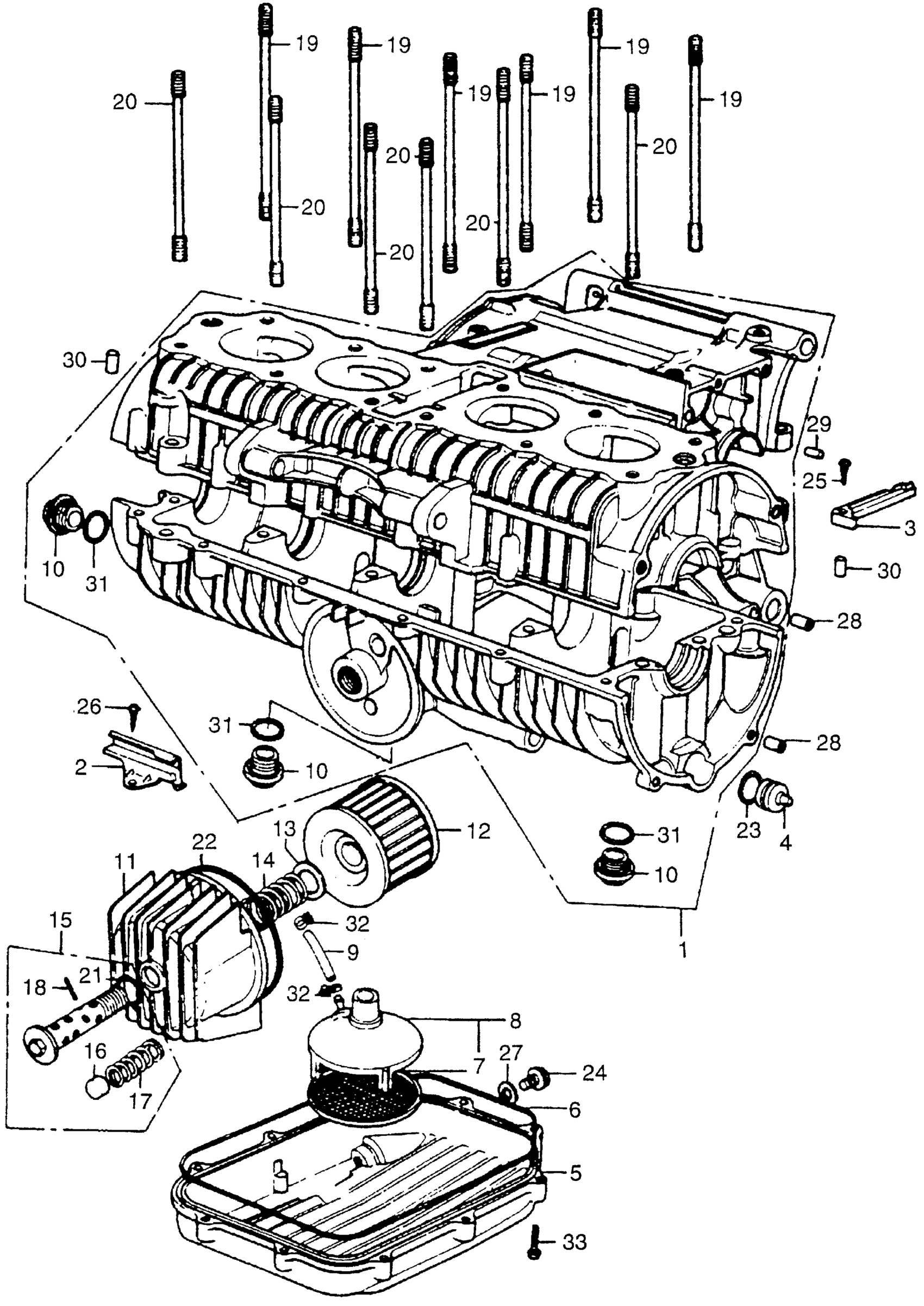

Honda CB550A MOTORCYCLE, JPN, VIN# CB550K-1000001 CRANKCASE + OIL FILTER Diagram

#

Description
Price

1

CRANKCASE SET

11000-374-000

Unavailable

2

GUIDE A, OIL (NOT AVAILABLE)

11202-323-000

Unavailable

3

GUIDE B, OIL (NOT AVAILABLE)

11203-323-010

Unavailable

4

PLUG, OIL PASSAGE (NOT AVAILABLE)

11207-323-000

Unavailable

5

PAN, OIL (NOT AVAILABLE)

11210-323-000

Unavailable

6

GASKET, OIL PAN

11398-426-000

Unavailable

7

SCREEN, OIL STRAINER

15150-300-000

Unavailable

8

STRAINER, OIL (NOT AVAILABLE)

15150-374-000

Unavailable

9

PIPE, TRANSMISSION OIL (NOT AVAILABLE)

15154-374-000

Unavailable

10

CAP B, OIL PASSAGE (NOT AVAILABLE)

15332-300-000

Unavailable

11

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

12

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$8.10

12

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$8.10

12

ELEMENT, OIL FILTER

15410-426-010

$8.10

12

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$8.10

12

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$8.10

13

SEAT, OIL FILTER SPRING

15414-300-000

$3.62

14

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.51

15

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

16

VALVE, CHECK

15473-300-300

$3.87

17

SPRING, CHECK VALVE

15474-300-310

$4.45

18

PIN, SPRING SETTING

15477-300-300

$3.25

19

BOLT A, CYLINDER STUD

90033-323-000

Unavailable

20

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-323-000

Unavailable

21

O-RING (15X2.5)

91301-MY9-003

$2.17

21

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.17

22

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.13

22

O-RING (89X4.5)

91316-425-003

$4.13

23

O-RING (13X2.5)

91319-300-000

$4.71

24

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

25

SCREW, TAPPING (5X16)

93901-25310

$0.70

26

SCREW, TAPPING (6X12)

93901-26110

$1.04

27

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

28

PIN A, DOWEL (8X14)

94301-08140

$2.04

29

PIN B, DOWEL (6X10)

94302-06100

$2.04

30

PIN B, DOWEL (10X16)

94302-10160

$1.61

31

O-RING (19.4X2.8)

94608-40000

$1.20

32

CLIP, TUBE (C11)

95002-70000

$1.49

33

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

33

BOLT, FLANGE (6X32)

95701-06032-00

$1.71
