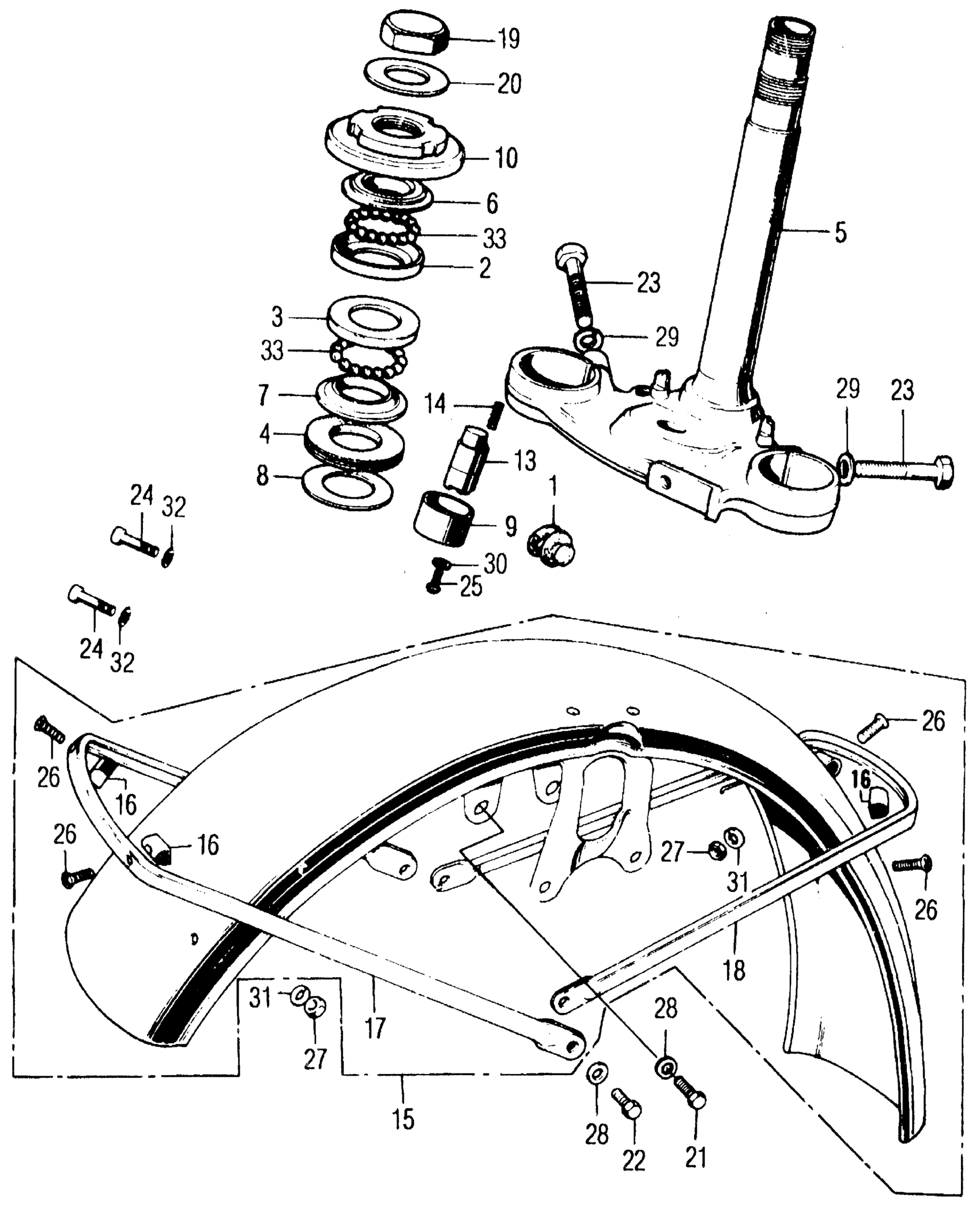

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

1

GROMMET, CABLE

45451-367-690

$4.04

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

2

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

4

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

4

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

5

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-323-020B

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

6

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

6

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

8

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

9

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

10

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

13

LOCK, HANDLEBAR

35010-230-010

Unavailable

13

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

14

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

15

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61100-323-030XW

Unavailable

16

PIECE, FENDER MOUNT

61102-300-000

$6.26

17

STAY A, FR. FENDER (NOT AVAILABLE)

61111-323-000

Unavailable

18

BOLT, HEX. (6X16) (NOT AVAILABLE)

61112-323-000

Unavailable

19

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$19.83

19

NUT, STEERING STEM

90304-415-000

$19.83

19

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

20

WASHER, STEERING STEM

90503-283-000

$4.37

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

22

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

23

BOLT, HEX. (10X35) This part replaces 92000-10035-0A.

92101-10035-0A

Unavailable

24

BOLT, HEX. (6X25) This part replaces 92200-06025.

92201-06025-0A

Unavailable

24

BOLT, HEX. (6X25) This part replaces 92200-06025-0A.

92201-06025-0A

Unavailable

24

BOLT, HEX. (6X25)

92201-06025-0A

Unavailable

25

SCREW, PAN (3X8)

93500-03008-0A

$1.49

26

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

26

SCREW, OVAL (5X20) This part replaces 93700-05020-02.

93700-05020-0B

$1.49

27

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

27

NUT, HEX. (5MM)

94001-05000-0S

$2.74

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (10MM) | Use up to Frame SN 2034711

94101-10000

$1.49

29

WASHER, PLAIN (10MM) | Use from Frame SN 2034712

94102-10000

$1.49

30

WASHER, SPRING (3MM) | Use up to Frame SN 2034711

94111-03000

$1.49

30

WASHER, PLAIN (3MM) | Use from Frame SN 2034712

94101-03000

$1.49

31

WASHER, SPRING (5MM)

94111-05000

$1.49

32

WASHER, SPRING (6MM)

94111-06000

$1.49

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
