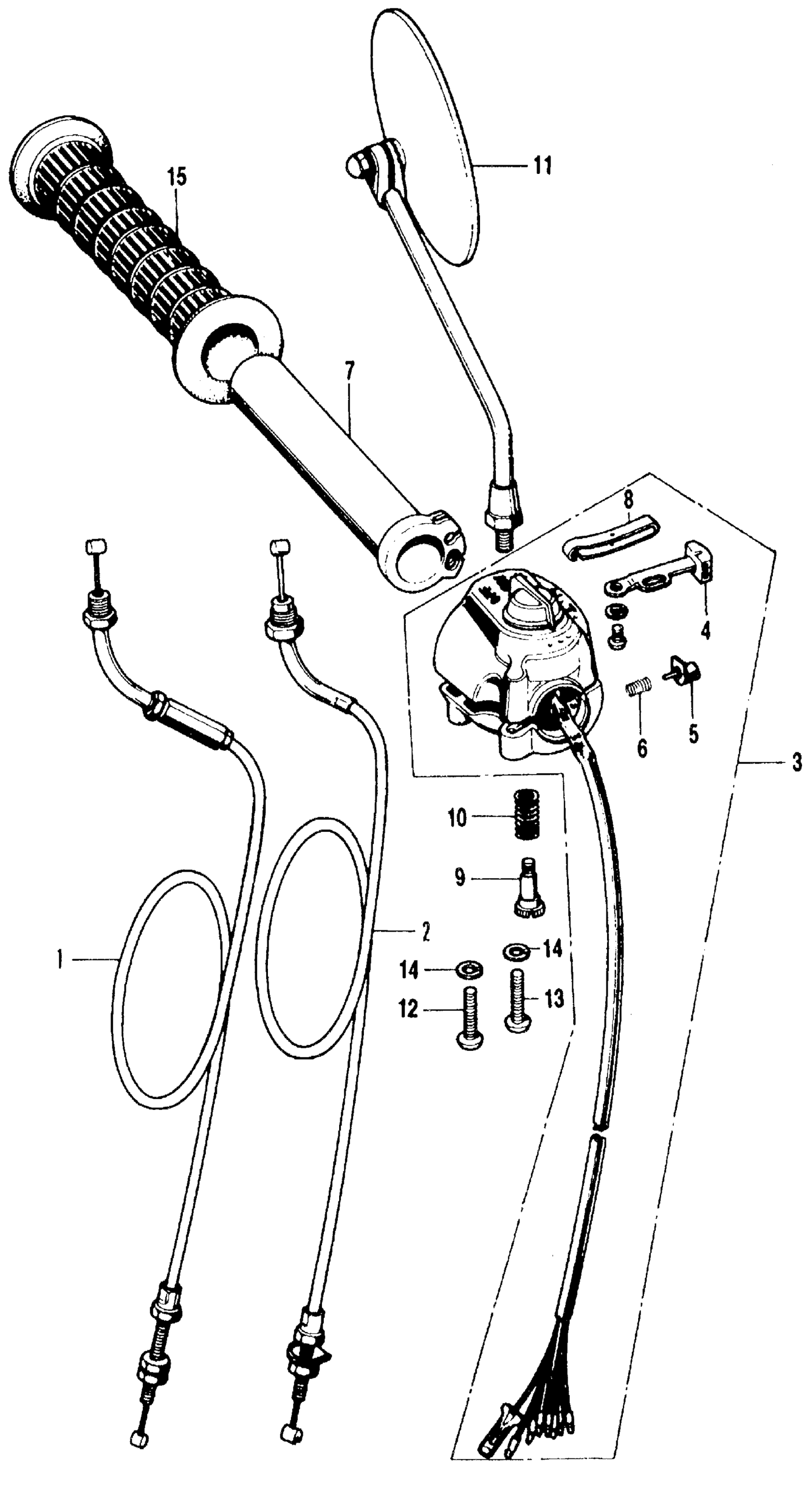

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 RIGHT HANDLE SWITCH + CABLE Diagram

CABLE A, THROTTLE

17910-341-000

Unavailable

CABLE B, THROTTLE

17920-323-000

Unavailable

SWITCH ASSY., STARTER LIGHTING (NOT AVAILABLE) This part replaces 35300-300-674.

35300-323-671

Unavailable

SWITCH ASSY., STARTER LIGHTING (NOT AVAILABLE)

35300-323-671

Unavailable

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-235-000

Unavailable

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

SPRING, BUTTON

35318-259-000

$5.33

PIPE, THROTTLE GRIP

53141-300-010

$20.93

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE)

53163-300-020

Unavailable

BOLT, THROTTLE GRIP ADJUSTING (NOT AVAILABLE)

53190-300-000

Unavailable

SPRING, THROTTLE ADJUSTING (NOT AVAILABLE)

53191-300-000

Unavailable

MIRROR, R. BACK This part replaces 88110-323-004.

88110-323-610

Unavailable

MIRROR, R. BACK This part replaces 88110-371-960.

88110-323-610

Unavailable

SCREW, PAN (5X25)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

GRIP, R. HANDLEBAR

53165-342-670

$15.64
