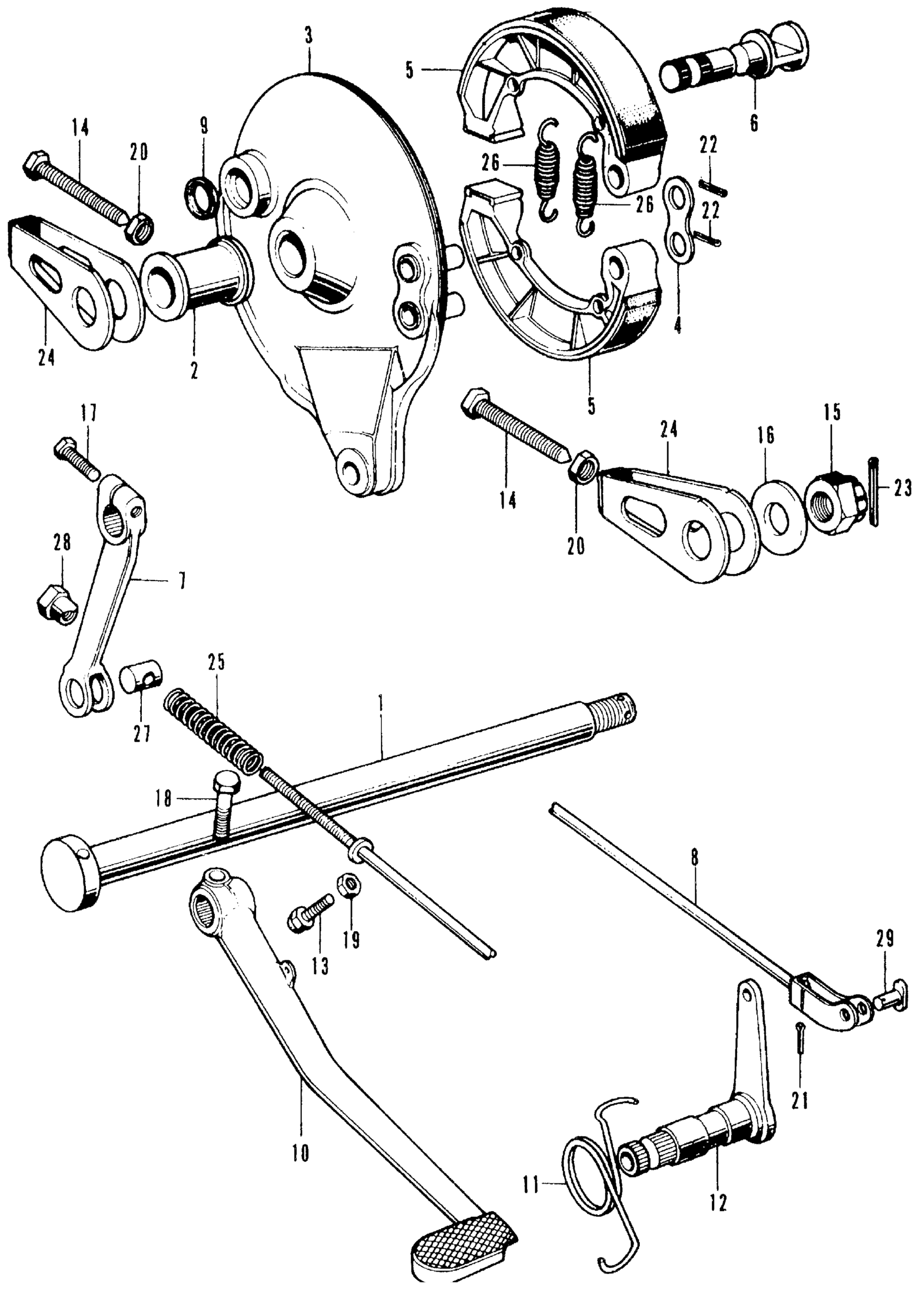

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 REAR BRAKE PANEL + BRAKE PEDAL Diagram

SHOE KIT, BRAKE

06430-390-405

Unavailable

SHOE KIT, BRAKE This part replaces 431A0-390-670.

06430-390-405

Unavailable

AXLE, RR. WHEEL This part replaces 42301-300-010.

42301-300-020

Unavailable

AXLE, RR. WHEEL

42301-300-020

Unavailable

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-323-010

Unavailable

PANEL, RR. BRAKE | Use up to Frame SN 2052650 This part replaces 43100-319-000.

43100-374-000

Unavailable

PANEL, RR. BRAKE This part replaces 43100-347-000.

43100-374-000

Unavailable

PANEL, RR. BRAKE | Use up to Frame SN 2052650 This part replaces 43100-347-000.

43100-374-000

Unavailable

PANEL, RR. BRAKE

43100-374-000

Unavailable

PANEL, RR. BRAKE | Use up to Frame SN 2052650

43100-374-000

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

SHOE KIT, BRAKE

06430-390-405

Unavailable

SHOE KIT, BRAKE This part replaces 43120-283-000.

06430-390-405

Unavailable

SHOE KIT, BRAKE This part replaces 43120-404-003.

06430-390-405

Unavailable

SHOE KIT, BRAKE This part replaces 43120-458-670.

06430-390-405

Unavailable

CAM, RR. BRAKE (NOT AVAILABLE) This part replaces 43141-323-000.

43141-374-000

Unavailable

CAM, RR. BRAKE (NOT AVAILABLE)

43141-374-000

Unavailable

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43411-283-000.

43411-374-000

Unavailable

ARM, RR. BRAKE (NOT AVAILABLE)

43411-374-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-323-010.

43451-323-020

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43451-323-020

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

PEDAL, RR. BRAKE

46500-323-010

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-323-020

Unavailable

SHAFT, RR. BRAKE PIVOT

46515-323-010

Unavailable

BOLT, BRAKE PEDAL ADJUSTING (NOT AVAILABLE)

90104-323-000

Unavailable

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

WASHER (18.5X34) (NOT AVAILABLE)

90523-292-000

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

PIN, COTTER (4.0X30)

94201-40300

$1.49

ADJUSTER K, CHAIN

95014-19000

$19.86

SPRING A, BRAKE ROD

95014-73100

$1.49

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use up to Frame SN 2052650

95014-74320

Unavailable

SPRING, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2052651

43141-346-000

Unavailable

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
