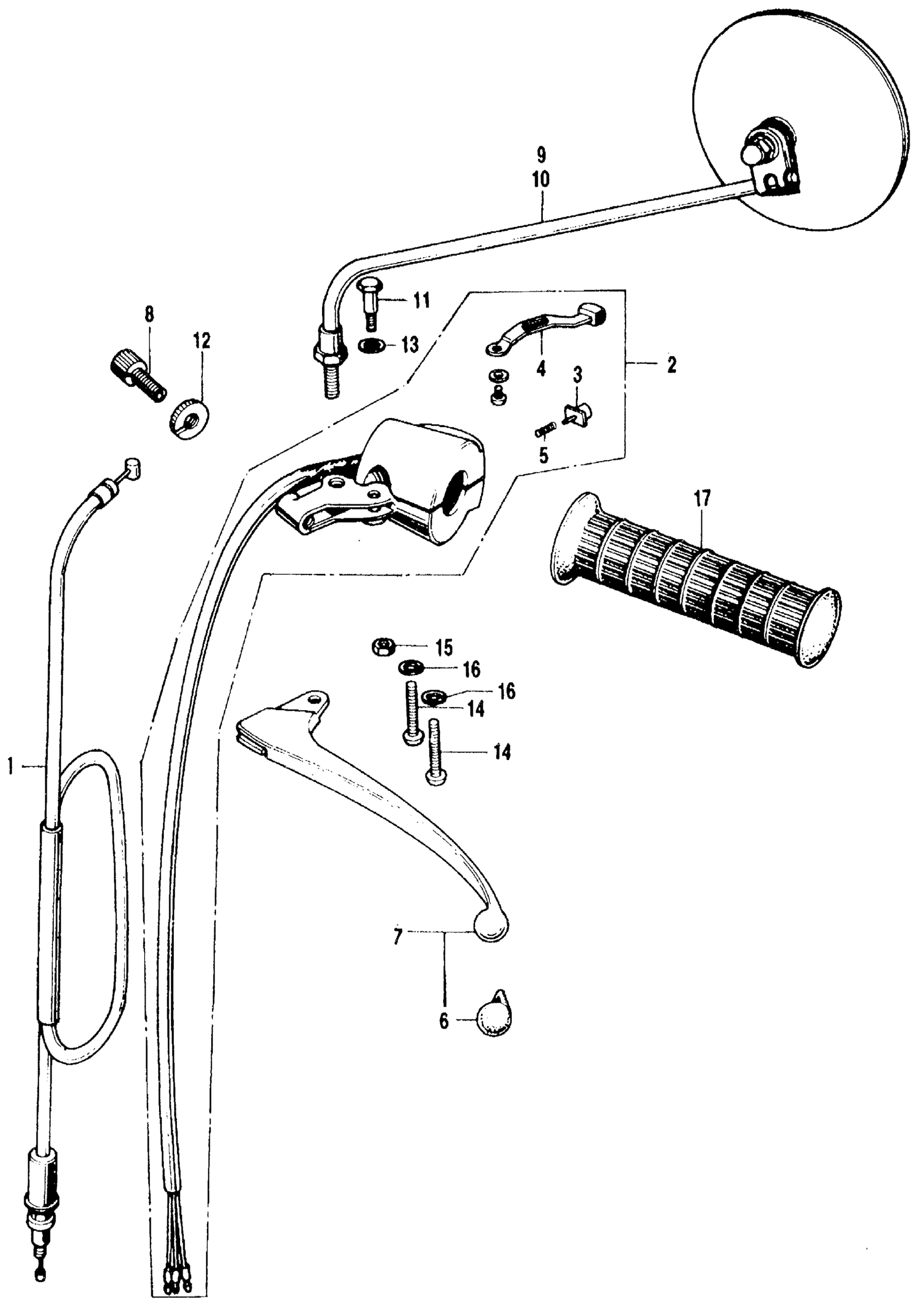

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 LEFT HANDLE SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, CLUTCH

22870-323-020

Unavailable

2

SWITCH ASSY., TURN SIGNAL & HORN (TOYO)

35250-300-033

Unavailable

3

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

4

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-310-810

Unavailable

5

SPRING, BUTTON

35318-259-000

$5.33

6

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

6

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

6

CAP A, LEVER

95010-16001

$5.97

7

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

7

LEVER, L. HANDLE

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

8

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

9

MIRROR, L. BACK This part replaces 88120-323-671.

88120-323-610

Unavailable

9

MIRROR, L. BACK This part replaces 88120-371-960.

88120-323-610

Unavailable

11

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

11

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

12

NUT, FIXING

90321-315-670

$7.31

12

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

13

WASHER (7X12)

90501-310-000

$1.74

14

SCREW, PAN (5X25)

93500-05025-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, SPRING (5MM)

94111-05000

$1.49

17

GRIP, L. HANDLEBAR

53166-342-670

$13.49
