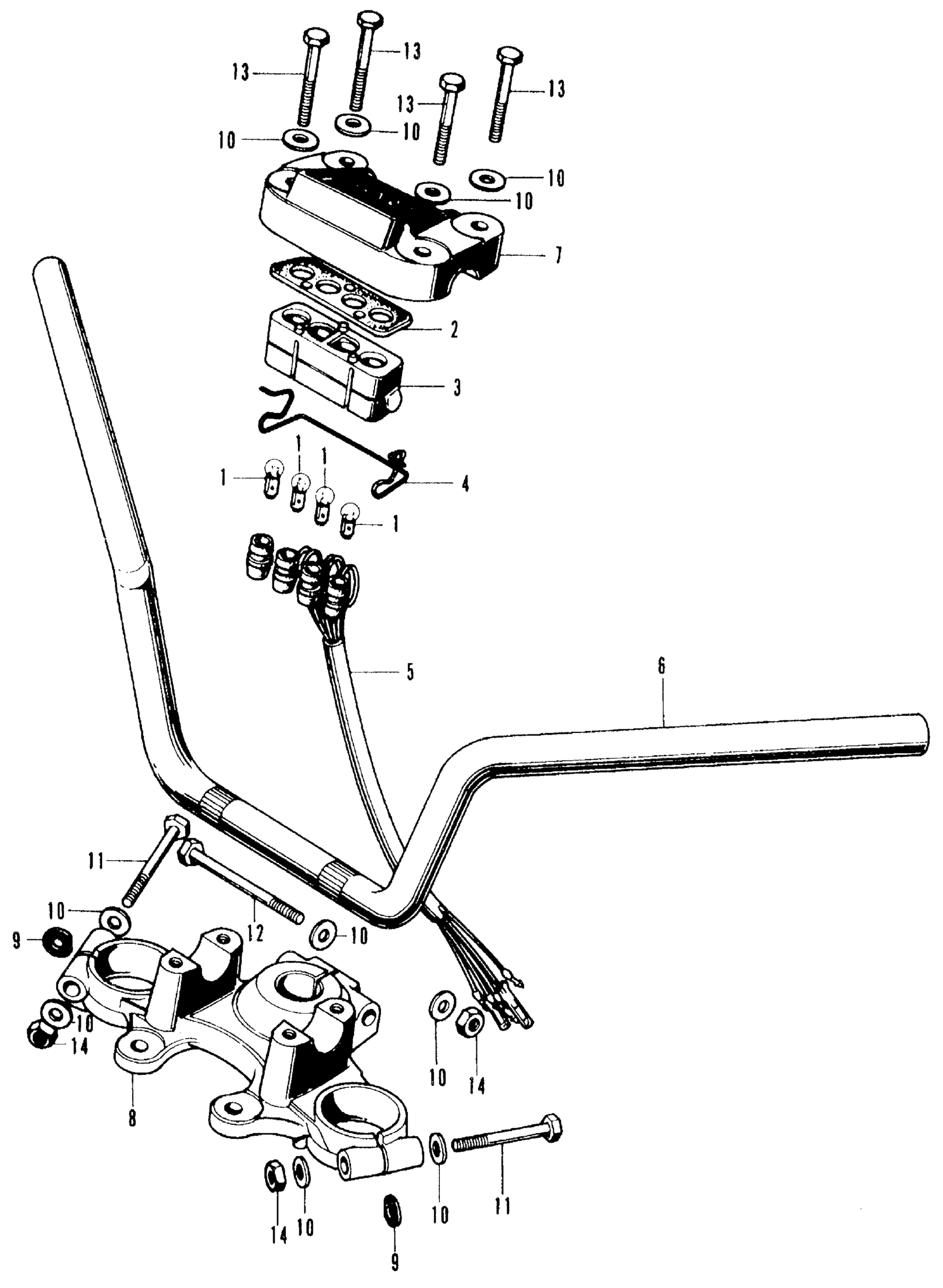

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

BASE, LAMP SOCKET (NOT AVAILABLE)

37576-323-000

Unavailable

3

SOCKET, PILOT LAMP (NOT AVAILABLE)

37577-341-000

Unavailable

4

SPRING, LAMP SOCKET SETTING (NOT AVAILABLE)

37579-341-010

Unavailable

5

WIRE, PILOT LAMP (NOT AVAILABLE)

37581-323-000

Unavailable

6

HANDLEBAR (NOT AVAILABLE)

53100-323-000

Unavailable

7

HOLDER (UPPER) (NOT AVAILABLE)

53133-323-010

Unavailable

8

BRIDGE, FORK TOP (NOT AVAILABLE) This part replaces 53230-323-010.

53230-323-305

Unavailable

8

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-323-305

Unavailable

9

SPACER, FORK TOP BRIDGE (NOT AVAILABLE)

53235-300-000

Unavailable

10

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.49

10

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.49

10

WASHER, PLAIN (8MM)

90518-921-000

$1.49

11

BOLT, HEX. (8X56) This part replaces 93000-08056-0B.

93101-08056-0B

Unavailable

12

BOLT, HEX. (8X74) This part replaces 93000-08074-0B.

93101-08074-0B

Unavailable

13

BOLT, HEX. (8X40) This part replaces 93100-08040-0B.

93101-08040-0B

$2.41

13

BOLT, HEX. (8X40)

93101-08040-0B

$2.41

14

NUT, HEX. (8MM)

94001-08020-0S

$1.49
