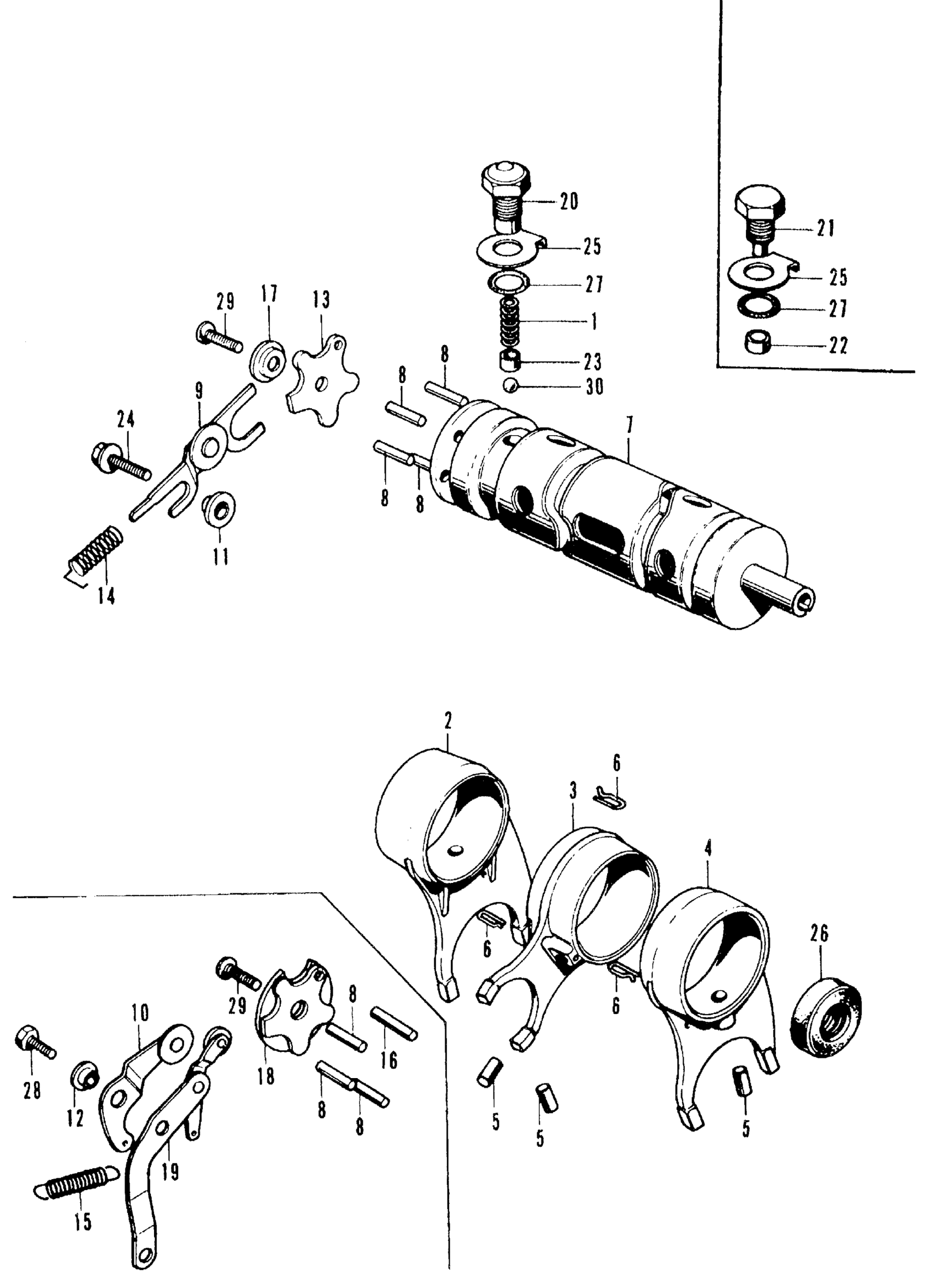

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 GEARSHIFT FORK + DRUM Diagram

#

Description
Price

2

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-323-000

Unavailable

3

FORK B, GEARSHIFT (NOT AVAILABLE)

24212-286-030

Unavailable

4

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-323-000

Unavailable

5

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

6

CLIP, GEARSHIFT FORK GUIDE

24263-286-000

Unavailable

7

DRUM, GEARSHIFT

24301-286-050

$148.57

8

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

10

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24430-323-020

Unavailable

12

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24433-323-010

Unavailable

15

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-323-020

Unavailable

16

PIN B, GEARSHIFT DRUM (NOT AVAILABLE)

24437-323-000

Unavailable

18

PLATE, CAM (NOT AVAILABLE)

24439-323-000

Unavailable

19

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24440-323-000

Unavailable

21

SCREW, SHIFT DRUM GUIDE (NOT AVAILABLE)

24446-323-000

Unavailable

22

COLLAR, SCREW GUIDE (NOT AVAILABLE)

24447-323-000

Unavailable

25

WASHER, LOCK (12MM) (NOT AVAILABLE)

90434-286-000

Unavailable

26

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

26

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

26

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

27

O-RING (11.5X2)

91304-216-000

$2.11

28

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

29

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

29

SCREW, FLAT (6X20)

93600-06020-0A

$1.49
