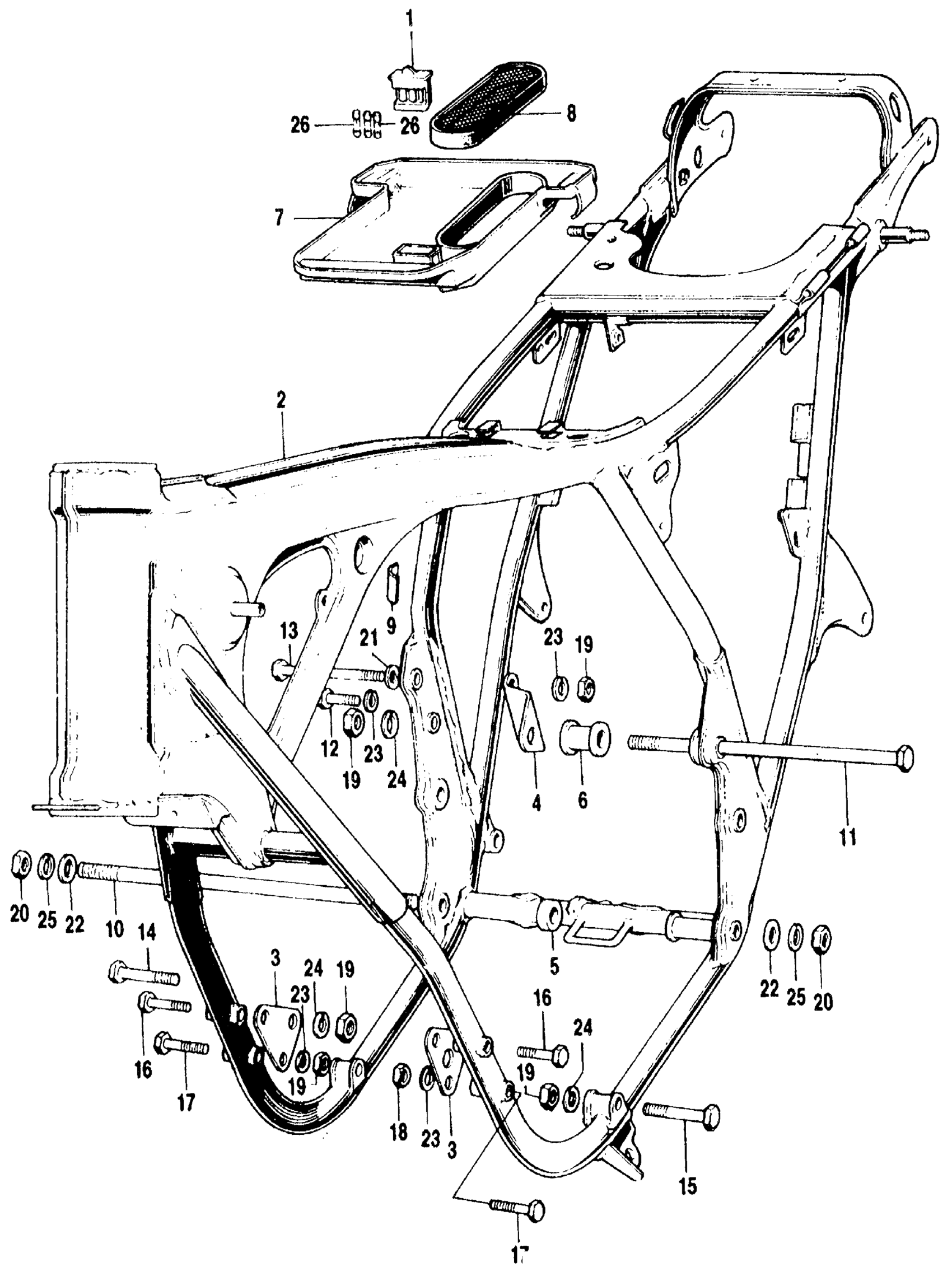

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 FRAME Diagram

#

Description
Price

1

CASE, FUSE (NOT AVAILABLE) This part replaces 38205-323-000.

38206-431-000

Unavailable

2

FRAME *NH1* (BLACK)

50100-323-674B

Unavailable

3

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-323-010B

Unavailable

4

BRACKET, RR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50356-323-010B

Unavailable

5

COLLAR, R. ENGINE SIDE (LOWER) (NOT AVAILABLE)

50357-323-010

Unavailable

6

COLLAR, L. ENGINE SIDE (UPPER) (NOT AVAILABLE)

50359-323-010

Unavailable

7

TRAY, TOOL (NOT AVAILABLE)

83501-323-020

Unavailable

8

NET, TOOL TRAY (NOT AVAILABLE)

83502-323-000

Unavailable

9

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-323-670

Unavailable

10

BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)

90107-323-000

Unavailable

11

BOLT, RR. ENGINE HANGER (UPPER) (NOT AVAILABLE)

90108-323-000

Unavailable

12

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

12

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

13

This part replaces 92000-08100-0A.

92101-08100-0A

Unavailable

14

BOLT, HEX. (10X50) (SOURCE: VINTAGE PARTS INC.)

92200-10050-0A

Unavailable

15

BOLT, HEX. (10X80)

92200-10080-0A

Unavailable

16

BOLT, HEX. (8X50) This part replaces 93000-08050-0A.

93101-08050-0A

Unavailable

17

BOLT, HEX. (8X55) (NOT AVAILABLE)

93000-08055-0A

Unavailable

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

NUT, HEX. (10MM)

94030-10000

$1.49

20

NUT, HEX. (12MM)

94030-12000

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, PLAIN (12MM)

94101-12000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

WASHER, SPRING (8MM)

94111-10000

$1.49

25

WASHER, SPRING (12MM)

94111-12000

$1.49

26

FUSE A (15A)

98200-11500

$1.49
