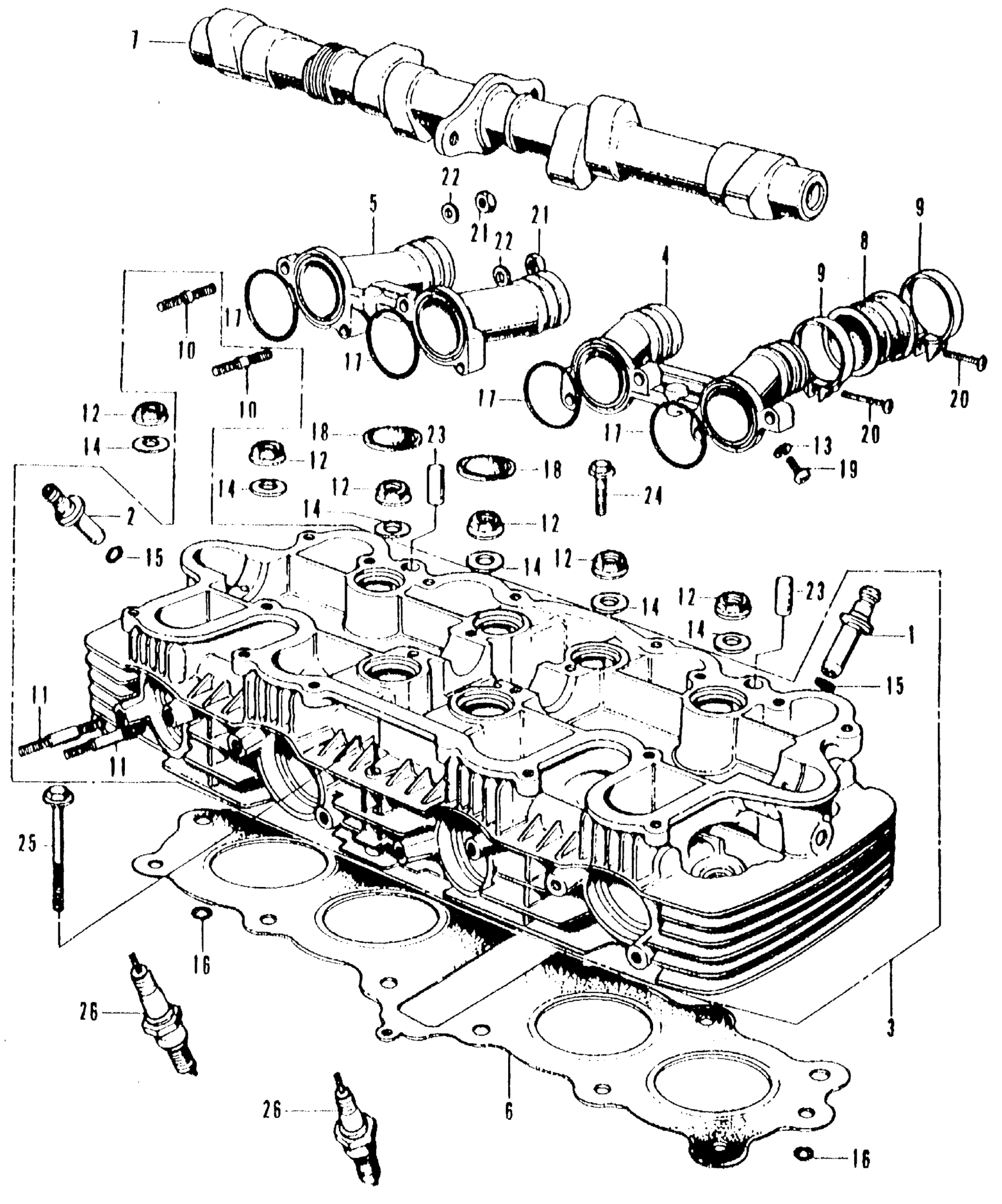

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 CYLINDER HEAD + CAMSHAFT Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-323-300.

12023-465-405

$18.90

1

GUIDE, VALVE

12023-465-405

$18.90

2

GUIDE, EX. VALVE | Use up to Engine SN 2112469 This part replaces 12023-324-300.

12023-324-405

Unavailable

2

GUIDE, EX. VALVE | Use up to Engine SN 2112469

12023-324-405

Unavailable

3

CYLINDER HEAD | Use up to Engine SN 2112469 This part replaces 12200-323-000.

12200-374-000

Unavailable

3

CYLINDER HEAD | Use up to Engine SN 2112469 This part replaces 12200-323-010.

12200-374-000

Unavailable

3

CYLINDER HEAD | Use up to Engine SN 2139865 This part replaces 12200-323-010.

12200-374-000

Unavailable

3

CYLINDER HEAD | Use up to Engine SN 2112469

12200-374-000

Unavailable

3

CYLINDER HEAD | Use up to Engine SN 2139865

12200-374-000

Unavailable

4

MANIFOLD A, IN. (NOT AVAILABLE)

12241-323-000

Unavailable

5

MANIFOLD B, IN. (NOT AVAILABLE)

12242-323-000

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-323-005.

12251-374-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-323-010.

12251-374-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-374-000.

12251-374-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-374-005.

12251-374-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-374-306

Unavailable

7

CAMSHAFT (NOT AVAILABLE)

14101-323-000

Unavailable

8

INSULATOR, CARBURETOR

16211-323-000

$15.27

9

BAND, AIR CLEANER CONNECTING TUBE (44) This part replaces 17256-323-000.

95018-44250

$5.90

9

BAND, AIR CLEANER CONNECTING TUBE (44) This part replaces 90652-GHB-650.

95018-44250

$5.90

9

BAND, AIR CLEANER CONNECTING TUBE (44)

95018-44250

$5.90

10

BOLT, STUD (6X32) (NOT AVAILABLE)

90043-323-300

Unavailable

11

BOLT, STUD (6X40)

90044-323-300

$3.13

12

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

12

NUT, FLANGE (8MM)

94050-08000

$1.49

12

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

13

WASHER, SEALING (5MM)

90452-323-000

$1.59

14

WASHER, THRUST (14MM)

90485-035-000

$2.92

15

O-RING (10X1.6)

91301-200-000

$3.01

16

O-RING (4.9X2.5) This part replaces 91301-323-000.

91301-426-010

$3.60

16

O-RING (4.9X2.5) This part replaces 91301-426-000.

91301-426-010

$3.60

16

O-RING (4.9X2.5)

91301-426-010

$3.60

17

O-RING (30.8MM)

91302-001-020

$3.75

18

RUBBER, SEALING

91318-300-013

$4.85

19

SCREW, PAN (5X6)

93500-05006-0A

$1.49

20

SCREW, PAN (5X20)

93500-05020-0A

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

PIN B, DOWEL (10X16)

94302-10160

$1.69

24

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

24

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

25

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

25

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

26

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57711.

98069-57717

$2.44

26

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.44

26

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57723.

98069-57717

$2.44
