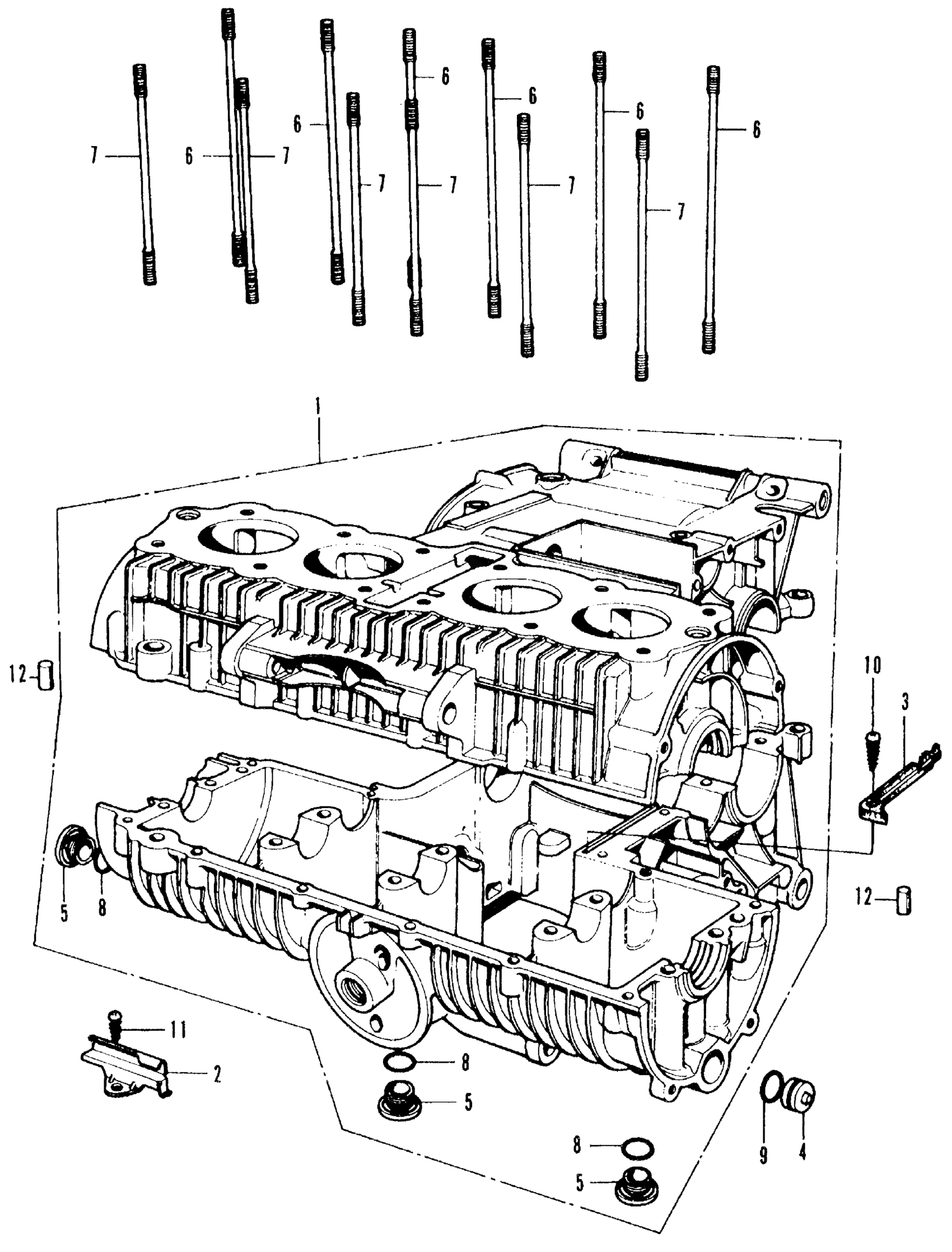

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-323-000

Unavailable

2

GUIDE A, OIL (NOT AVAILABLE)

11202-323-000

Unavailable

3

GUIDE B, OIL (NOT AVAILABLE)

11203-323-010

Unavailable

4

PLUG, OIL PASSAGE (NOT AVAILABLE)

11207-323-000

Unavailable

5

CAP, OIL PASSAGE

15331-300-000

Unavailable

6

BOLT A, CYLINDER STUD

90033-323-000

Unavailable

7

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-323-000

Unavailable

8

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.20

8

O-RING (19.4X2.8)

94608-40000

$1.20

9

O-RING (13X2.5)

91319-300-000

$4.71

10

SCREW, TAPPING (5X16)

93901-25310

$0.70

11

SCREW, TAPPING (6X12)

93901-26110

$1.04

12

PIN B, DOWEL (10X16)

94302-10160

$1.61
