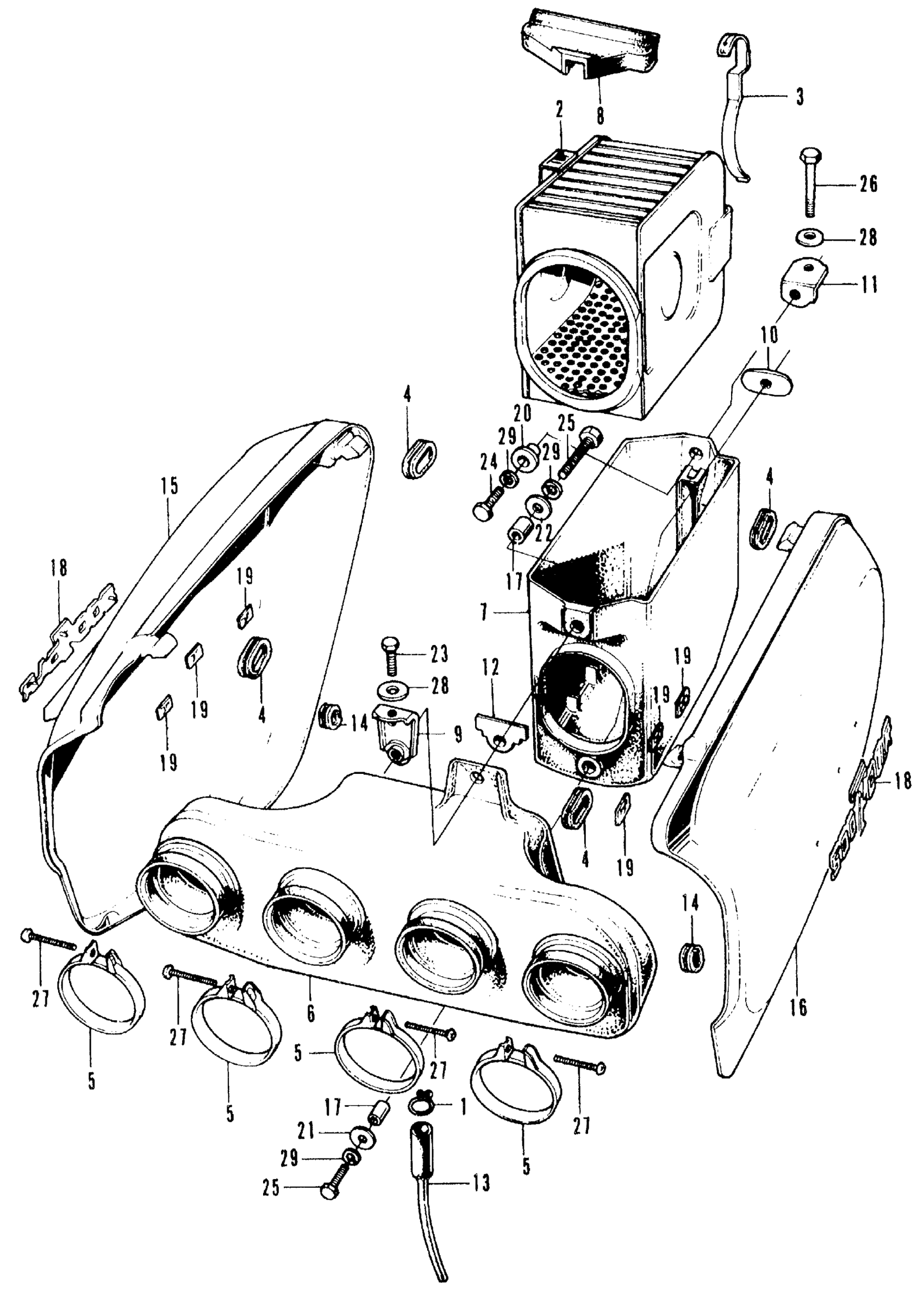

Honda CB500K1A MOTORCYCLE, JPN, VIN# CB500-2000001 AIR CLEANER + SIDE COVER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ELEMENT, AIR CLEANER

17210-323-030

Unavailable

3

SPRING, AIR CLEANER ELEMENT (NOT AVAILABLE)

17216-323-020

Unavailable

4

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

5

BAND A, AIR CLEANER CONNECTING TUBE

17255-323-000

$7.30

6

CHAMBER, AIR CLEANER *NH1* (BLACK) This part replaces 17310-323-000B.

17310-323-010B

Unavailable

6

CHAMBER, AIR CLEANER *NH1* (BLACK)

17310-323-010B

Unavailable

7

HOUSING, AIR CLEANER ELEMENT SEAL (NOT AVAILABLE)

17313-323-040

Unavailable

8

COVER, AIR CLEANER (NOT AVAILABLE)

17315-323-000

Unavailable

9

STAY, AIR CLEANER (NOT AVAILABLE)

17317-323-010

Unavailable

10

WASHER, ELEMENT SETTING (NOT AVAILABLE)

17318-323-000

Unavailable

11

STAY, RR. AIR CLEANER (NOT AVAILABLE)

17319-323-000

Unavailable

12

PLATE, AIR CLEANER (NOT AVAILABLE)

17331-323-000

Unavailable

13

TUBE ASSY., BREATHER

17335-323-000

Unavailable

14

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

15

COVER, R. SIDE *YR2C* (CANDY GARNET BROWN) (NOT AVAILABLE)

83600-323-020EE

Unavailable

15

COVER, R. SIDE *G1C* (CANDY GREEN) (NOT AVAILABLE)

83600-323-020KB

Unavailable

15

COVER, R. SIDE *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

83600-323-020LX

Unavailable

16

COVER, L. SIDE *YR2C* (CANDY GARNET BROWN) (NOT AVAILABLE)

83700-323-020EE

Unavailable

16

COVER, L. SIDE *G1C* (CANDY GREEN) (NOT AVAILABLE)

83700-323-020KB

Unavailable

16

COVER, L. SIDE *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

83700-323-020LX

Unavailable

17

COLLAR, RR. FENDER

84705-310-000

$1.72

18

EMBLEM, SIDE COVER

87124-323-000

Unavailable

19

NUT, SPEED (3MM)

90315-504-000

$3.21

20

WASHER (6X20)

90512-300-000

$3.08

21

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

21

WASHER (18MM)

90581-831-650

$1.87

22

WASHER (6MM) (SOURCE: VINTAGE PARTS INC.) | Use up to Frame SN 2034711

90601-579-000

Unavailable

22

WASHER, PLAIN (6MM) | Use from Frame SN 2034712 This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) | Use from Frame SN 2034712 This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) | Use from Frame SN 2034712

94101-06800

$1.49

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

25

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

26

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

26

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

26

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

27

SCREW, PAN (4X20)

93500-04020-0A

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49
