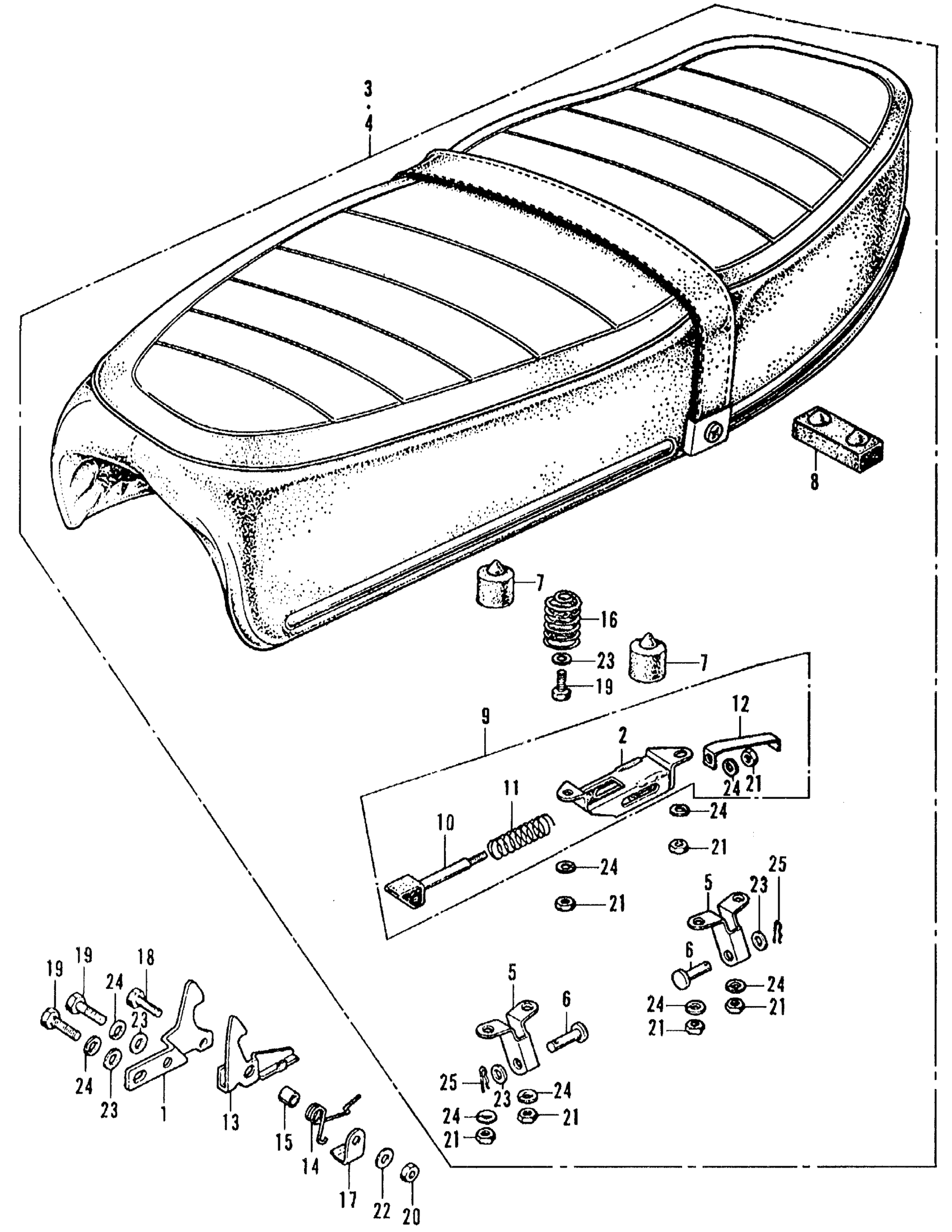

Honda CB350K3A MOTORCYCLE, JPN, VIN# CB350-3000001 SEAT K3 Diagram

#

Description
Price

1

HOOK, SEAT CATCH (NOT AVAILABLE)

50225-317-010

Unavailable

2

PLATE, SEAT CATCH

77131-317-670

Unavailable

3

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77200-317-670A

Unavailable

4

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77200-318-670A

Unavailable

5

HINGE, SEAT (NOT AVAILABLE)

77201-317-670

Unavailable

6

PIN, SEAT HINGE (NOT AVAILABLE)

77203-317-670

Unavailable

7

RUBBER A, SEAT SETTING

77204-286-020

$10.02

8

RUBBER B, SEAT SETTING

77205-286-000

$5.28

9

CATCH, SEAT

77230-317-670

Unavailable

10

SLIDER, SEAT CATCH (NOT AVAILABLE)

77231-317-670

Unavailable

11

SPRING, SEAT CATCH (NOT AVAILABLE)

77232-300-000

Unavailable

12

LEVER, SEAT CATCH

77233-317-670

Unavailable

13

HOOK, SEAT CATCH SAFETY (NOT AVAILABLE)

77241-317-671

Unavailable

14

SPRING, SEAT CATCH SAFETY HOOK (NOT AVAILABLE)

77242-317-670

Unavailable

15

COLLAR, SEAT SAFETY HOOK (NOT AVAILABLE)

77243-300-000

Unavailable

16

SPRING, SEAT LIFT (NOT AVAILABLE)

77244-300-000

Unavailable

17

STOPPER, SEAT SPRING SAFETY (NOT AVAILABLE)

77245-317-670

Unavailable

18

BOLT, HEX. (5X18) This part replaces 92000-05018-0A.

92101-05018-0A

$1.49

18

BOLT, HEX. (5X18)

92101-05018-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

NUT, HEX. (5MM)

94001-05000-0S

$2.74

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (5MM)

94101-05000

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

PIN, LOCK (6MM)

94251-06000

$1.49
