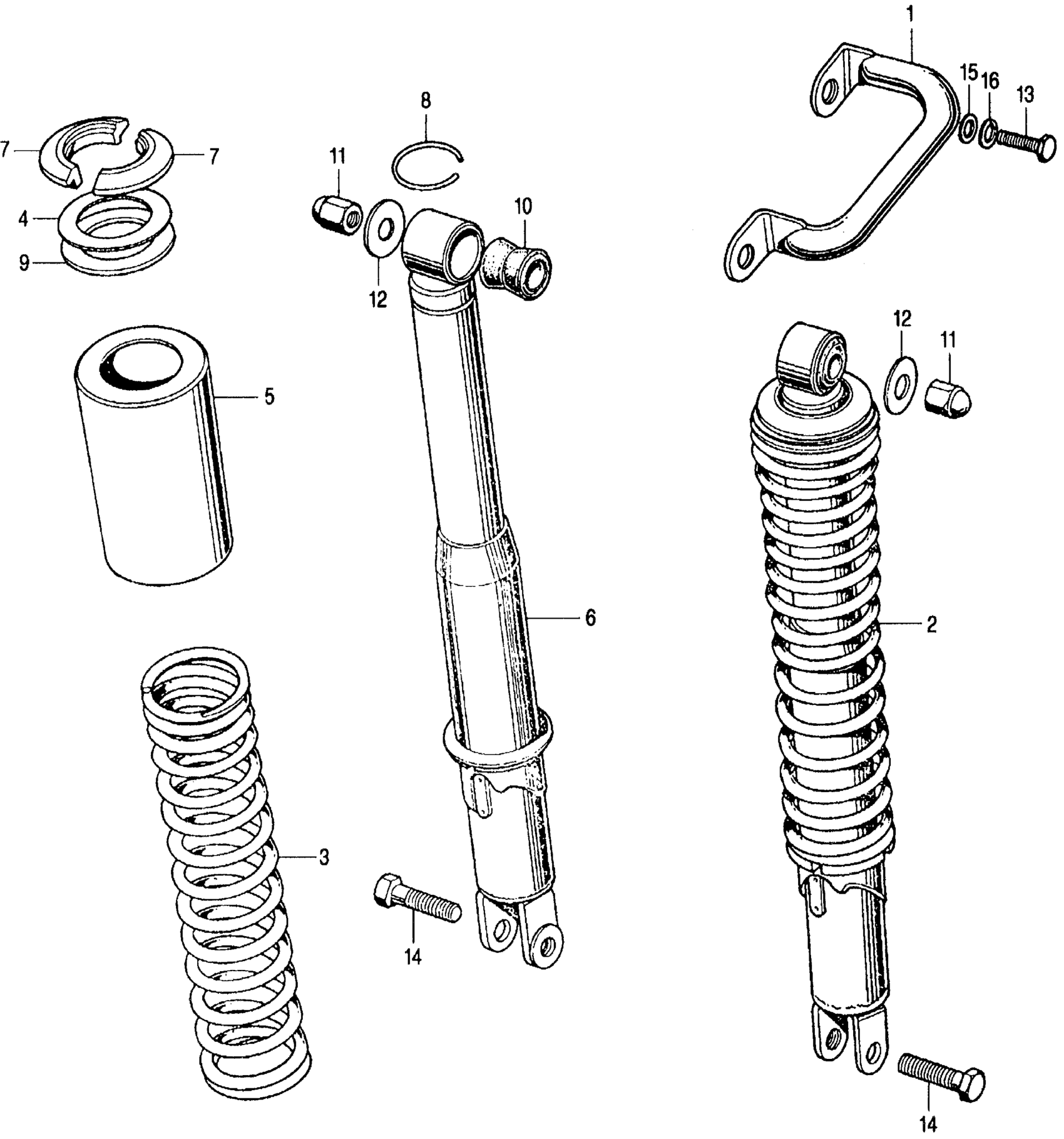

Honda CB350K3A MOTORCYCLE, JPN, VIN# CB350-3000001 REAR SHOCK ABSORBER K2-K3 Diagram

#

Description
Price

1

GRIP, SIDE (NOT AVAILABLE)

50316-317-670

Unavailable

2

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52400-317-670XW

Unavailable

3

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-286-670

Unavailable

4

WASHER, SPRING (NOT AVAILABLE)

52409-313-000

Unavailable

5

CASE, SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING)

52421-292-670XW

Unavailable

6

DAMPER ASSY., RR. (NOT AVAILABLE)

52410-317-670

Unavailable

7

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-292-000

Unavailable

8

STOPPER (NOT AVAILABLE)

52446-074-003

Unavailable

9

SEAT, RR. SHOCK ABSORBER SPRING (UPPER) (SHOWA) (NOT AVAILABLE)

52459-074-003

Unavailable

10

RUBBER, JOINT

52484-292-000

$5.87

11

NUT, FLANGE (10MM)

90309-315-000

$5.35

12

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

13

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

13

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

13

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

13

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

14

BOLT, HEX. (10X32) This part replaces 93000-10032-0B.

93101-10032-0B

$2.92

14

BOLT, HEX. (10X32)

93101-10032-0B

$2.92

15

WASHER, PLAIN (8MM)

94101-08000

$1.49
