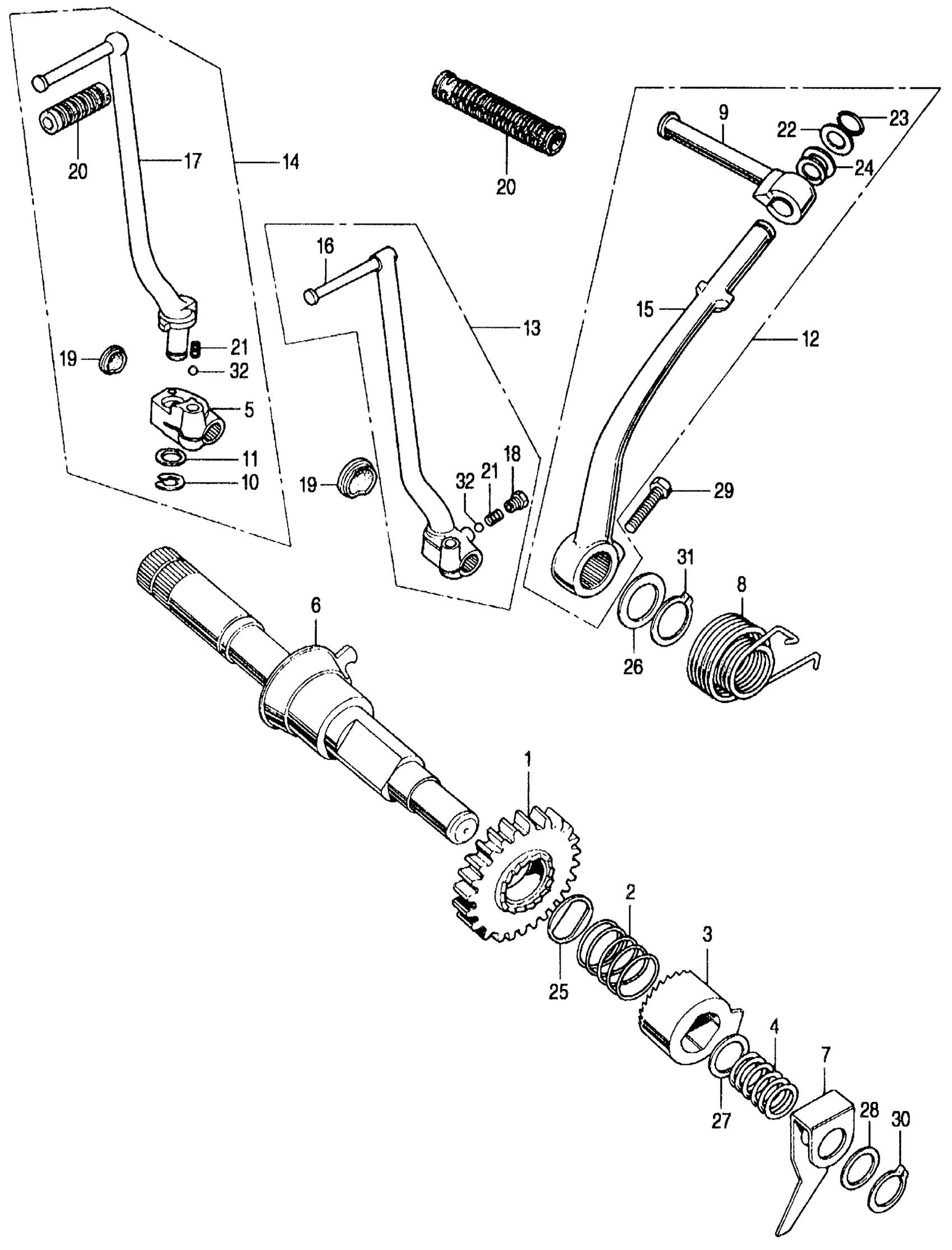

Honda CB350K3A MOTORCYCLE, JPN, VIN# CB350-3000001 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (NOT AVAILABLE)

28211-310-010

Unavailable

2

SPRING, STARTER PINION SETTING (NOT AVAILABLE)

28215-216-000

Unavailable

3

RATCHET, KICK STARTER (NOT AVAILABLE) This part replaces 28221-310-010.

28221-310-020

Unavailable

3

RATCHET, KICK STARTER (NOT AVAILABLE)

28221-310-020

Unavailable

4

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-216-000

Unavailable

6

SPINDLE, KICK STARTER

28251-310-010

Unavailable

7

PLATE, RATCHET GUIDE (NOT AVAILABLE)

28258-310-010

Unavailable

8

SPRING, KICK STARTER (NOT AVAILABLE)

28261-323-000

Unavailable

9

PEDAL, KICK STARTER (NOT AVAILABLE)

28263-286-000

Unavailable

13

ARM ASSY., KICK STARTER (NOT AVAILABLE) This part replaces 28300-310-000.

28300-344-010

Unavailable

13

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-344-010

Unavailable

16

ARM, KICK STARTER

28301-310-305

Unavailable

18

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

19

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

20

RUBBER B, KICK STARTER This part replaces 28307-254-000.

95011-52000

$4.12

20

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

20

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

20

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

20

RUBBER B, KICK STARTER

95011-52000

$4.12

21

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

25

WASHER, THRUST (20MM) (NOT AVAILABLE)

90451-216-000

Unavailable

26

WASHER (18MM)

90451-357-000

Unavailable

26

WASHER (18MM) This part replaces 90453-286-003.

90451-357-000

Unavailable

27

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

27

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

30

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

31

CIRCLIP (OUTER) (18MM)

94510-18000

$1.49

32

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
