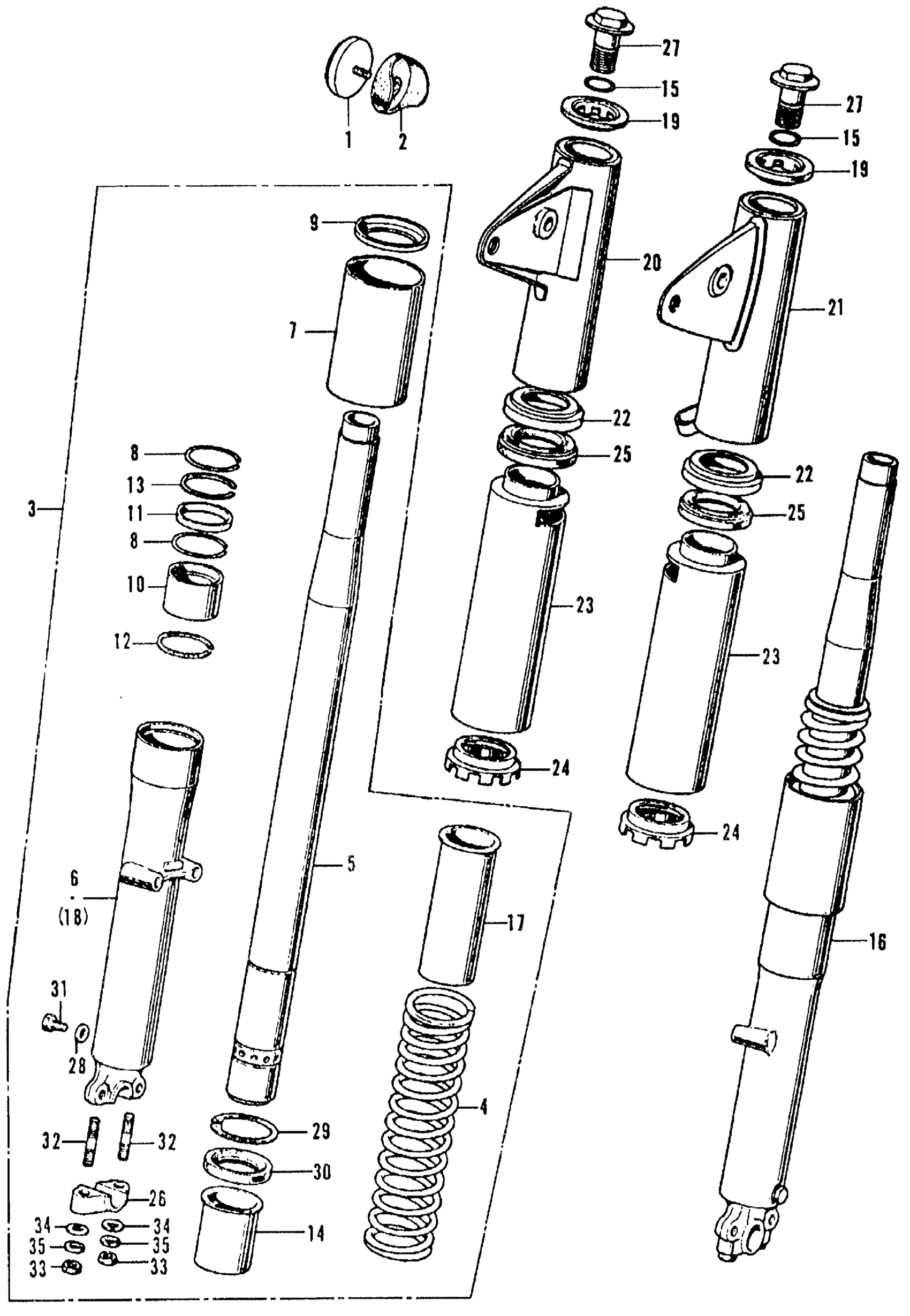

Honda CB350K3A MOTORCYCLE, JPN, VIN# CB350-3000001 CB FRONT FORK K3 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

2

BASE, FR. REFLEX REFLECTOR This part replaces 33743-286-670.

33743-341-670

Unavailable

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

FORK ASSY., R. FR.

51400-317-670

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-286-010

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-286-020

Unavailable

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-286-020

Unavailable

7

COVER, CASE (LOWER) (NOT AVAILABLE)

51423-286-000

Unavailable

8

RING, PISTON STOPPER (NOT AVAILABLE)

51424-283-000

Unavailable

9

GUIDE, SPRING (LOWER) (NOT AVAILABLE)

51427-286-000

Unavailable

10

PISTON, FR. FORK

51442-286-300

Unavailable

11

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-268-020

Unavailable

12

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-268-000

Unavailable

13

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-268-000

Unavailable

14

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-298-690

Unavailable

15

O-RING (11X3) (NOT AVAILABLE)

51493-292-780

Unavailable

16

FORK ASSY., L. FR.

51500-317-670

Unavailable

17

GUIDE, SPRING (NOT AVAILABLE)

51509-286-000

Unavailable

18

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-286-020

Unavailable

19

RUBBER, FORK COVER (UPPER)

51601-292-010

Unavailable

20

COVER, R. FR. FORK (NOT AVAILABLE)

51602-317-671Z

Unavailable

21

COVER, L. FR. FORK

51606-317-671Z

Unavailable

22

RIB, FR. FORK (NOT AVAILABLE)

51608-286-010

Unavailable

23

COVER, R. FR. FORK (LOWER) This part replaces 51611-286-010FC.

51611-286-010Z

Unavailable

23

COVER, R. FR. FORK (LOWER) This part replaces 51611-286-010HX.

51611-286-010Z

Unavailable

23

COVER, R. FR. FORK (LOWER)

51611-286-010Z

Unavailable

24

GUIDE, FR. FORK COVER (LOWER) (NOT AVAILABLE)

51619-286-000

Unavailable

25

RUBBER B, FR. FORK COVER (NOT AVAILABLE)

51622-286-010

Unavailable

26

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

27

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-780

Unavailable

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

29

CIRCLIP (OUTER) (44MM) (NOT AVAILABLE)

90601-286-000

$13.57

30

OIL SEAL (33X44X9)

91255-286-003

$10.42

31

BOLT, HEX. (6X8) This part replaces 92000-06008-02.

92101-06008-0B

$1.84

31

BOLT, HEX. (6X8) This part replaces 92100-06008-0B.

92101-06008-0B

$1.84

31

BOLT, HEX. (6X8)

92101-06008-0B

$1.84

32

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

32

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

32

BOLT, STUD (8X50)

92900-08028-3B

$1.59

33

NUT, HEX. (8MM)

94030-08000

$1.49

34

WASHER, PLAIN (8MM)

94101-08000

$1.49

35

WASHER, SPRING (8MM)

94111-08000

$1.49
