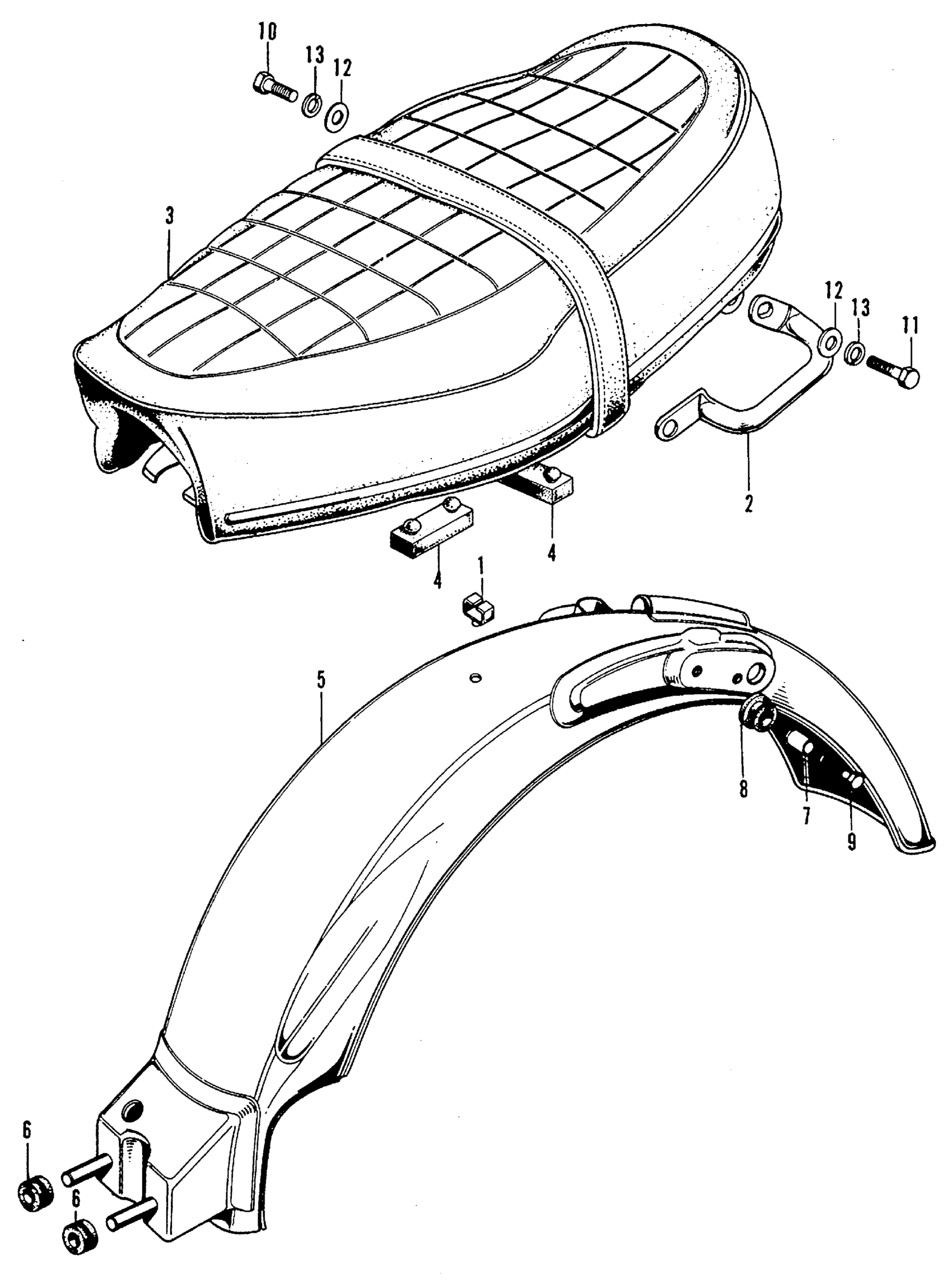

Honda CB125S1A MOTORCYCLE, JPN, VIN# CB125S-1100001 SEAT + REAR FENDER Diagram

GROMMET, CABLE

32985-107-780

Unavailable

GRIP, SIDE (NOT AVAILABLE)

50316-107-780

Unavailable

SEAT ASSY. *NH1L* This part replaces 77200-324-700A.

77200-324-700ZA

Unavailable

RUBBER B, SEAT SETTING

77205-286-000

$5.28

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

80100-107-782XW

Unavailable

RUBBER B, RR. FENDER (NOT AVAILABLE)

80106-028-010

Unavailable

COLLAR A, RR. FENDER (NOT AVAILABLE)

80108-028-000

$2.05

RUBBER A, RR. FENDER (NOT AVAILABLE)

80110-107-780

Unavailable

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
