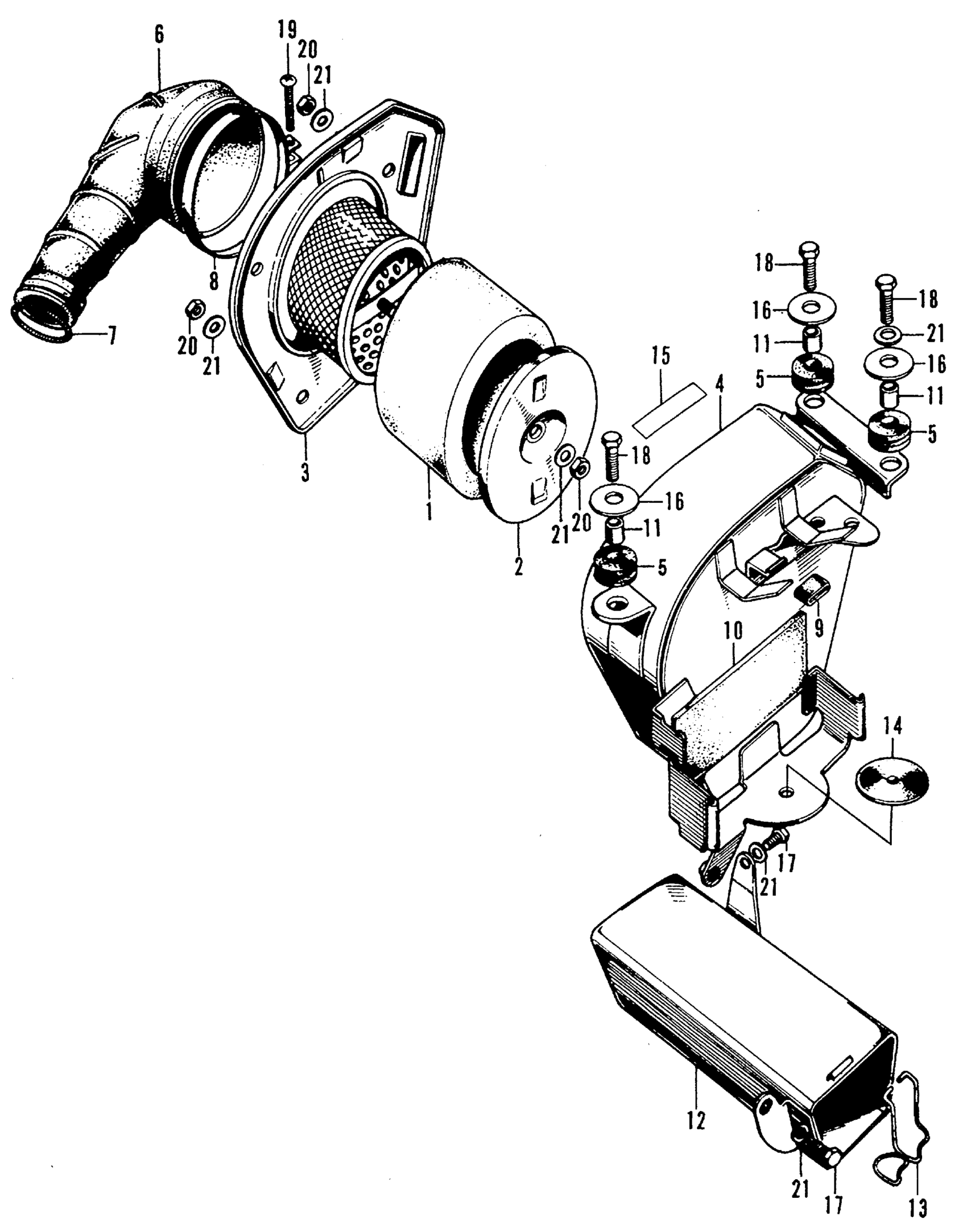

Honda CB125S1A MOTORCYCLE, JPN, VIN# CB125S-1100001 AIR CLEANER + TOOL BOX Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-107-020

$6.78

2

CAP, AIR CLEANER ELEMENT

17212-107-780

Unavailable

3

COVER ASSY., AIR CLEANER HOUSING (NOT AVAILABLE)

17228-107-780

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-107-710

Unavailable

5

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

6

TUBE, AIR CLEANER CONNECTING This part replaces 17253-107-780.

17253-107-782

Unavailable

6

TUBE, AIR CLEANER CONNECTING This part replaces 17253-107-781.

17253-107-782

Unavailable

6

TUBE, AIR CLEANER CONNECTING

17253-107-782

Unavailable

7

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

7

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

8

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

9

RUBBER B, BATTERY SETTING

31503-044-670

$2.56

10

RUBBER, BATTERY CUSHION

31511-107-300

$4.69

11

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

12

BOX, TOOL (NOT AVAILABLE)

83500-107-040

Unavailable

13

SPRING, TOOL BOX CAP (NOT AVAILABLE)

83510-107-000

Unavailable

14

RUBBER C, BATTERY DISTANCE

83618-307-000

$2.85

15

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

16

WASHER, WHEEL (6MM)

90563-706-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

18

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

19

SCREW, PAN (4X25)

93500-04025-0A

$1.93

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49
