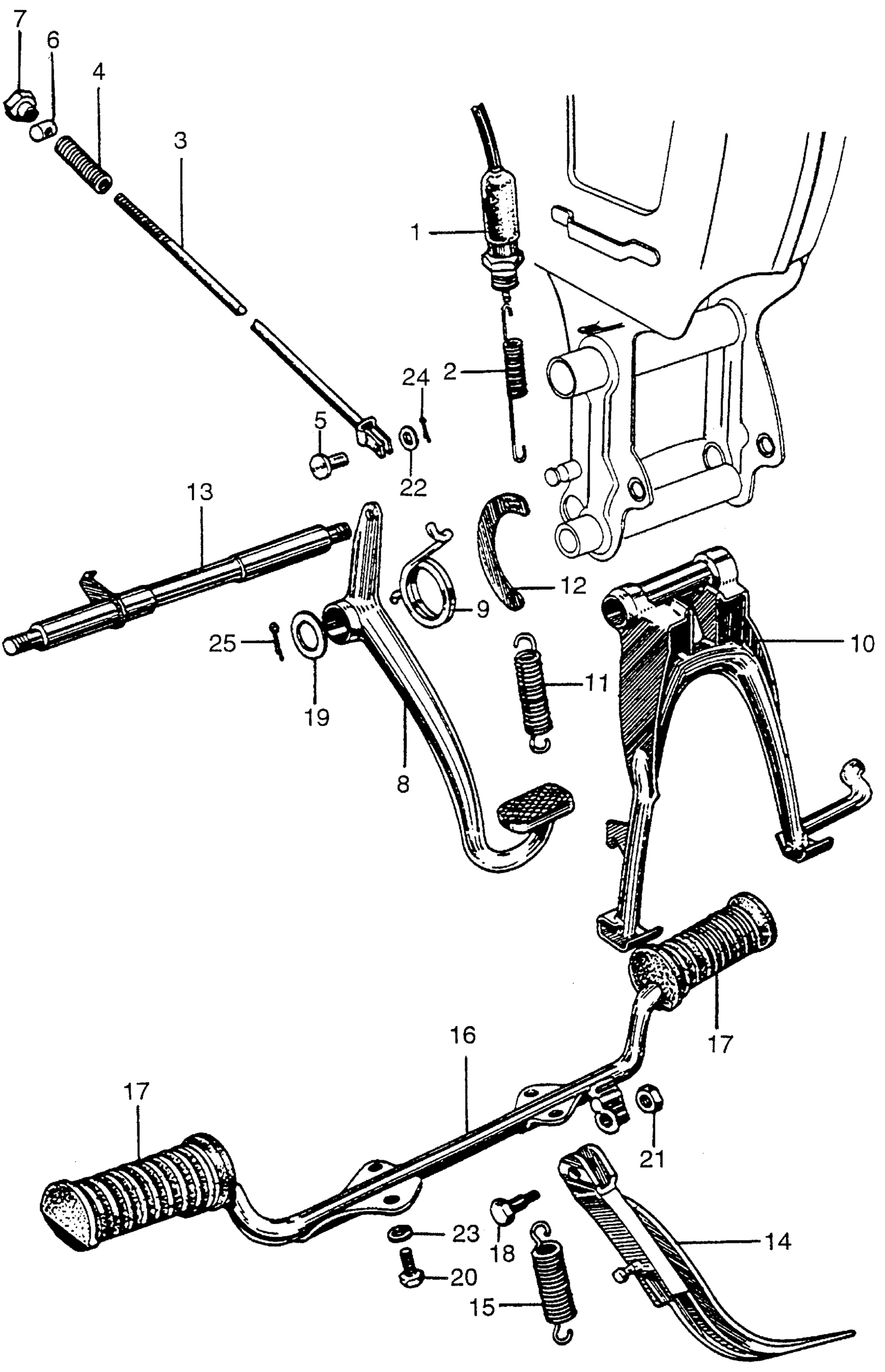

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 STAND + STEP Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

2

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-230-000

Unavailable

3

ROD, RR. BRAKE (NOT AVAILABLE)

43451-235-000

Unavailable

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

PIN A, BRAKE ROD JOINT This part replaces 43472-250-000.

95015-51000

Unavailable

5

PIN A, BRAKE ROD JOINT

95015-51000

Unavailable

6

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM

95015-31001

$1.53

7

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-237-680

Unavailable

9

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-230-000

Unavailable

10

STAND, MAIN *NH1* (BLACK)

50500-230-030B

Unavailable

11

SPRING, MAIN STAND This part replaces 50522-028-010.

95014-71202

$2.84

11

SPRING, MAIN STAND

95014-71202

$2.84

12

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-205-000

Unavailable

13

SHAFT, MAIN STAND PIVOT

50526-230-000

Unavailable

14

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-230-000.

50530-230-305

Unavailable

14

BAR, SIDE STAND (NOT AVAILABLE)

50530-230-305

Unavailable

15

SPRING, SIDE STAND This part replaces 50542-200-000.

95014-72204

$3.01

15

SPRING, SIDE STAND This part replaces 95014-72200.

95014-72204

$3.01

15

SPRING, SIDE STAND This part replaces 95014-72201.

95014-72204

$3.01

15

SPRING, SIDE STAND This part replaces 95014-72203.

95014-72204

$3.01

15

SPRING, SIDE STAND

95014-72204

$3.01

16

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-237-680B

Unavailable

17

RUBBER, STEP (NOT AVAILABLE)

50661-230-000

Unavailable

18

BOLT, SIDE STAND PIVOT (NOT AVAILABLE) | Use up to Frame SN 1021493

90108-200-000

Unavailable

18

SCREW, SIDE STAND PIVOT | Use from Frame SN 1021494

90108-230-000

Unavailable

19

WASHER (19MM) (NOT AVAILABLE)

90512-283-000

Unavailable

20

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.79

20

BOLT, HEX. (8X25) | Use up to Frame SN 1021493 This part replaces 92000-08025-02.

92101-08025-0B

$1.79

20

BOLT, HEX. (8X25)

92101-08025-0B

$1.79

21

NUT, HEX. (10MM) | Use up to Frame SN 1021493 This part replaces 94002-10000.

94002-10000-0S

$4.06

21

NUT, HEX. (10MM) | Use up to Frame SN 1021493

94002-10000-0S

$4.06

21

NUT, HEX. (10MM)

94002-10000-0S

$4.06

21

NUT, HEX. (10MM) | Use up to Frame SN 1021493 This part replaces 94002-10000-08.

94002-10000-0S

$4.06

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

PIN, COTTER (2.0X15)

94201-20150

$1.49

25

PIN, COTTER (3.0X15)

94201-30150

$0.61
