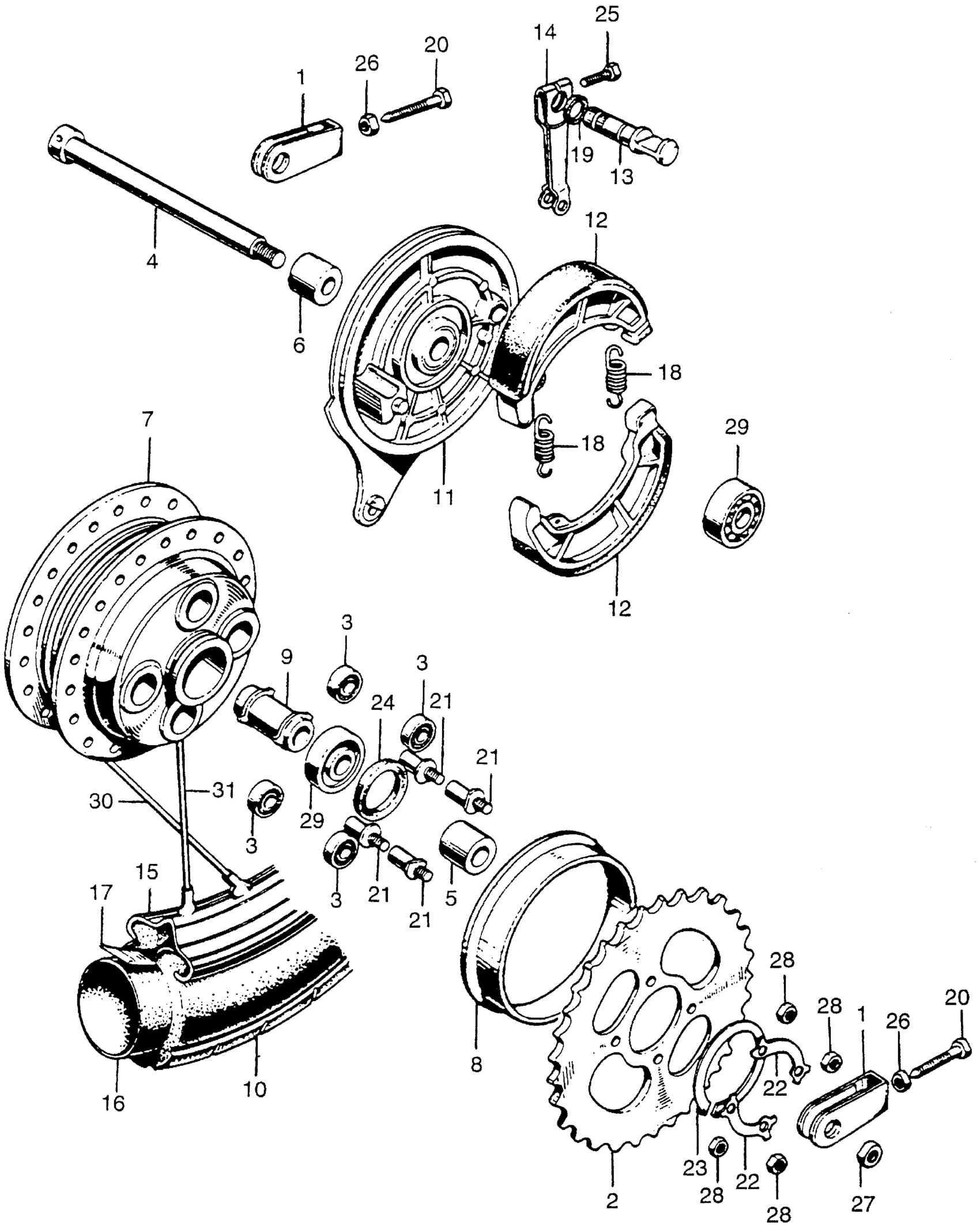

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN

40543-230-010

Unavailable

2

SPROCKET, FINAL DRIVEN (42T) (NOT AVAILABLE)

41201-240-509

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-222-000

$16.64

3

BUSH, RR. WHEEL DAMPER This part replaces 41241-307-000.

41241-222-000

$16.64

4

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-230-000

Unavailable

5

COLLAR, RR. SIDE WHEEL (NOT AVAILABLE)

42304-230-000

Unavailable

6

COLLAR, RR. SIDE WHEEL (NOT AVAILABLE)

42313-230-020

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-240-010

Unavailable

8

DUST SEAL, RR. WHEEL (NOT AVAILABLE)

42602-230-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-230-010

Unavailable

10

TIRE, RR. WHEEL (3.00-16) (NITTO) (NOT AVAILABLE)

42711-230-000

Unavailable

11

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-230-030

Unavailable

12

SHOE, RR. BRAKE (NOT AVAILABLE)

43120-230-000

Unavailable

13

CAM, RR. BRAKE | Use up to Frame SN 1017611

43141-230-010

Unavailable

13

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1017612

43141-230-020

Unavailable

14

ARM, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1017611

43410-230-010

Unavailable

14

ARM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1017612 This part replaces 43410-230-020.

43410-235-010

Unavailable

15

RIM, WHEEL (NOT AVAILABLE)

44701-230-000

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 0Y400-41900.

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 08400-41900.

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 42712-167-003.

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC)

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 44712-200-000.

42712-167-005

Unavailable

17

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.54

17

FLAP, TIRE (17) (INOUE) This part replaces 44713-200-000.

42713-102-005

$6.54

18

SPRING, FR. BRAKE SHOE This part replaces 45133-230-000.

45133-303-000

Unavailable

18

SPRING, FR. BRAKE SHOE

45133-303-000

Unavailable

19

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

20

BOLT, CHAIN ADJUSTER (NOT AVAILABLE)

90119-205-000

Unavailable

21

BOLT, DRIVEN SPROCKET FIXING

90128-216-000

$5.66

22

WASHER A3, TONGUED This part replaces 90522-222-000.

94108-13000

$1.49

22

WASHER A3, TONGUED This part replaces 90523-222-000.

94108-13000

$1.49

22

WASHER A3, TONGUED

94108-13000

$1.49

23

CIRCLIP (58MM)

90664-216-000

$5.55

24

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

24

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

25

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

25

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (14MM) | Use up to Frame SN 1021493 This part replaces 94001-14000.

94001-14000-0S

$1.98

27

NUT, HEX. (14MM) | Use up to Frame SN 1021493

94001-14000-0S

$1.98

27

NUT, HEX. (14MM) | Use from Frame SN 1021494

94001-14020-0S

Unavailable

28

NUT, HEX. (8MM)

94030-08000

$1.49

29

BEARING, RADIAL BALL (6302Z) (SOURCE: VINTAGE PARTS INC.)

96120-63020

Unavailable

30

SPOKE B (9X141.5) (NOT AVAILABLE)

97479-52123-1

Unavailable

31

SPOKE B (9X141) (NOT AVAILABLE)

97600-52122-1

Unavailable
