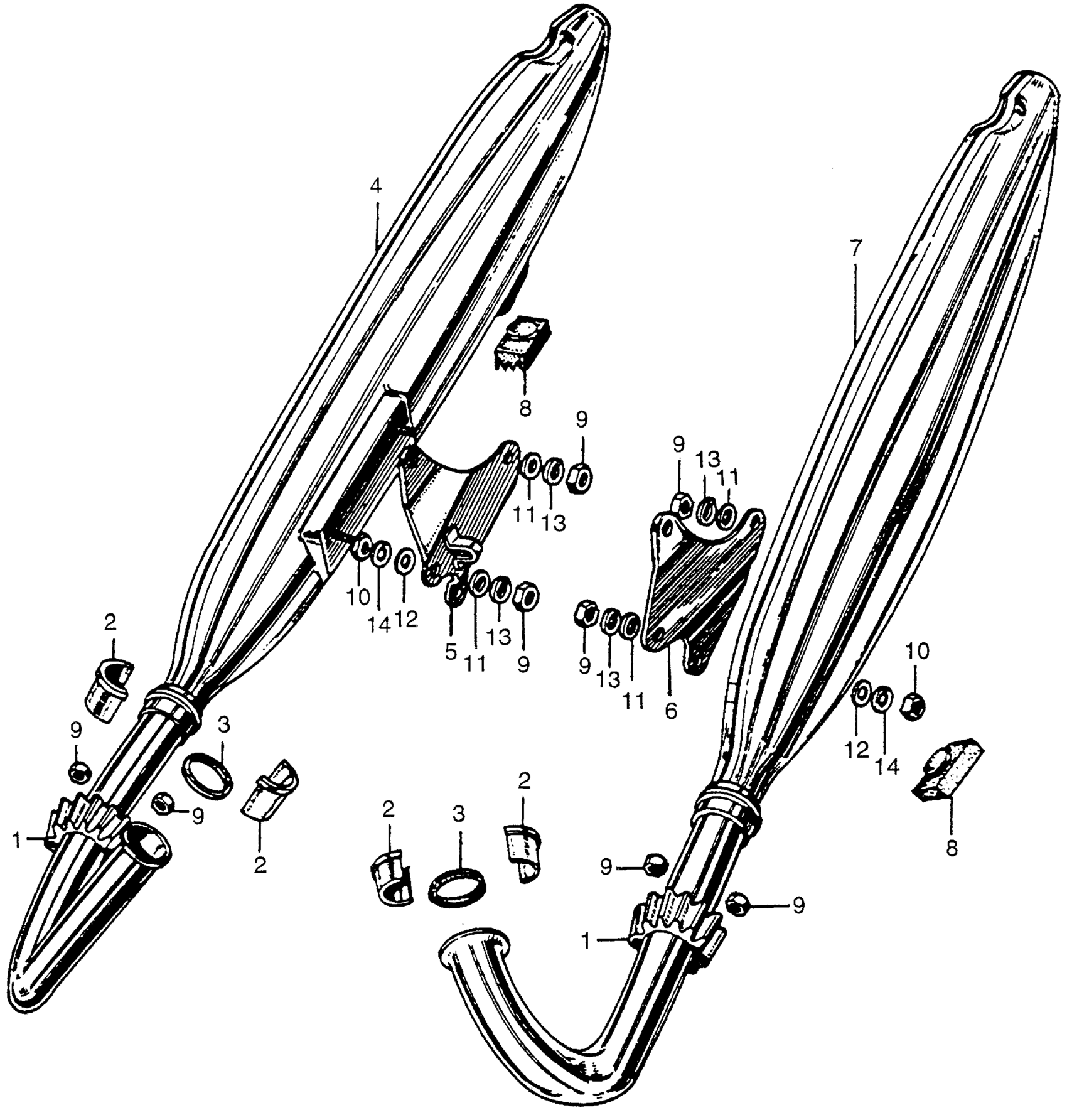

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 MUFFLER Diagram

JOINT, EX. PIPE (NOT AVAILABLE)

18231-236-000

Unavailable

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-236-000

Unavailable

GASKET, EX. PIPE

18291-MN4-920

$5.31

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

MUFFLER, R. (NOT AVAILABLE) This part replaces 18300-237-680.

18300-237-687

Unavailable

MUFFLER, R. (NOT AVAILABLE)

18300-237-687

Unavailable

BRACKET, R. MUFFLER (NOT AVAILABLE)

18353-237-680Z

Unavailable

BRACKET, L. MUFFLER (NOT AVAILABLE)

18354-237-680Z

Unavailable

MUFFLER, L. (NOT AVAILABLE) This part replaces 18400-237-680.

18400-237-687

Unavailable

MUFFLER, L. (NOT AVAILABLE)

18400-237-687

Unavailable

RUBBER A, STAND STOPPER This part replaces 50524-001-000.

95011-61000

$1.49

RUBBER A, STAND STOPPER

95011-61000

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (10MM) | Use up to Frame SN 1021493 This part replaces 94001-10000.

94030-10000

$1.49

NUT, HEX. (10MM) | Use from Frame SN 1021494

94001-10000-0S

$1.49

NUT, HEX. (10MM) | Use up to Frame SN 1021493

94030-10000

$1.49

NUT, HEX. (10MM) | Use up to Frame SN 1021493 This part replaces 94030-10000-0S.

94030-10000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49
