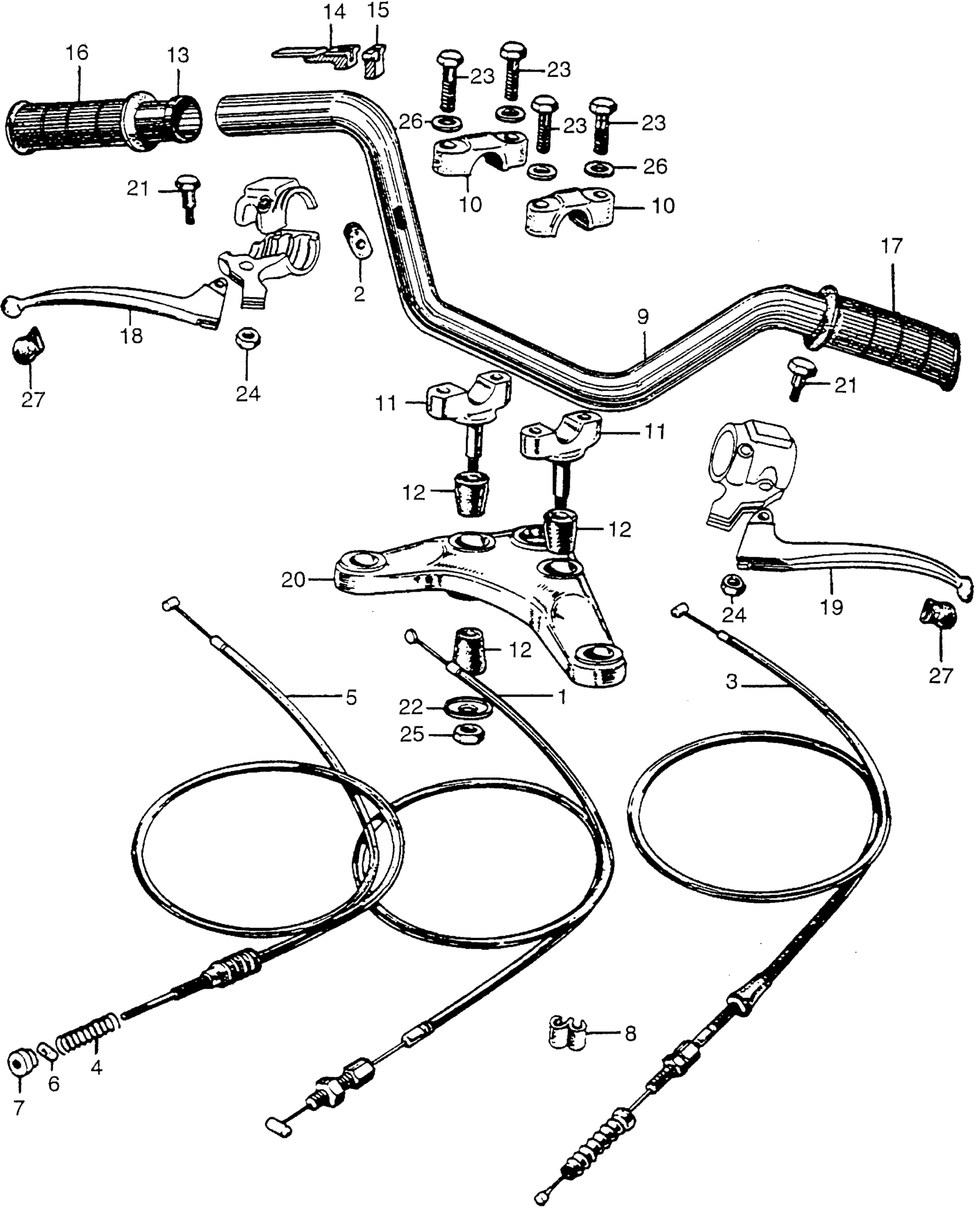

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 HANDLEBAR Diagram

CABLE, THROTTLE (NOT AVAILABLE)

17910-237-680

Unavailable

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

CABLE, CLUTCH This part replaces 22870-237-681.

22870-302-601

Unavailable

CABLE, CLUTCH | Use from Frame SN 1017136 This part replaces 22870-302-600.

22870-302-601

Unavailable

SPRING, FR. BRAKE ARM RETURN

45435-250-000

$4.61

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1024582 This part replaces 45450-237-670.

45450-237-671

Unavailable

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1024582

45450-237-671

Unavailable

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-243-000

Unavailable

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

HANDLEBAR (NOT AVAILABLE)

53100-303-000

Unavailable

HOLDER B1, HANDLEBAR (UPPER) This part replaces 53131-242-000.

95014-22100

$12.13

HOLDER B1, HANDLEBAR (UPPER) This part replaces 53131-268-000.

95014-22100

$12.13

HOLDER B1, HANDLEBAR (UPPER) This part replaces 53131-283-000.

95014-22100

$12.13

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$12.13

HOLDER, HANDLEBAR (LOWER)

53132-237-680

Unavailable

RUBBER, HANDLEBAR CUSHION

53133-237-680

$4.76

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-271-000

Unavailable

HINGE, THROTTLE WIRE

53161-250-000

Unavailable

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)

53162-042-000

Unavailable

GRIP, R. HANDLEBAR This part replaces 53165-283-000.

95011-14100

$8.55

GRIP, R. HANDLEBAR

95011-14100

$8.55

GRIP C, L. HANDLE This part replaces 53166-028-000.

95011-13200

$10.36

GRIP C, L. HANDLE

95011-13200

$10.36

LEVER, R. HANDLE This part replaces 53170-242-670.

53175-230-010

Unavailable

LEVER, R. HANDLE

53175-230-010

Unavailable

LEVER, L. HANDLEBAR

53190-242-670

$38.03

BOLT, CLUTCH CABLE ADJUSTING | Use from Frame SN 1017136

53192-203-000

$9.10

BRIDGE, FORK TOP

53231-237-680

Unavailable

SCREW, HANDLEBAR LEVER PIVOT

90114-028-000

$6.95

NUT, FIXING | Use from Frame SN 1017136

90321-315-670

$7.31

NUT, FIXING | Use from Frame SN 1017136 This part replaces 90321-968-000.

90321-315-670

$7.31

WASHER, RUBBER (NOT AVAILABLE)

90535-283-000

Unavailable

BOLT, HEX. (8X38) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08038-0B.

92101-08038-0B

Unavailable

BOLT, HEX. (8X38) (SOURCE: VINTAGE PARTS INC.) | Use up to Frame SN 1021493 This part replaces 92000-08038-02.

92101-08038-0B

Unavailable

BOLT, HEX. (8X38) (SOURCE: VINTAGE PARTS INC.)

92101-08038-0B

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (10MM) | Use up to Frame SN 1021493 This part replaces 94001-10000.

94030-10000

$1.49

NUT, HEX. (10MM) | Use from Frame SN 1021494

94001-10000-0S

$1.49

NUT, HEX. (10MM) | Use up to Frame SN 1021493

94030-10000

$1.49

NUT, HEX. (10MM) | Use up to Frame SN 1021493 This part replaces 94030-10000-0S.

94030-10000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

CAP A, LEVER

95010-16001

$5.97
