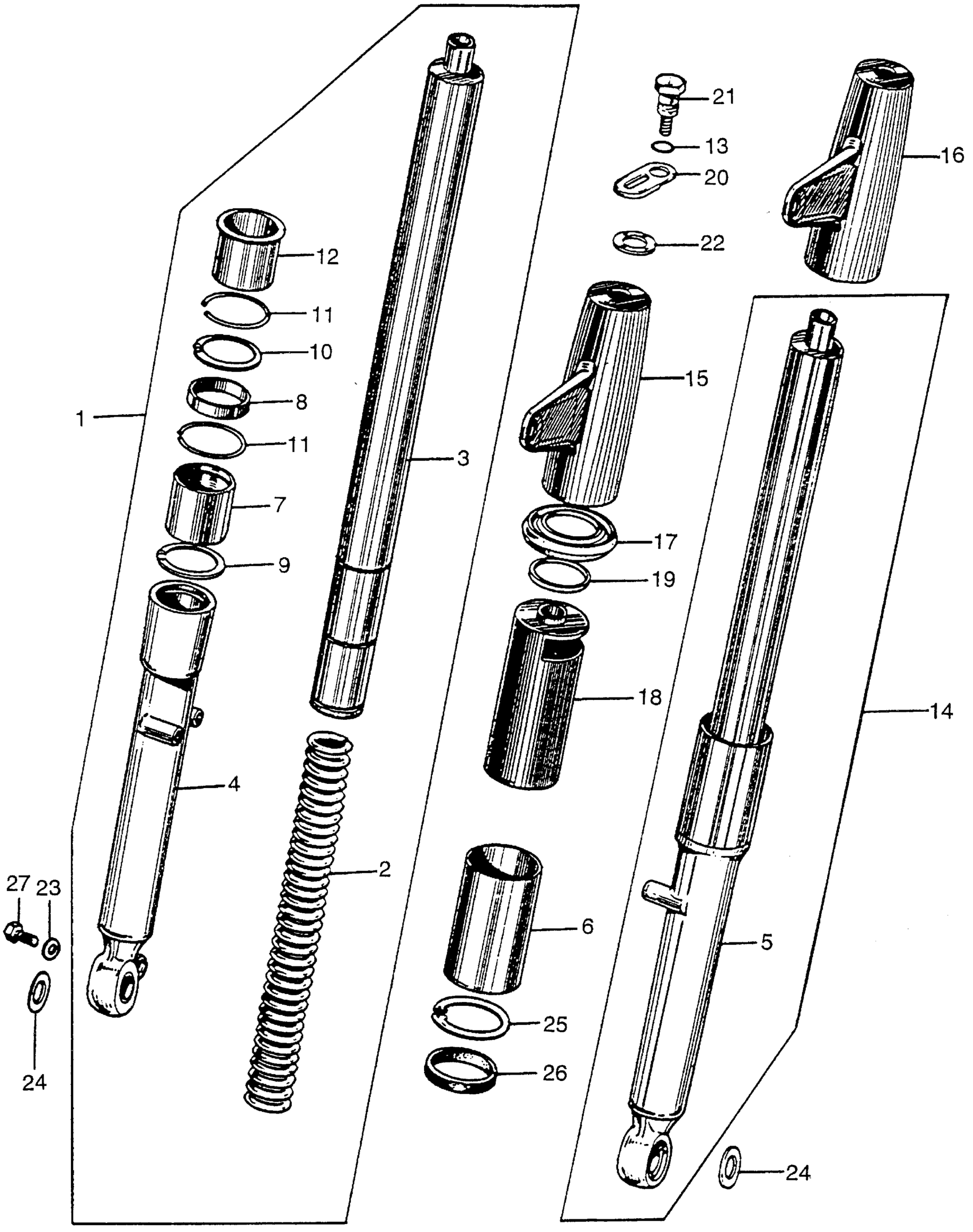

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-237-680

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-237-680

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE)

51410-230-030

Unavailable

4

CASE, R. FR. FORK (LOWER) This part replaces 51420-230-030.

51420-230-040

Unavailable

4

CASE, R. FR. FORK (LOWER)

51420-230-040

Unavailable

5

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-230-030

Unavailable

6

COVER, CASE (LOWER) (NOT AVAILABLE) This part replaces 51423-230-030.

51402-303-000

Unavailable

7

PISTON, FR. FORK (NOT AVAILABLE) This part replaces 51442-230-320.

94603-31200

Unavailable

7

PISTON, FR. FORK (NOT AVAILABLE)

94603-31200

Unavailable

8

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-222-000

Unavailable

9

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-216-000

Unavailable

10

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-222-000

Unavailable

11

RING, FR. FORK PISTON STOPPER (NOT AVAILABLE)

51447-216-000

Unavailable

12

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-216-010

Unavailable

13

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

13

O-RING (8.4X2.4)

94608-10000

$1.49

14

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-237-680

Unavailable

15

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 1017136

51602-230-620Z

Unavailable

16

COVER, L. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 1017136

51606-230-620Z

Unavailable

17

RIB, FR. FORK (NOT AVAILABLE) | Use up to Frame SN 1016485

51608-216-000

Unavailable

17

RIB, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1016486

51608-240-000

Unavailable

18

COVER, FR. FORK (LOWER) (NOT AVAILABLE)

51611-230-010Z

Unavailable

19

GASKET, FR. FORK RIB (NOT AVAILABLE)

51622-222-000

Unavailable

20

KEEPER, HELMET (NOT AVAILABLE)

53126-216-810

Unavailable

21

BOLT, FORK A | Use from Frame SN 1015555 This part replaces 90123-051-000.

94605-10101

$5.21

21

BOLT, FORK A | Use from Frame SN 1015555

94605-10101

$5.21

22

WASHER, FORK BOLT (13MM) | Use from Frame SN 1015555 This part replaces 90537-028-000.

94606-13001

$1.49

22

WASHER, FORK BOLT (13MM) | Use up to Frame SN 1015554 This part replaces 90537-051-000.

94606-13001

$1.49

22

WASHER, FORK BOLT (13MM) | Use up to Frame SN 1015554 This part replaces 94606-13000.

94606-13001

$1.49

22

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

WASHER (15.2X25)

90557-230-000

$2.39

25

CIRCLIP (INNER) (41MM) (NOT AVAILABLE) This part replaces 90667-216-000.

94536-41120

Unavailable

25

CIRCLIP (INNER) (41MM) (NOT AVAILABLE)

94536-41120

Unavailable

26

OIL SEAL, FR. FORK This part replaces 90755-314-650.

91255-464-003

$11.16

26

OIL SEAL, FR. FORK This part replaces 91255-216-000.

91255-464-003

$11.16

26

OIL SEAL, FR. FORK This part replaces 91255-315-003.

91255-464-003

$11.16

26

OIL SEAL, FR. FORK

91255-464-003

$11.16

27

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
