CA175 CARBURETOR

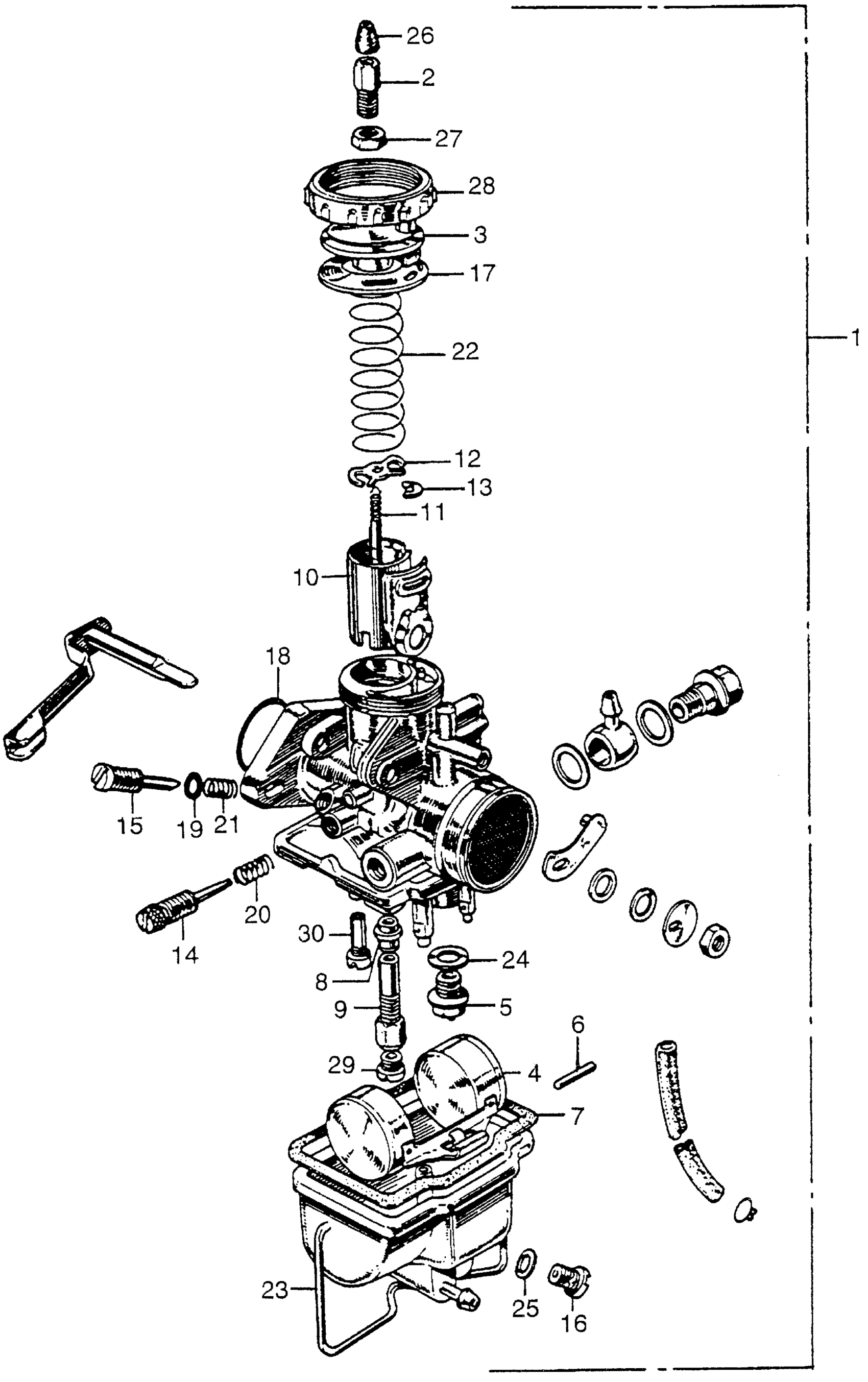

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 CARBURETOR Diagram
#
1
CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 1021668
16100-237-004
Unavailable
2
ADJUSTER, CABLE (NOT AVAILABLE)
16118-268-004
Unavailable
3
TOP (NOT AVAILABLE)
16119-268-004
Unavailable
4
FLOAT SET This part replaces 16013-302-670.
16013-312-004
Unavailable
4
FLOAT SET
16013-312-004
Unavailable
4
FLOAT SET This part replaces 16122-259-004.
16013-312-004
Unavailable
4
FLOAT SET This part replaces 16122-268-004.
16013-312-004
Unavailable
5
VALVE SET, FLOAT (NOT AVAILABLE)
16125-235-004
Unavailable
6
PIN, FLOAT ARM (NOT AVAILABLE)
16126-259-004
Unavailable
7
WASHER, FLOAT CHAMBER
16129-268-004
Unavailable
9
HOLDER, NEEDLE JET | Use from Engine SN 1021668
16139-237-004
Unavailable
9
HOLDER, NEEDLE JET (NOT AVAILABLE) | Use up to Engine SN 1021667
16139-268-004
Unavailable
10
VALVE, THROTTLE (NOT AVAILABLE)
16141-237-004
Unavailable
11
NEEDLE, JET (NOT AVAILABLE)
16151-237-004
Unavailable
12
PLATE, NEEDLE CLIP (NOT AVAILABLE)
16156-259-004
Unavailable
14
SCREW, AIR (NOT AVAILABLE)
16162-259-004
Unavailable
15
SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.
16163-217-004
Unavailable
15
SCREW, THROTTLE STOP
16163-217-004
Unavailable
16
SCREW, DRAIN (NOT AVAILABLE)
16164-202-004
Unavailable
17
WASHER, TOP (NOT AVAILABLE)
16171-250-004
Unavailable
18
O-RING (27X2.4)
16173-253-004
Unavailable
19
O-RING (2.8MM) (NOT AVAILABLE)
16175-260-004
Unavailable
21
SPRING, THROTTLE STOP (NOT AVAILABLE)
16182-011-004
Unavailable
22
SPRING, THROTTLE (NOT AVAILABLE)
16185-268-004
Unavailable
23
CLIP, FLOAT CHAMBER SET (NOT AVAILABLE)
16187-268-004
Unavailable
24
WASHER, FIBER (9MM) (NOT AVAILABLE)
16188-259-004
Unavailable
25
WASHER, FIBER
16189-056-004
Unavailable
27
NUT, CABLE ADJUSTING (NOT AVAILABLE)
16198-268-004
Unavailable
28
CAP, CABLE (NOT AVAILABLE)
16199-259-004
Unavailable
29
JET, MAIN (#90) (NOT AVAILABLE) | Use up to Engine SN 1021667 This part replaces 99102-09004.
99114-051-0900
Unavailable
29
JET, MAIN (#92) (NOT AVAILABLE) | Use up to Engine SN 1021667 This part replaces 99102-09204.
99114-051-0920
Unavailable
29
JET, MAIN (#95) | Use up to Engine SN 1021667 This part replaces 99102-09504.
99114-051-0950
Unavailable
29
JET, MAIN (#98) (NOT AVAILABLE) | Use up to Engine SN 1021667
99102-09804
Unavailable
29
JET, MAIN (#100) | Use up to Engine SN 1021667
99102-10004
Unavailable
29
JET, MAIN (#105) (NOT AVAILABLE) | Use up to Engine SN 1021667
99102-10504
Unavailable
29
JET, MAIN (#110) (NOT AVAILABLE) | Use up to Engine SN 1021667
99102-11004
Unavailable
29
JET, MAIN (#115) (NOT AVAILABLE) | Use up to Engine SN 1021667
99102-11504
Unavailable
29
JET, MAIN (#90) (NOT AVAILABLE) | Use up to Engine SN 1021667
99114-051-0900
Unavailable
29
JET, MAIN (#92) (NOT AVAILABLE) | Use up to Engine SN 1021667
99114-051-0920
Unavailable
29
JET, MAIN (#92) (NOT AVAILABLE) | Use up to Engine SN 1021667 This part replaces 99114-09204.
99114-051-0920
Unavailable
29
JET, MAIN (#90) (NOT AVAILABLE) | Use from Engine SN 1021668
99114-246-0900
Unavailable
29
JET, MAIN (#92) | Use from Engine SN 1021668
99114-246-0920
Unavailable
29
JET, MAIN (#98) | Use from Engine SN 1021668
99114-246-0980
Unavailable
29
JET, MAIN (#100) | Use from Engine SN 1021668
99114-246-1000
Unavailable
29
JET, MAIN (#105) | Use from Engine SN 1021668
99114-246-1050
Unavailable
29
JET, MAIN (#110) | Use from Engine SN 1021668
99114-246-1100
Unavailable
29
JET, MAIN (#115) | Use from Engine SN 1021668
99114-246-1150
Unavailable
30
JET, SLOW (#35) (NOT AVAILABLE)
99124-237-0350
Unavailable
30
JET, SLOW (#38) (NOT AVAILABLE)
99124-237-0380
Unavailable
30
JET, SLOW (#40) (NOT AVAILABLE)
99124-237-0400
Unavailable
30
JET, SLOW (#42) (NOT AVAILABLE)
99124-237-0420
Unavailable
30
JET, SLOW (#45) (NOT AVAILABLE)
99124-237-0450
Unavailable
30
JET, SLOW (#50) (NOT AVAILABLE)
99124-237-0500
Unavailable
