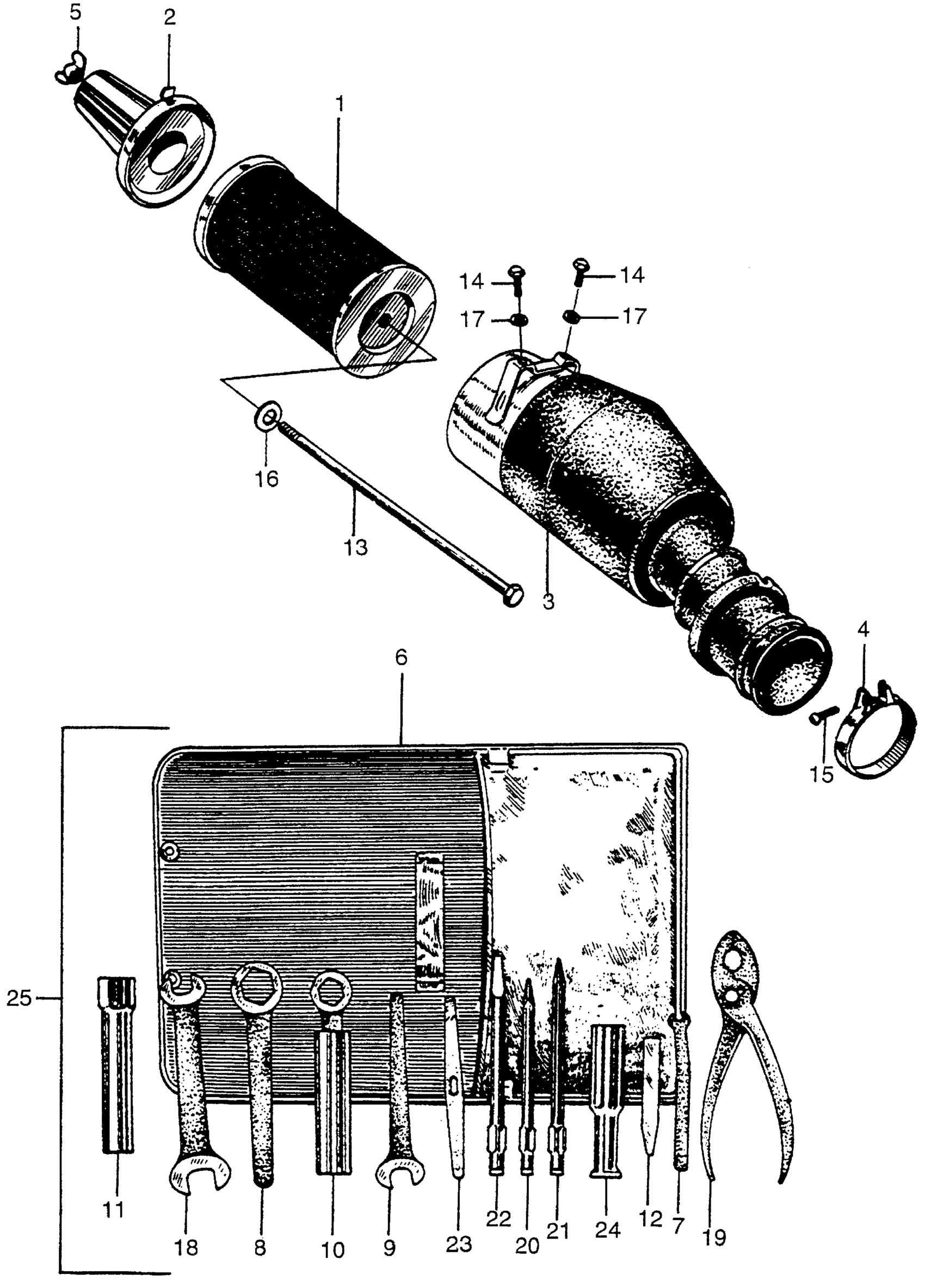

Honda CA175A MOTORCYCLE, JPN, VIN# CD175-1000001 CA175 AIR CLEANER + TOOL Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17212-237-680

Unavailable

2

PIPE, AIR IN. (NOT AVAILABLE)

17213-230-010

Unavailable

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17221-237-680

Unavailable

4

BAND A, CONNECTING TUBE (NOT AVAILABLE) | Use up to Frame SN 1021493

17255-224-000

Unavailable

4

BAND, AIR CLEANER CONNECTING TUBE (46) | Use from Frame SN 1021494 This part replaces 17255-230-000.

95018-46250

$7.64

5

NUT, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 1021494

39152-230-000

Unavailable

5

NUT, AIR CLEANER | Use up to Frame SN 1021493

39152-500-810

Unavailable

6

BAG, TOOL (NOT AVAILABLE)

89101-011-000

Unavailable

7

WRENCH, TAPPET ADJUSTING

07908-KE90200

$49.93

7

WRENCH, TAPPET ADJUSTING This part replaces 89201-200-000.

07908-KE90200

$49.93

8

WRENCH, AXLE (NOT AVAILABLE) | Use up to Frame SN 1021493

89202-230-000

Unavailable

8

WRENCH, AXLE (NOT AVAILABLE) | Use from Frame SN 1021494

89202-246-000

Unavailable

9

SPANNER (9MM) (N/A: SEE ASSEMBLY) | Use up to Frame SN 1021493

89203-200-000

Unavailable

10

WRENCH, EYE (17) This part replaces 89212-001-000.

89218-MN8-000

$18.72

11

WRENCH, SPARK PLUG

89216-028-010

Unavailable

11

WRENCH, SPARK PLUG (NOT AVAILABLE) This part replaces 89216-033-000.

99004-18230

Unavailable

11

WRENCH, SPARK PLUG

89216-264-000

Unavailable

11

WRENCH, SPARK PLUG (NOT AVAILABLE)

99004-18230

Unavailable

12

GAUGE, TAPPET CLEARANCE

89231-001-000

Unavailable

13

BOLT, AIR CLEANER (NOT AVAILABLE) | Use up to Frame SN 1021493

90113-230-010

Unavailable

13

BOLT, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 1021494

90113-230-020

Unavailable

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

SCREW, PAN (4X26) This part replaces 93500-04016.

93500-04016-0A

$1.49

15

SCREW, PAN (4X26)

93500-04016-0A

$1.49

16

WASHER, PLAIN (5MM)

94101-05000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WRENCH (8X12) (OPEN END) | Use from Frame SN 1021494 This part replaces 99001-08012.

99001-08120

$2.75

18

WRENCH (8X12) (OPEN END) | Use from Frame SN 1021494

99001-08120

$2.75

18

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

19

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

20

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

21

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

22

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

23

LEVER, TIRE

99003-40000

$1.49

24

GRIP

99003-50000

$3.27

25

TOOL SET (NOT AVAILABLE) | Use up to Frame SN 1021493

89010-237-000

Unavailable

25

TOOL SET (NOT AVAILABLE) | Use from Frame SN 1021494

89010-237-010

Unavailable
