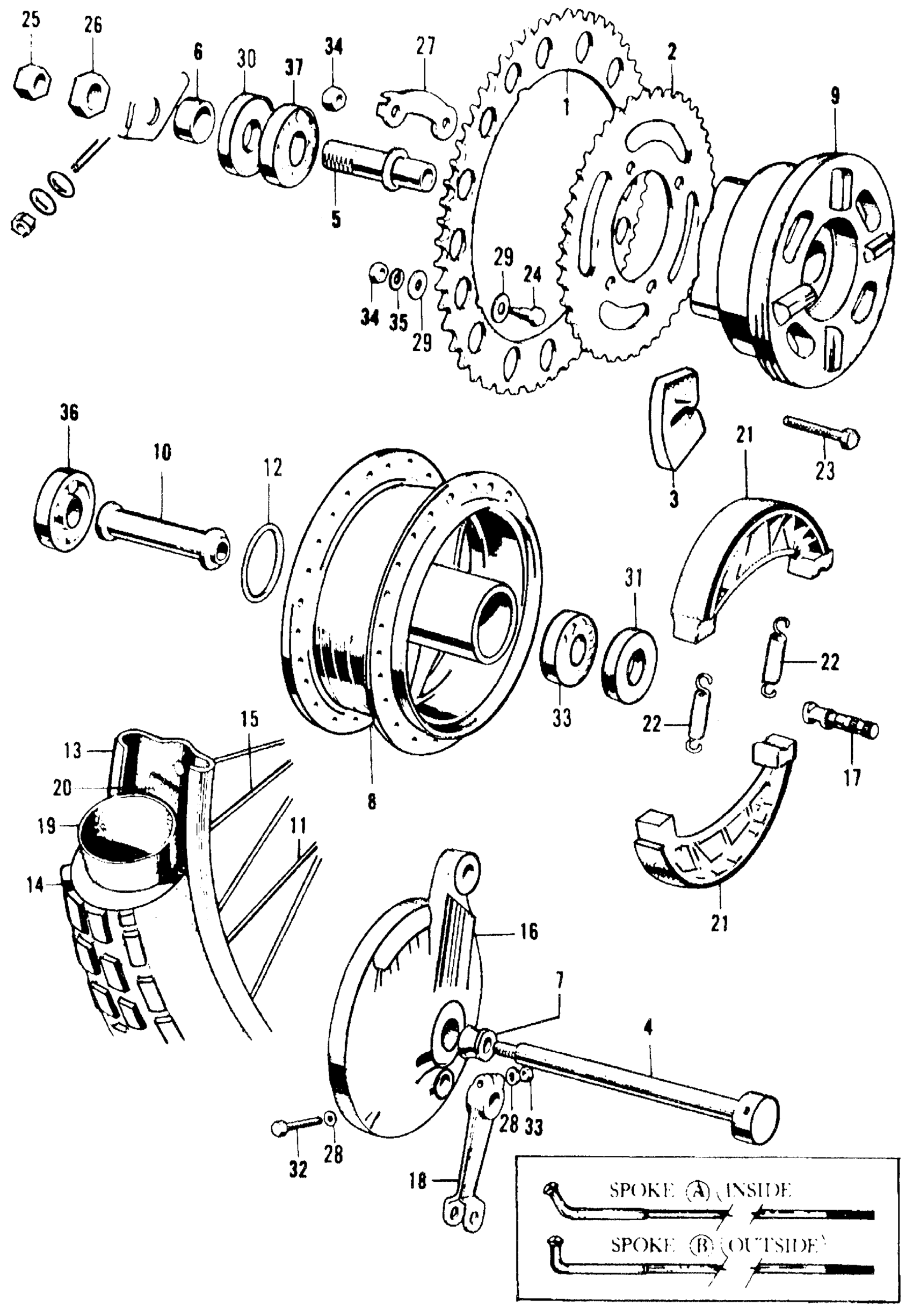

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (40T)

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-001-030.

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-001-240.

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-001-820.

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-000.

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-720.

41201-GBJ-000

Unavailable

2

SPROCKET, FINAL DRIVEN (40T)

41201-GBJ-000

Unavailable

2

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-000.

41201-GBJ-000

Unavailable

2

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-720.

41201-GBJ-000

Unavailable

3

DAMPER, RR. WHEEL

41241-001-050

$7.31

4

AXLE, RR. WHEEL | Use from Frame SN F078729 This part replaces 42301-041-030.

42301-121-760

Unavailable

4

AXLE, RR. WHEEL | Use from Frame SN F078729

42301-121-760

Unavailable

5

SLEEVE, RR. WHEEL AXLE (NOT AVAILABLE)

42303-001-020

Unavailable

6

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE)

42304-001-010

Unavailable

6

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE) | Use from Frame SN A000001 to F078728

42304-001-810

Unavailable

7

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-001-000

Unavailable

8

HUB, RR. WHEEL

42601-001-070

Unavailable

9

FLANGE, FINAL DRIVE (NOT AVAILABLE) | Use from Frame SN A000001 to F078728

42610-001-050

Unavailable

9

FLANGE, FINAL DRIVE (NOT AVAILABLE) | Use from Frame SN F078729

42610-030-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE

42620-001-010

Unavailable

11

SPOKE B, RR.

42638-001-020

$4.66

12

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

13

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

13

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

13

RIM, WHEEL This part replaces 42701-041-010.

42701-001-073

Unavailable

13

RIM, WHEEL This part replaces 42701-041-020.

42701-001-073

Unavailable

14

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE)

42711-011-810

Unavailable

14

TIRE, RR. (2.50-17) (YOKOHAMA) (NOT AVAILABLE)

42711-030-810

Unavailable

15

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

15

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

16

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-001-050

Unavailable

17

CAM, RR. BRAKE (NOT AVAILABLE)

43141-001-000

Unavailable

18

ARM, RR. BRAKE (NOT AVAILABLE)

43410-001-010

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

19

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

20

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

20

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

21

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

22

SPRING, BRAKE SHOE

45133-028-000

$2.03

23

BOLT, SPROCKET

90128-001-030

Unavailable

24

BOLT, SPROCKET (NOT AVAILABLE)

90128-001-811

Unavailable

25

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

26

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

27

WASHER, TOP BRIDGE TONGUED

90522-001-000

Unavailable

27

WASHER, TONGUED (8MM) (SOURCE: VINTAGE PARTS INC.)

94108-11000

Unavailable

28

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

29

WASHER, SPROCKET SETTING (NOT AVAILABLE)

90551-001-810

Unavailable

30

OIL SEAL (23X35X7) (NOT AVAILABLE) | Use from Frame SN A000001 to F078728

91253-001-000

Unavailable

30

OIL SEAL (23X40X6) (NOT AVAILABLE) | Use from Frame SN F078729

91253-030-000

Unavailable

31

OIL SEAL (18X37X7) (NOT AVAILABLE)

91254-001-000

Unavailable

32

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

32

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (8MM)

94030-08000

$1.49

35

WASHER, SPRING (8MM)

94111-08000

$1.49

36

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

36

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

36

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

37

BEARING, RADIAL BALL (6003Z) (NOT AVAILABLE) | Use from Frame SN A000001 to F078728

96120-60030

$13.34

37

BEARING, RADIAL BALL (6203) | Use from Frame SN F078729 This part replaces 96120-62030.

96120-62030-00

$17.70

37

BEARING, RADIAL BALL (6203) | Use from Frame SN F078729

96120-62030-00

$17.70
