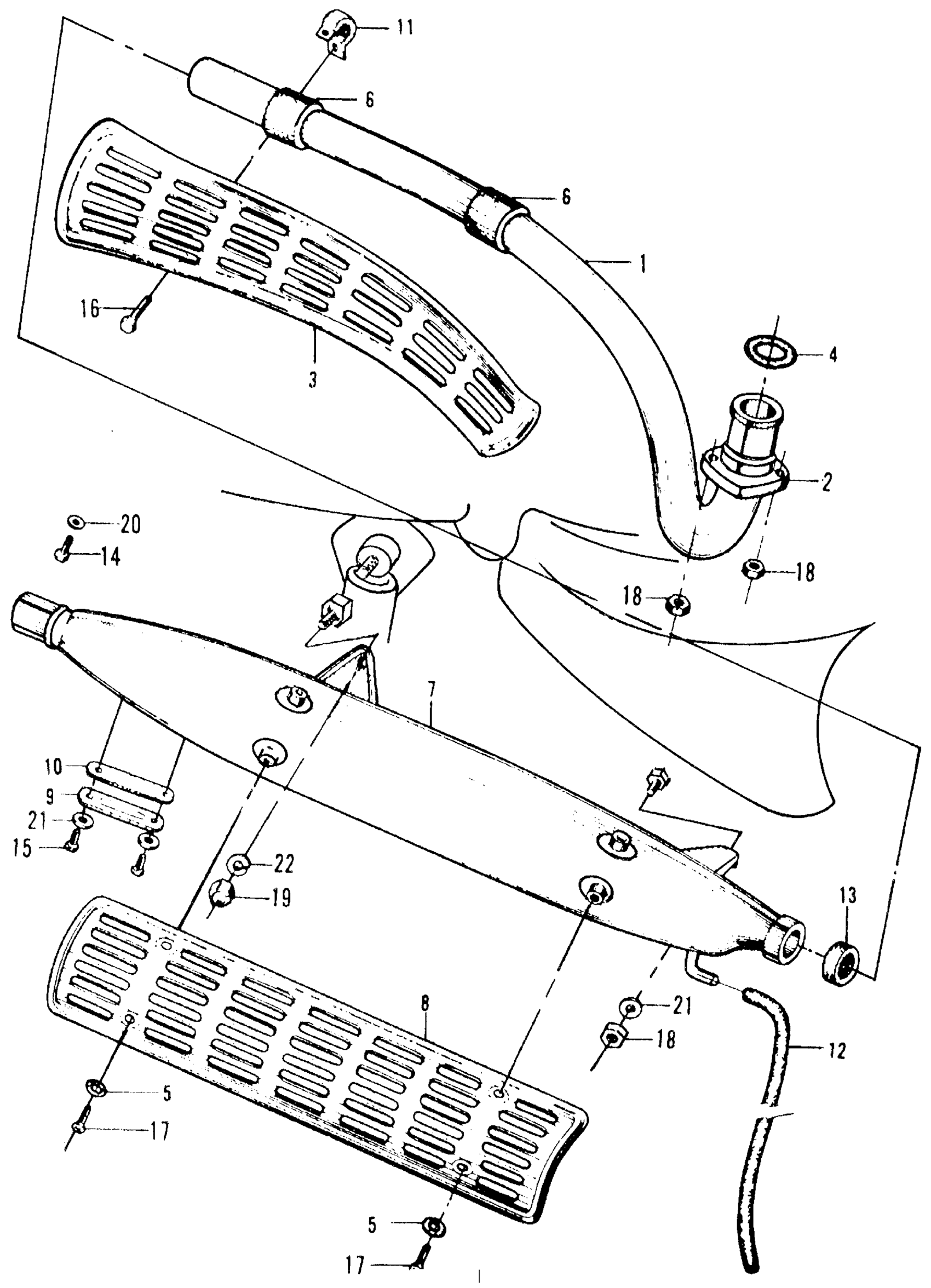

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 MUFFLER Diagram

#

Description
Price

1

MUFFLER, EX. (NOT AVAILABLE)

18200-001-810

Unavailable

2

JOINT, EX. PIPE (NOT AVAILABLE)

18231-001-020

Unavailable

3

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18240-001-810

Unavailable

4

GASKET, EX. PIPE

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

5

GASKET, PROTECTOR

18292-167-890

$1.88

5

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.88

6

GASKET, MUFFLER This part replaces 18293-011-000.

18391-HB7-000

$11.62

6

GASKET, MUFFLER

18391-HB7-000

$11.62

7

MUFFLER (NOT AVAILABLE) This part replaces 18300-001-670.

18300-001-677

Unavailable

7

MUFFLER (NOT AVAILABLE)

18300-001-677

Unavailable

8

PROTECTOR, MUFFLER (NOT AVAILABLE)

18361-011-000

Unavailable

9

LID, MUFFLER (NOT AVAILABLE)

18371-001-810

Unavailable

10

GASKET, MUFFLER LID (NOT AVAILABLE)

18372-001-810

Unavailable

11

PIPE, MUFFLER DRAIN This part replaces 18381-001-810.

18381-011-010

Unavailable

11

PIPE, MUFFLER DRAIN This part replaces 18381-011-000.

18381-011-010

Unavailable

11

PIPE, MUFFLER DRAIN

18381-011-010

Unavailable

12

PIPE, MUFFLER DRAIN

18381-011-010

Unavailable

13

GASKET, MUFFLER (NOT AVAILABLE)

18391-011-000

Unavailable

14

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$1.49

14

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

14

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

16

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

16

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

16

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

17

SCREW, OVAL (6X10) This part replaces 93700-06010.

93700-06010-0A

$1.49

17

SCREW, OVAL (6X10)

93700-06010-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, CAP (8MM) This part replaces 94021-08020.

94021-08020-0S

$1.82

19

NUT, CAP (8MM)

94021-08020-0S

$1.82

19

NUT, CAP (8MM) This part replaces 94021-08060-0S.

94021-08020-0S

$1.82

19

NUT, CAP (8MM) This part replaces 94021-08090-0S.

94021-08020-0S

$1.82

19

NUT, CAP (8MM) This part replaces 94022-08020-0S.

94021-08020-0S

$1.82

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49
