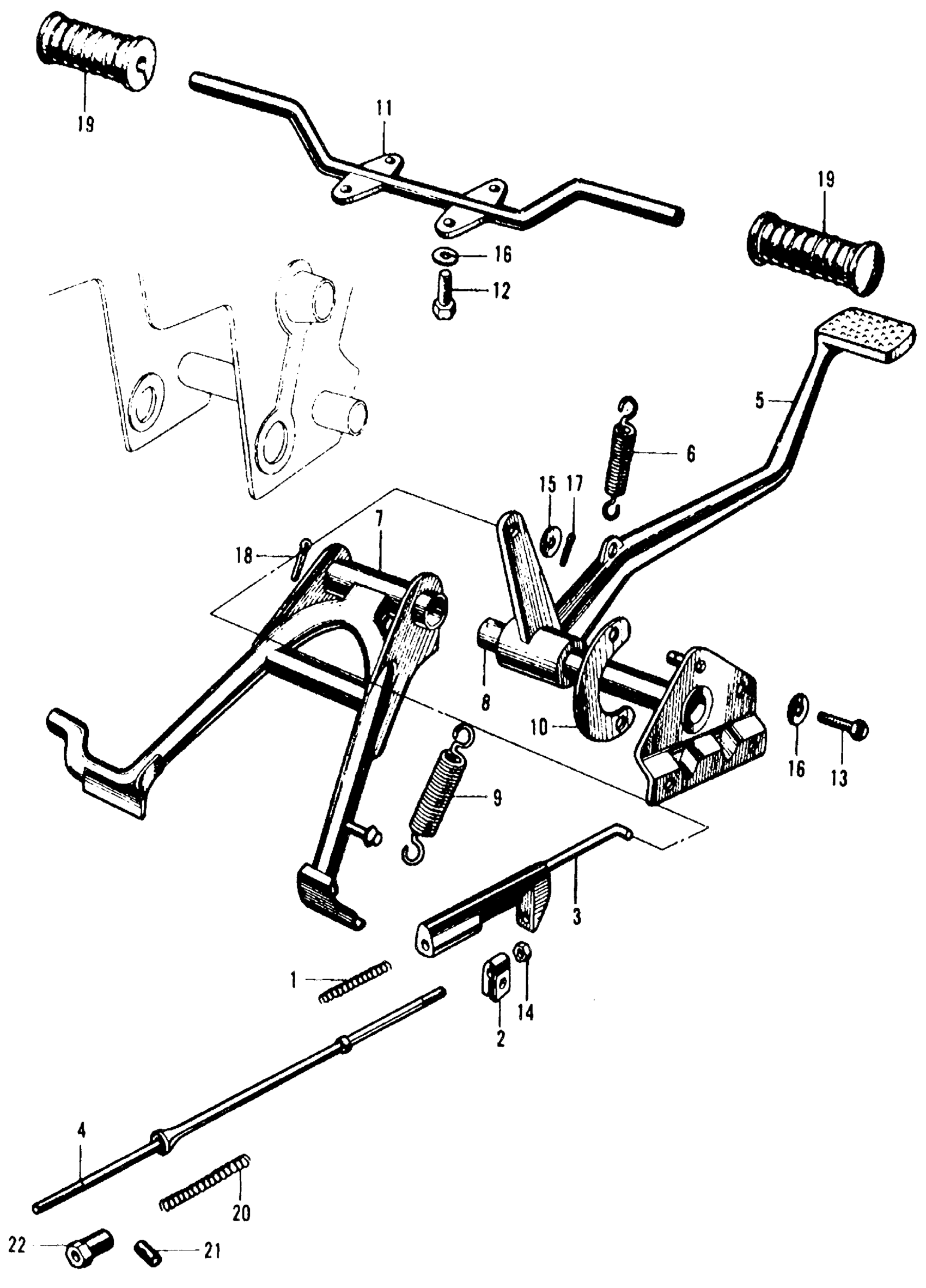

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 MAIN STAND + STEP BAR Diagram

SPRING B, BRAKE ROD This part replaces 43472-001-810.

95014-73200

Unavailable

SPRING B, BRAKE ROD

95014-73200

Unavailable

JOINT, RR. BRAKE ROD (NOT AVAILABLE)

43473-001-810

Unavailable

ROD, RR. BRAKE (FR) (NOT AVAILABLE)

45450-001-600

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

45452-001-600

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46500-001-670

Unavailable

SPRING, BRAKE PEDAL This part replaces 46514-001-010.

46514-096-700

Unavailable

SPRING, BRAKE PEDAL

46514-096-700

Unavailable

STAND, MAIN (NOT AVAILABLE)

50500-001-810

Unavailable

PIPE PIVOT, RR. BRAKE

50512-001-020

Unavailable

SPRING A, MAIN STAND This part replaces 50522-001-000.

95014-71102

$2.84

SPRING A, MAIN STAND

95014-71102

$2.84

HOOK, MAIN STAND SPRING

50523-001-000

Unavailable

BAR, STEP *NH1* (BLACK) This part replaces 50610-040-000B.

50610-040-000ZA

Unavailable

BAR, STEP *NH1* (BLACK)

50610-040-000ZA

Unavailable

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

RUBBER, STEP

95011-21000

$8.33

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
