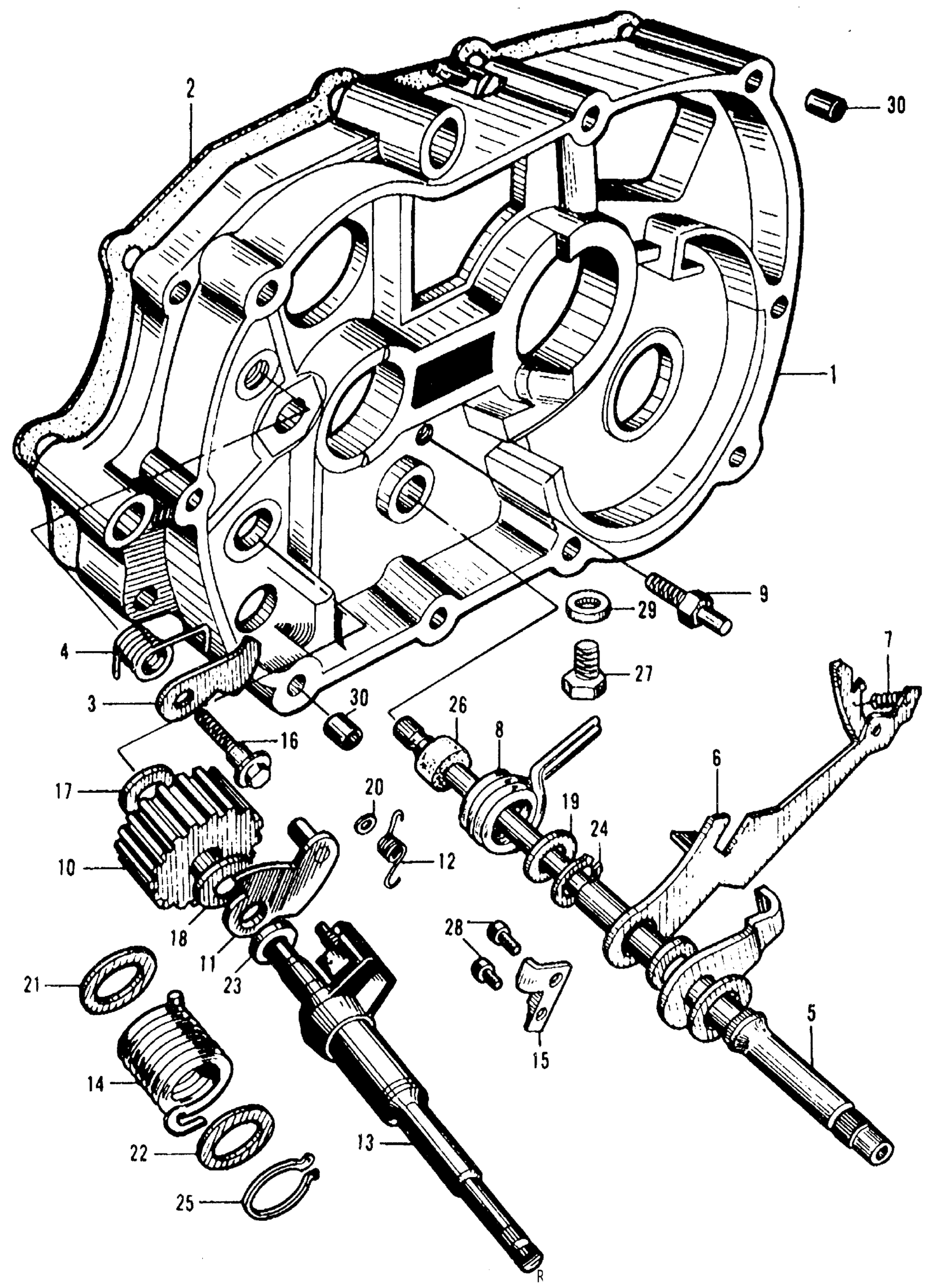

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 GEAR CHANGE + RIGHT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-003-040

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-003-020.

11191-003-307

Unavailable

3

STOPPER, SHIFT DRUM

24431-001-040

Unavailable

4

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-001-020

Unavailable

5

SPINDLE, GEARSHIFT

24610-001-080

Unavailable

6

ARM, GEARSHIFT (NOT AVAILABLE)

24630-001-090

Unavailable

7

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

8

SPRING, GEARSHIFT RETURN

24651-035-000

Unavailable

9

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-023-000

Unavailable

10

PINION, KICK STARTER (NOT AVAILABLE)

28211-001-020

Unavailable

11

GUIDE, KICK STARTER RATCHET (NOT AVAILABLE)

28224-011-000

Unavailable

12

SPRING, KICK STARTER PAWL (NOT AVAILABLE)

28228-001-060

Unavailable

13

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-001-070.

28250-001-305

Unavailable

13

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-001-305

Unavailable

13

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-001-375.

28250-001-305

Unavailable

14

SPRING, KICK STARTER (NOT AVAILABLE)

28281-001-010

Unavailable

15

STOPPER, KICK (NOT AVAILABLE)

28331-001-000

Unavailable

16

PIVOT, SHIFT DRUM STOPPER ARM (NOT AVAILABLE)

90023-001-010

Unavailable

17

WASHER, STARTER PINION SIDE (NOT AVAILABLE)

90421-001-000

Unavailable

18

WASHER, THRUST (14MM)

90451-001-000

$3.67

19

WASHER (12MM) (NOT AVAILABLE)

90482-001-000

Unavailable

20

WASHER (4.5mm) (NOT AVAILABLE)

90486-001-010

Unavailable

21

WASHER (23mm) (NOT AVAILABLE)

90487-001-000

Unavailable

22

WASHER (22mm) (NOT AVAILABLE)

90494-001-000

Unavailable

23

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

24

CIRCLIP (OUTER) (12MM) This part replaces 90603-001-000.

94510-12000

$1.78

24

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

25

CIRCLIP (23MM) (NOT AVAILABLE)

90604-001-000

Unavailable

26

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

26

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

26

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

26

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

26

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

27

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

28

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

28

SCREW, PAN (6X12)

93500-06012-0A

$1.49

28

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

PIN A, DOWEL (8X12)

94301-08120

$2.19
