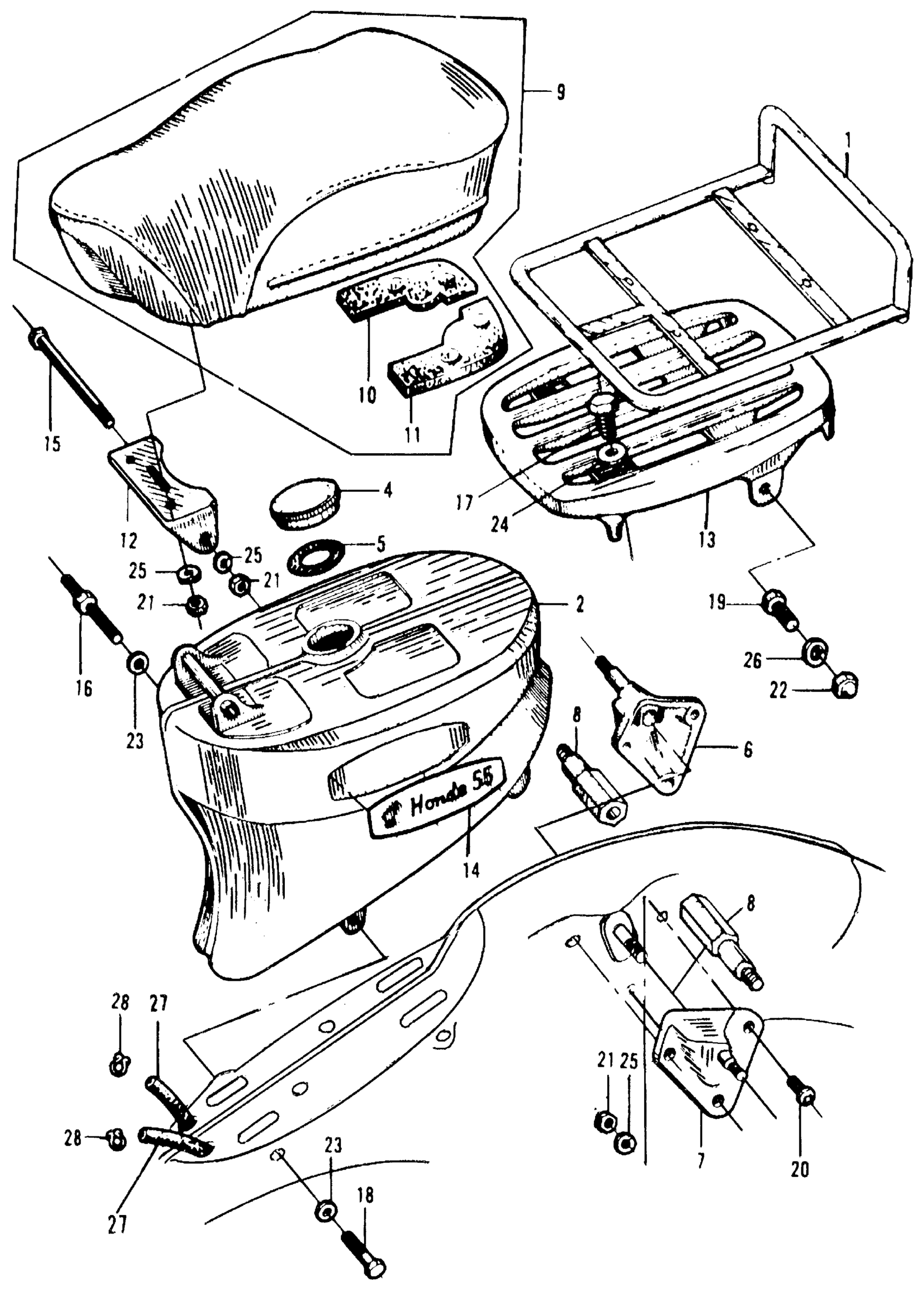

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 FUEL TANK + SEAT Diagram

#

Description
Price

1

CARRIER, LUGGAGE (NOT AVAILABLE)

08151-10001

Unavailable

2

TANK, FUEL (NOT AVAILABLE) | Use from Frame SN A000001 to B099554

17500-001-810Z

Unavailable

2

TANK, FUEL (NOT AVAILABLE) | Use from Frame SN B099555 to F007621

17500-001-820Z

Unavailable

3

TANK, FUEL (NOT AVAILABLE)

17050-001-822Z

Unavailable

3

TANK, FUEL (NOT AVAILABLE) This part replaces 17500-001-822Z.

17050-001-822Z

Unavailable

4

CAP, FUEL FILLER This part replaces 17620-041-000.

17620-171-020

Unavailable

4

CAP, FUEL FILLER This part replaces 17620-096-701.

17620-171-020

Unavailable

4

CAP, FUEL FILLER This part replaces 17620-096-702.

17620-171-020

Unavailable

4

CAP, FUEL FILLER This part replaces 17620-171-000.

17620-171-020

Unavailable

4

CAP, FUEL FILLER This part replaces 17620-171-010.

17620-171-020

Unavailable

5

GASKET This part replaces 17631-001-000.

17631-096-702

$2.47

5

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

6

BRACKET, R. RR. CUSHION (12MM)

50303-001-811

Unavailable

7

BRACKET, L. RR. RUBBER (12MM) (NOT AVAILABLE)

50306-001-811

Unavailable

8

SPACER, RR. RUBBER (10MM) (NOT AVAILABLE)

52443-001-810

Unavailable

9

SEAT *NH1L* (BLACK) (NOT AVAILABLE) | Use from Frame SN A000001 to B099554

77100-001-010A

Unavailable

9

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE) | Use from Frame SN B099555

77100-033-000A

Unavailable

10

RUBBER, R. SEAT STOPPER

77151-041-000

Unavailable

11

RUBBER, L. SEAT STOPPER

77152-041-000

Unavailable

12

BRACKET, SEAT *NH1* (BLACK) (NOT AVAILABLE)

77300-001-020B

Unavailable

13

CARRIER, LUGGAGE (NOT AVAILABLE)

81200-001-810Z

Unavailable

14

EMBLEM, R. (NOT AVAILABLE)

87121-001-640

Unavailable

15

PIN, SEAT HINGE

90101-001-010

Unavailable

16

SCREW, FR. MUFFLER CLAMP (NOT AVAILABLE)

90111-001-810

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.28

18

BOLT, HEX. (6X25)

92101-06025-0B

$2.28

19

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

19

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

20

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.)

93700-06012-0B

Unavailable

20

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-06012-02.

93700-06012-0B

Unavailable

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, CAP (8MM) This part replaces 94021-08020.

94021-08020-0S

$1.82

22

NUT, CAP (8MM)

94021-08020-0S

$1.82

22

NUT, CAP (8MM) This part replaces 94021-08060-0S.

94021-08020-0S

$1.82

22

NUT, CAP (8MM) This part replaces 94021-08090-0S.

94021-08020-0S

$1.82

22

NUT, CAP (8MM) This part replaces 94022-08020-0S.

94021-08020-0S

$1.82

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

27

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

28

CLIP, TUBE (C9)

95002-50000

$1.49
