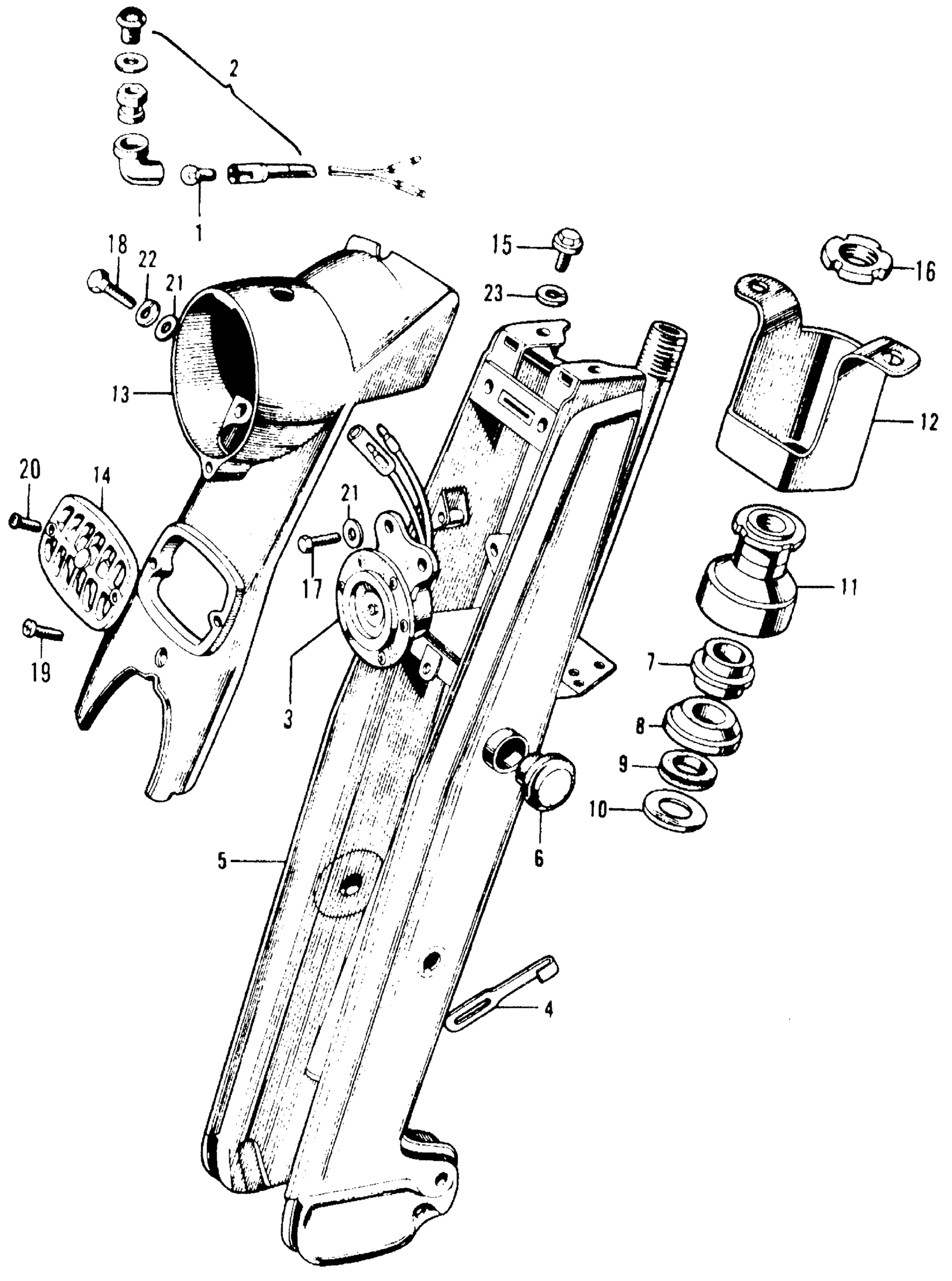

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 FRONT FORK II Diagram

#

Description
Price

1

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

2

LAMP ASSY., PILOT RED LENS (NOT AVAILABLE) | Use from Frame SN A000001 to H038239

37700-001-010

Unavailable

2

LAMP ASSY., PILOT GREEN LENS (NOT AVAILABLE) | Use from Frame SN H038240

37700-005-000

Unavailable

3

HORN ASSY. (NOT AVAILABLE)

38100-001-040

Unavailable

4

CLIP, SPEEDOMETER CABLE (NOT AVAILABLE)

45452-001-000

Unavailable

5

FORK, FR. (NOT AVAILABLE)

51100-001-020Z

Unavailable

6

CAP, FR. FORK SIDE *NH1* (BLACK) This part replaces 51341-001-000B.

51341-001-000ZE

$3.93

6

CAP, FR. FORK SIDE *NH1* (BLACK)

51341-001-000ZE

$3.93

7

RACE, STEERING TOP CONE (NOT AVAILABLE)

53211-001-305

Unavailable

8

RACE, STEERING CONE (LOWER) (NOT AVAILABLE)

53212-001-315

Unavailable

9

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

10

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

11

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53220-001-000

Unavailable

12

PLATE, FORK TOP BRIDGE

53231-034-000Z

Unavailable

13

CASE, HEADLIGHT *R2* (SCARLET) (NOT AVAILABLE)

61301-001-020C

Unavailable

13

CASE, HEADLIGHT *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE)

61301-001-020XB

Unavailable

14

COVER, HORN (NOT AVAILABLE)

61311-001-000

Unavailable

15

BOLT, TOP BRIDGE SETTING (NOT AVAILABLE)

90117-001-000

Unavailable

16

NUT C, STEERING STEM This part replaces 90304-030-000.

95020-13100

Unavailable

16

NUT C, STEERING STEM

95020-13100

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

19

SCREW, PAN (6X38) (NOT AVAILABLE)

93500-06038-02

Unavailable

20

SCREW, OVAL (3X8) (NOT AVAILABLE)

93700-03008

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49
