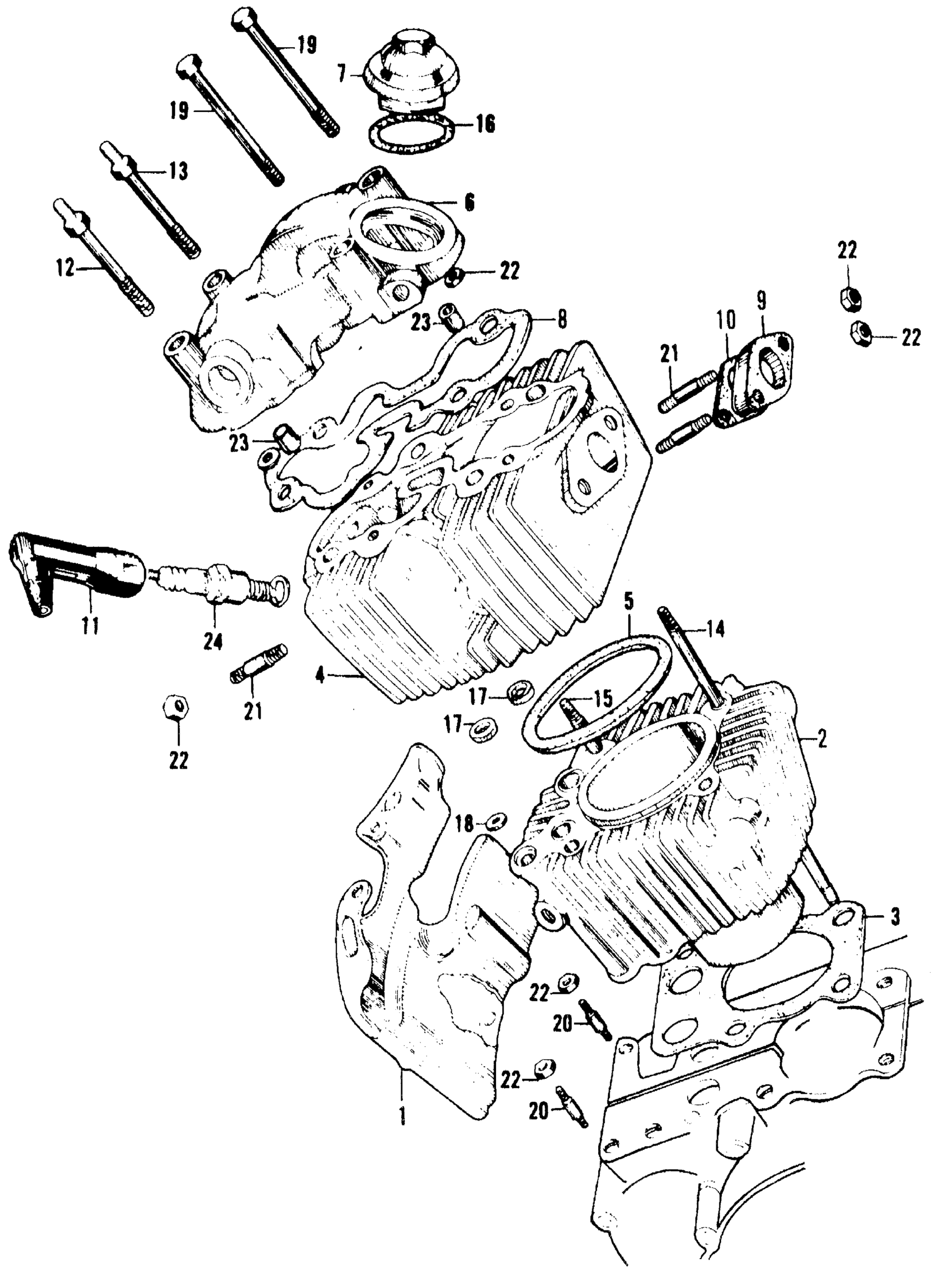

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUARD, DUST (NOT AVAILABLE)

11911-001-010

Unavailable

2

CYLINDER

12101-012-000

Unavailable

3

GASKET, CYLINDER This part replaces 12191-001-335.

12191-001-306

$9.40

4

CYLINDER HEAD

12201-002-000

Unavailable

5

GASKET, CYLINDER HEAD

12251-002-000

Unavailable

6

COVER, CYLINDER HEAD

12301-001-110

Unavailable

7

CAP, TAPPET (NOT AVAILABLE)

12361-001-020

Unavailable

8

GASKET, CYL HD CVR This part replaces 12391-001-040.

12391-001-306

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-001-000

Unavailable

10

GASKET, IN. PIPE This part replaces 17119-011-000.

17119-011-306

Unavailable

11

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

11

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

12

BOLT C, CYLINDER HEAD COVER (NOT AVAILABLE)

90004-001-020

Unavailable

13

BOLT A, CYLINDER HEAD COVER (NOT AVAILABLE)

90005-001-010

Unavailable

14

BOLT A, CYLINDER (NOT AVAILABLE)

90031-001-010

Unavailable

15

STUD BOLT, CYLINDER (NOT AVAILABLE)

90032-001-010

Unavailable

16

O-RING (30.8MM)

91302-001-020

$3.75

17

O-RING (11X2.0)

91303-259-000

$3.26

18

GASKET, RUBBER (7.5MM)

91306-001-000

Unavailable

19

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

19

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

19

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

19

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

19

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

20

BOLT, STUD (6X24) (NOT AVAILABLE)

92708-06024-10

$0.65

21

BOLT, STUD (6X33) (SOURCE: VINTAGE PARTS INC.)

92712-06033

Unavailable

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

PIN A, DOWEL (10X14)

94301-10140

$2.28

24

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.38

24

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.38

24

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.38
