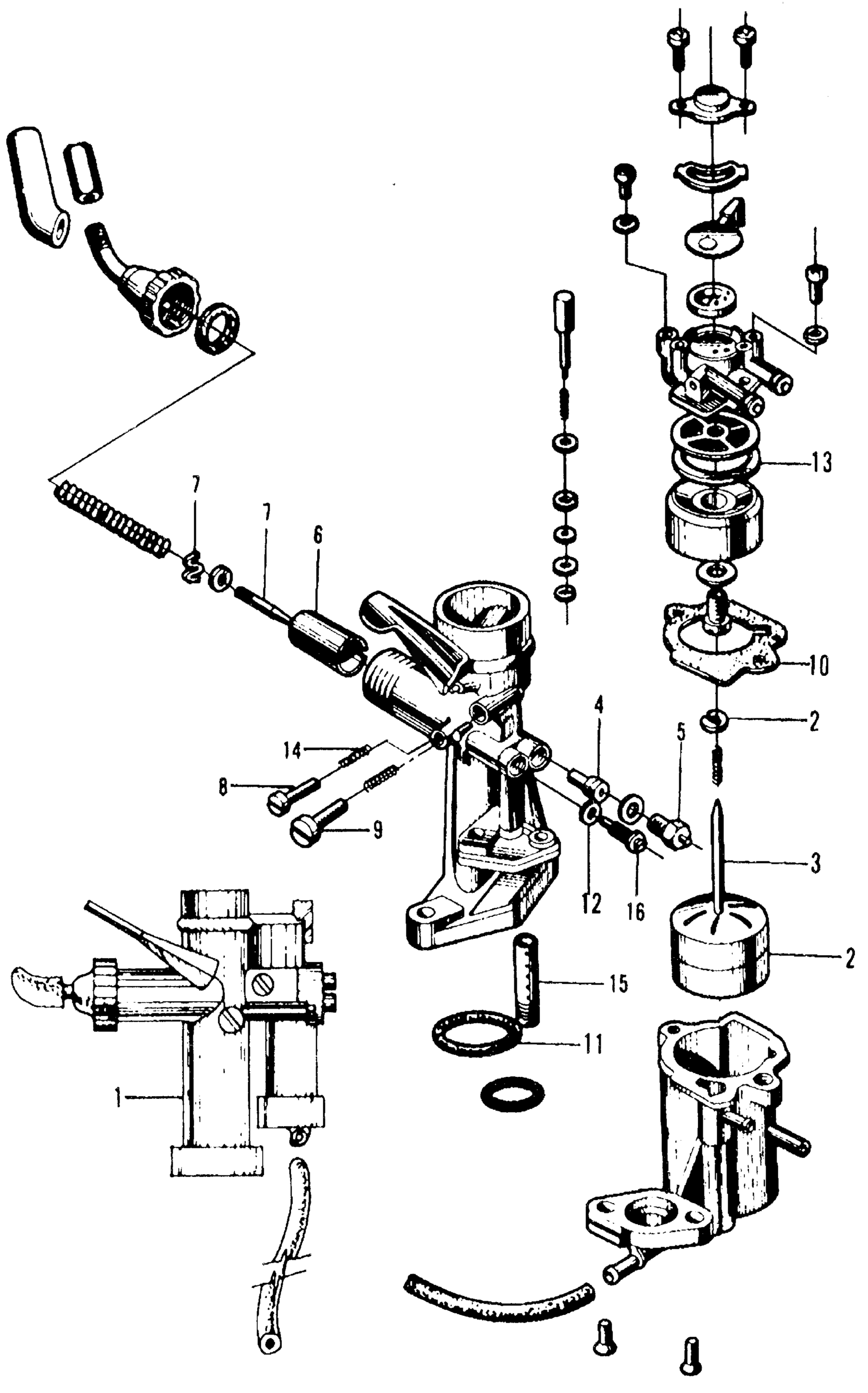

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-001-030

Unavailable

2

FLOAT (NOT AVAILABLE)

16122-001-004

Unavailable

3

VALVE, FLOAT (NOT AVAILABLE)

16125-001-004

Unavailable

4

NEEDLE, JET (NOT AVAILABLE)

16133-001-004

Unavailable

5

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-001-004

Unavailable

6

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-040-680

Unavailable

6

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16141-001-004.

16022-040-680

Unavailable

7

NEEDLE, JET (NOT AVAILABLE)

16151-001-004

Unavailable

8

SCREW, AIR (NOT AVAILABLE)

16162-001-004

$3.66

9

SCREW, THROTTLE

16163-001-004

Unavailable

10

FLOAT, GASKET (NOT AVAILABLE)

16172-001-004

Unavailable

11

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

11

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

11

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

11

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

11

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

12

O-RING (4.5MM)

16175-001-004

Unavailable

13

O-RING (23X2.4)

16176-001-004

Unavailable

14

SPRING, AIR SCREW (NOT AVAILABLE)

16181-001-004

Unavailable

15

JET, MAIN (#82) (NOT AVAILABLE)

99103-08204

Unavailable

15

JET, MAIN (#85) (NOT AVAILABLE)

99103-08504

Unavailable

15

JET, MAIN (#88) (NOT AVAILABLE)

99103-08804

Unavailable

15

JET, MAIN (#90) (NOT AVAILABLE)

99103-09004

Unavailable

15

JET, MAIN (#92) (NOT AVAILABLE)

99103-09204

Unavailable

16

JET, SLOW (#35) (NOT AVAILABLE)

99128-03504

Unavailable

16

JET, SLOW (#38) (NOT AVAILABLE)

99128-03804

Unavailable
