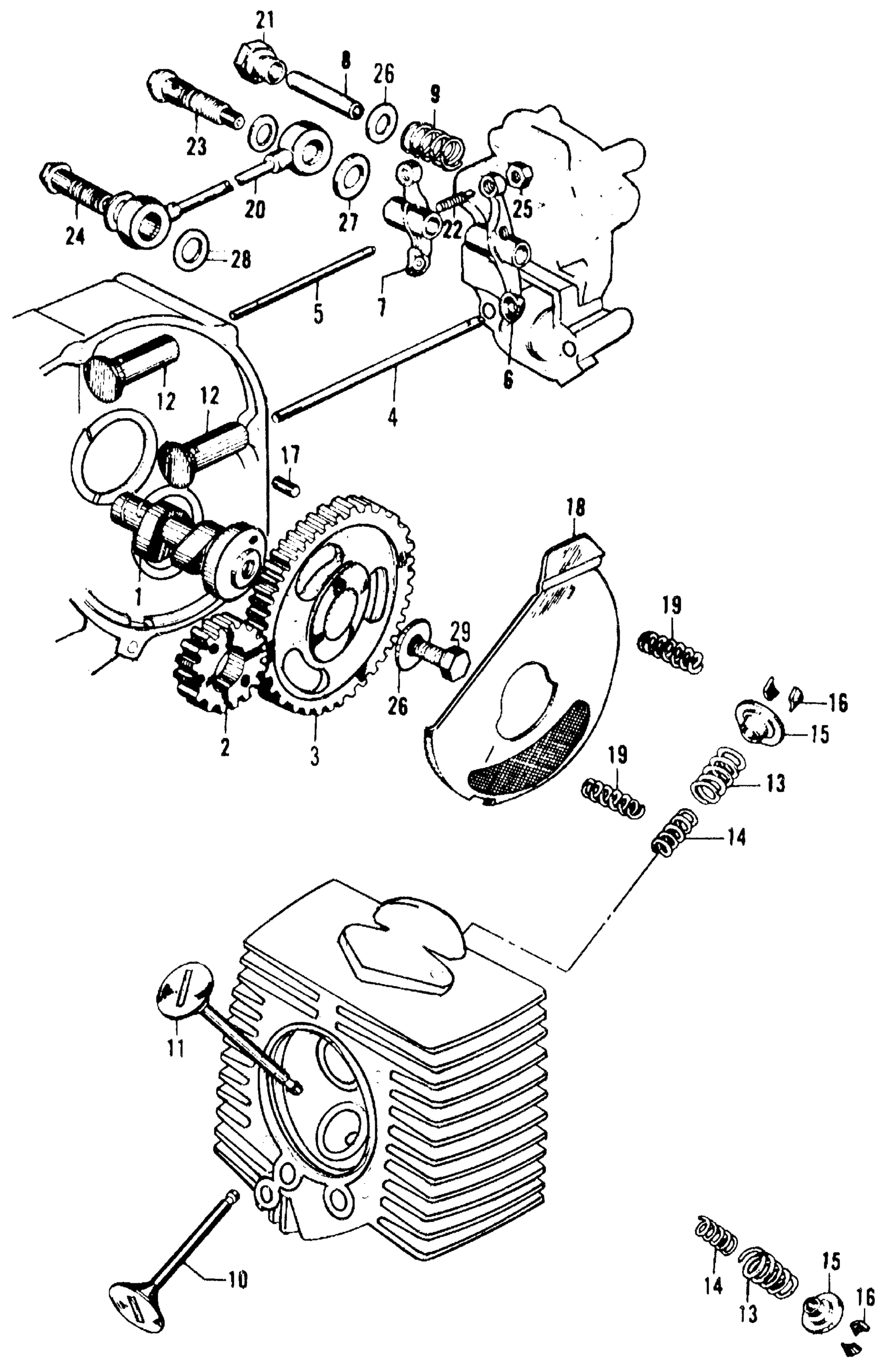

Honda CA105TA MOTORCYCLE, JPN, VIN# CA105T-100001 CAMSHAFT + VALVE Diagram

CAMSHAFT (NOT AVAILABLE)

14101-001-040

Unavailable

GEAR, TIMING

14311-011-000

$110.26

GEAR, CAM (NOT AVAILABLE)

14321-001-010

Unavailable

ROD, IN. PUSH (NOT AVAILABLE)

14411-001-030

Unavailable

ROD, PUSH EX. (NOT AVAILABLE)

14421-001-030

Unavailable

ARM, VALVE ROCKER IN. (NOT AVAILABLE)

14431-001-040

Unavailable

ARM, EX. VALVE ROCKER

14441-001-040

Unavailable

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-001-030

Unavailable

SPRING, ROCKER ARM SIDE (NOT AVAILABLE)

14481-001-000

Unavailable

VALVE, IN. (NOT AVAILABLE)

14711-001-010

$33.41

VALVE, EX. (NOT AVAILABLE)

14721-001-010

$57.64

LIFTER, VALVE (NOT AVAILABLE)

14731-001-030

Unavailable

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-001-020

Unavailable

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-001-010

Unavailable

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-011-000

Unavailable

COTTER, VALVE

14781-001-004

$4.95

COTTER, VALVE

14781-001-010

$5.66

PIN, OIL PUMP SIDE COVER (NOT AVAILABLE)

15199-250-000

Unavailable

STRAINER, OIL (NOT AVAILABLE)

15420-001-010

Unavailable

SPRING, OIL STRAINER FIXING (NOT AVAILABLE)

15432-001-000

Unavailable

PIPE A, OIL (NOT AVAILABLE)

15510-001-010

Unavailable

SCREW, VALVE ROCKER ARM SHAFT (NOT AVAILABLE)

90011-001-000

Unavailable

SCREW, TAPPET ADJ.

90012-333-000

$2.75

BOLT A, OIL JOINT (NOT AVAILABLE)

90015-001-000

Unavailable

BOLT B, OIL JOINT (NOT AVAILABLE)

90016-001-010

Unavailable

NUT, TAPPET ADJ.

90206-001-000

$1.66

WASHER, CAM GEAR SIDE (NOT AVAILABLE)

90403-001-000

Unavailable

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

WASHER (10.2MM)

90481-001-020

$2.92

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49
