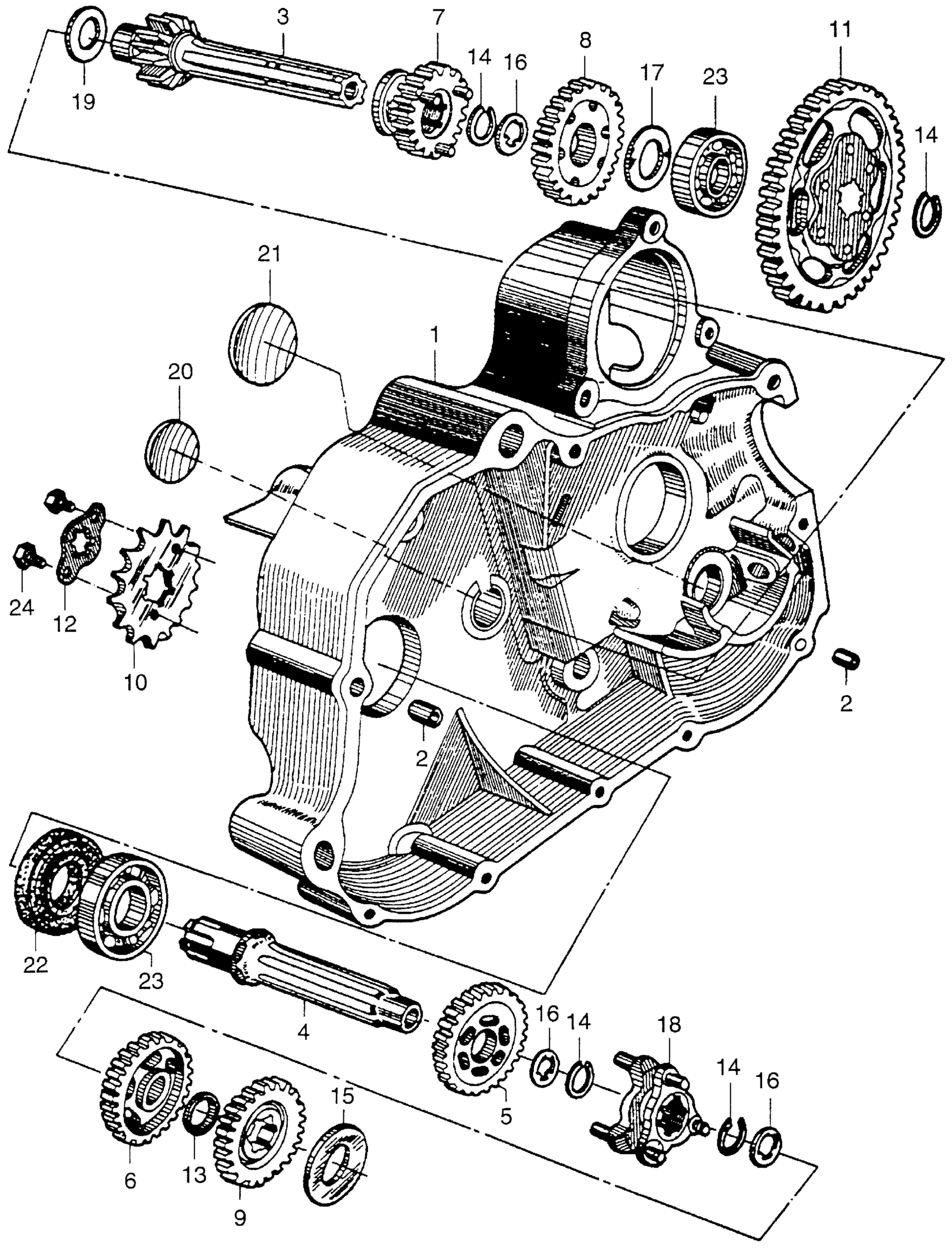

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 TRANSMISSION + LEFT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 0036553

11200-003-010

Unavailable

1

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 0036554 to A048440

11200-003-020

Unavailable

1

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN A048441 This part replaces 11200-003-030.

11200-003-040

Unavailable

1

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN A048441

11200-003-040

Unavailable

2

PIN A, DOWEL (10X14)

94301-10140

$2.28

3

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)

23211-001-030

Unavailable

4

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN A048440

23221-001-050

$241.62

4

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN A048441

23221-001-060

Unavailable

5

GEAR, LOW TRANSMISSION (35T)

23421-001-040

Unavailable

6

GEAR, SECOND TRANSMISSION (29T) (NOT AVAILABLE)

23431-001-020

Unavailable

7

GEAR, TRANSMISSION (25T)

23441-001-040

$97.56

8

GEAR, MAINSHAFT (25T)

23451-001-030

Unavailable

9

GEAR, TOP COUNTERSHAFT (NOT AVAILABLE)

23461-001-010

Unavailable

10

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

10

SPROCKET, DRIVE (14T) This part replaces 23801-001-010.

23800-040-010

$17.03

11

GEAR, PRIMARY DRIVEN (NOT AVAILABLE)

23110-001-030

Unavailable

12

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE)

23811-001-000

Unavailable

13

COLLAR, TRANSMISSION GEAR (BND) (NOT AVAILABLE)

23911-001-000

Unavailable

14

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

15

WASHER, MAINSHAFT TOP GEAR (NOT AVAILABLE)

90412-001-010

Unavailable

16

WASHER, SPLINE (17MM) This part replaces 90461-001-000.

90461-035-000

$2.57

16

WASHER, SPLINE (17MM)

90461-035-000

$2.57

17

WASHER, MAINSHAFT TOP GEAR (NOT AVAILABLE)

90411-001-000

Unavailable

18

SHIFTER, TRANSMISSION GEAR

24201-001-010

Unavailable

19

WASHER, THRUST (14MM)

90451-001-000

$3.67

20

PLUG, SEALING (NOT AVAILABLE)

90805-001-000

Unavailable

21

PLUG, CRANKCASE (24mm) (NOT AVAILABLE)

90803-001-000

Unavailable

22

OIL SEAL (30X42X54.5) (NOT AVAILABLE)

91205-003-000

Unavailable

23

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

23

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

24

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
