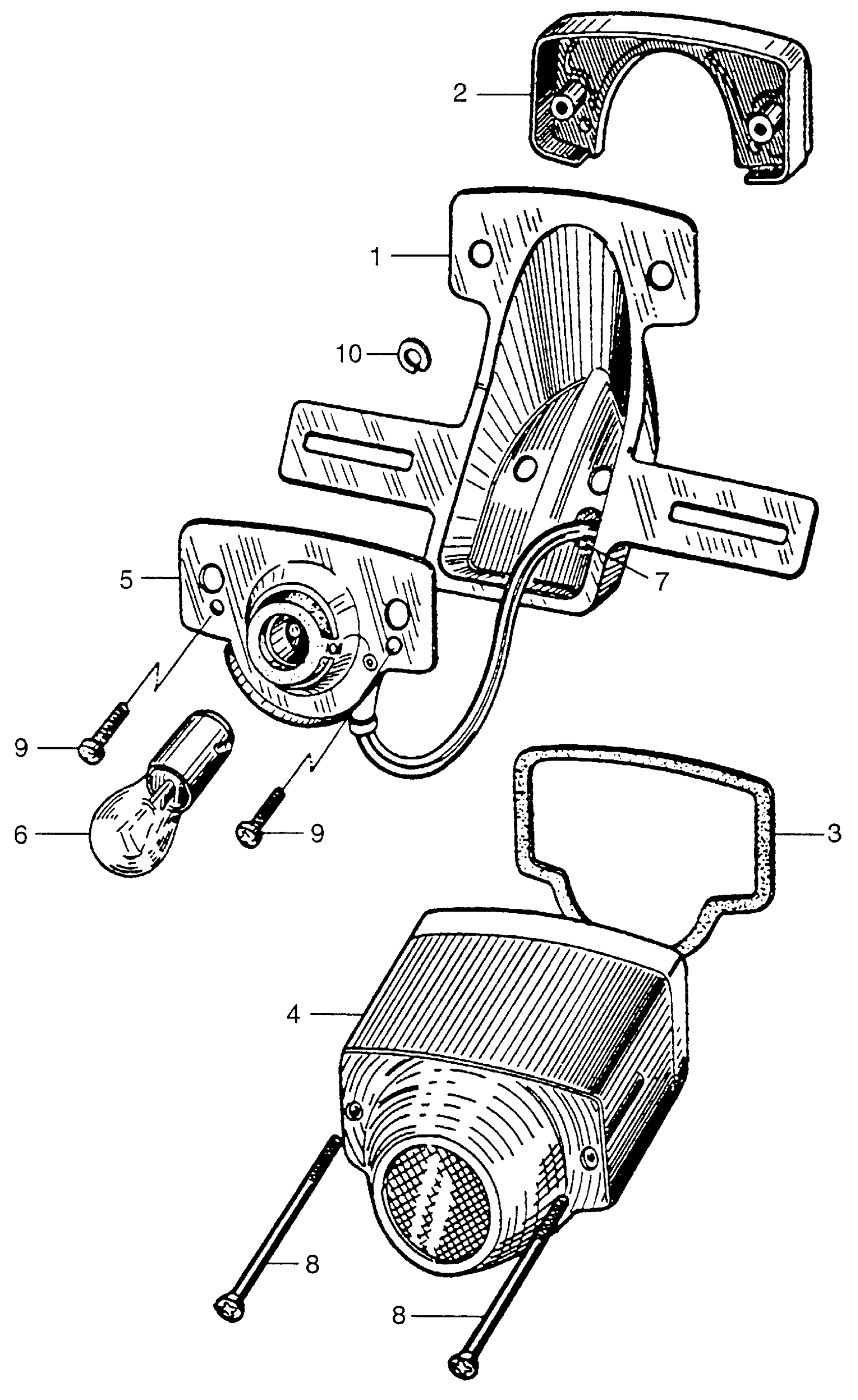

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 TAILLIGHT II Diagram

#

Description
Price

NI

TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33700-001-810.

33700-033-000

Unavailable

NI

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-033-000

Unavailable

1

BRACKET, TAILLIGHT (NOT AVAILABLE)

50215-001-821Z

Unavailable

2

PLATE, TAILLIGHT LENS HOLDER

33705-268-670

Unavailable

3

GASKET, TAILLIGHT LENS

33709-268-810

Unavailable

4

LENS, TAILLIGHT

33701-268-680

Unavailable

5

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE)

33710-011-671

Unavailable

6

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

7

GROMMET, TAILLIGHT WIRE (NOT AVAILABLE)

32982-011-000

Unavailable

8

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

8

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

8

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

8

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98

9

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

9

SCREW, PAN (4X10)

93500-04010-0A

$1.49

9

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

10

WASHER, SPRING (4MM)

94111-04000

$1.49
