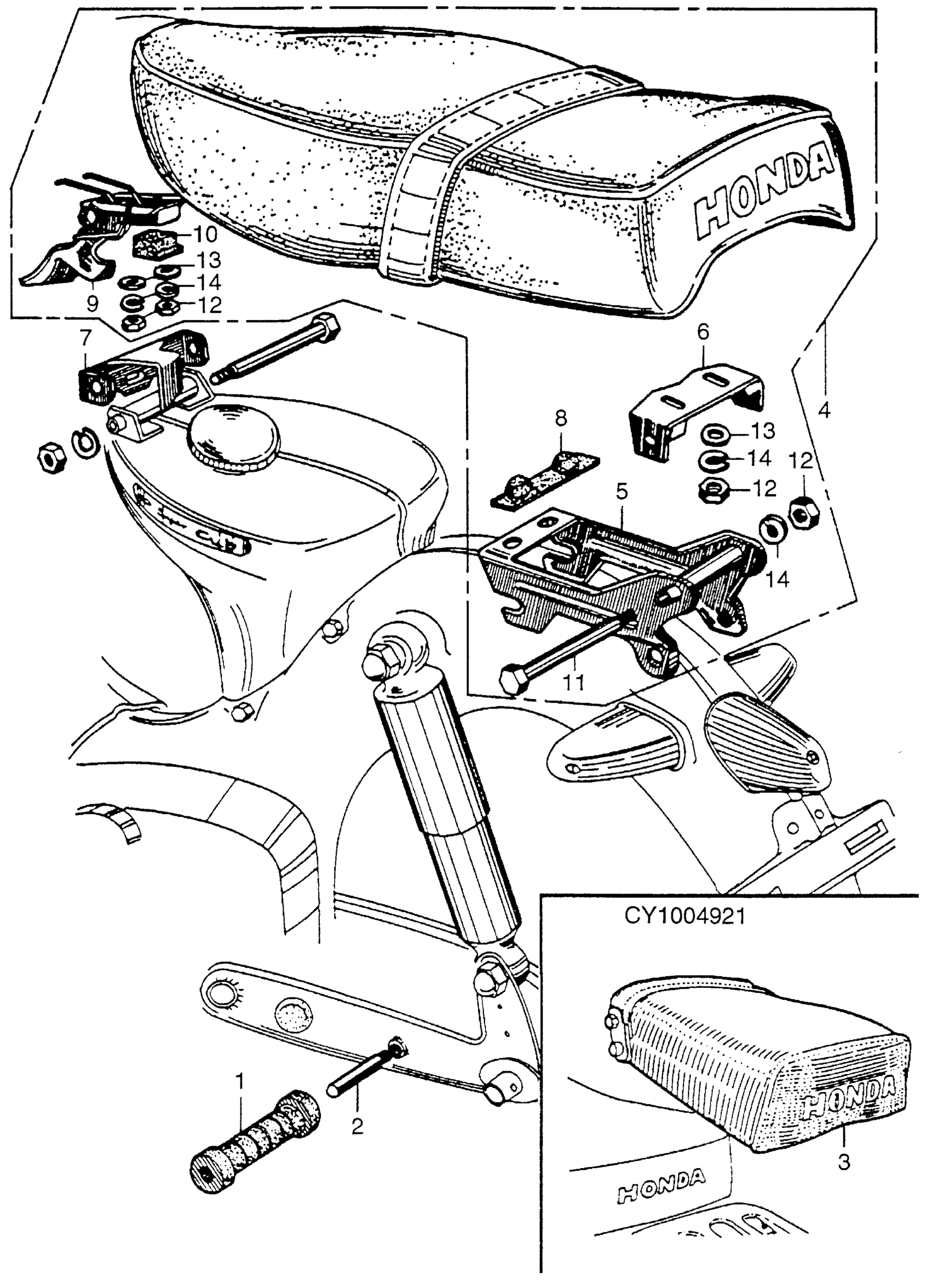

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 SEAT + PILLION SEAT Diagram

#

Description
Price

1

RUBBER, PILLION STEP This part replaces 50731-001-810.

95011-32000

$7.16

1

RUBBER, PILLION STEP This part replaces 50731-051-000.

95011-32000

$7.16

1

RUBBER, PILLION STEP

95011-32000

$7.16

2

BAR, L. PILLION STEP

50700-001-810

Unavailable

3

SEAT, L. PILLION *NH1L* (BLACK) (NOT AVAILABLE)

77300-001-810A

Unavailable

4

SEAT *NH5L/IVORY* (ELEPHANT GRAY & IVORY) (NOT AVAILABLE) This part replaces 77200-001-810A.

77200-041-810N

Unavailable

4

SEAT (NOT AVAILABLE) This part replaces 77200-001-810Q.

77200-001-810V

Unavailable

4

SEAT (NOT AVAILABLE)

77200-001-810V

Unavailable

4

SEAT *NH5L/IVORY* (ELEPHANT GRAY & IVORY) (NOT AVAILABLE)

77200-041-810N

Unavailable

5

BRACKET A, SEAT (NOT AVAILABLE) | Use from Frame SN 0010001 to A048940

77221-001-810Z

Unavailable

5

BRACKET A, SEAT | Use from Frame SN A048941

77221-001-811Z

Unavailable

6

BRACKET B, DOUBLE SEAT *NH1* (BLACK) (NOT AVAILABLE)

77222-001-810B

Unavailable

7

BRACKET C, SEAT (NOT AVAILABLE)

77130-001-810

Unavailable

8

RUBBER, RR. SEAT STOPPER (NOT AVAILABLE)

77241-001-810

Unavailable

9

CATCH ASSY., SEAT This part replaces 77230-001-810.

77230-087-610

Unavailable

9

CATCH ASSY., SEAT This part replaces 77230-040-600.

77230-087-610

Unavailable

9

CATCH ASSY., SEAT

77230-087-610

Unavailable

10

STOPPER, FR. SEAT (NOT AVAILABLE)

77236-001-810

Unavailable

11

BOLT, DOUBLE SEAT HINGE (NOT AVAILABLE)

90101-001-810

Unavailable

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM)

94101-06800

$1.49

14

WASHER, SPRING (6MM)

94111-06000

$1.49
