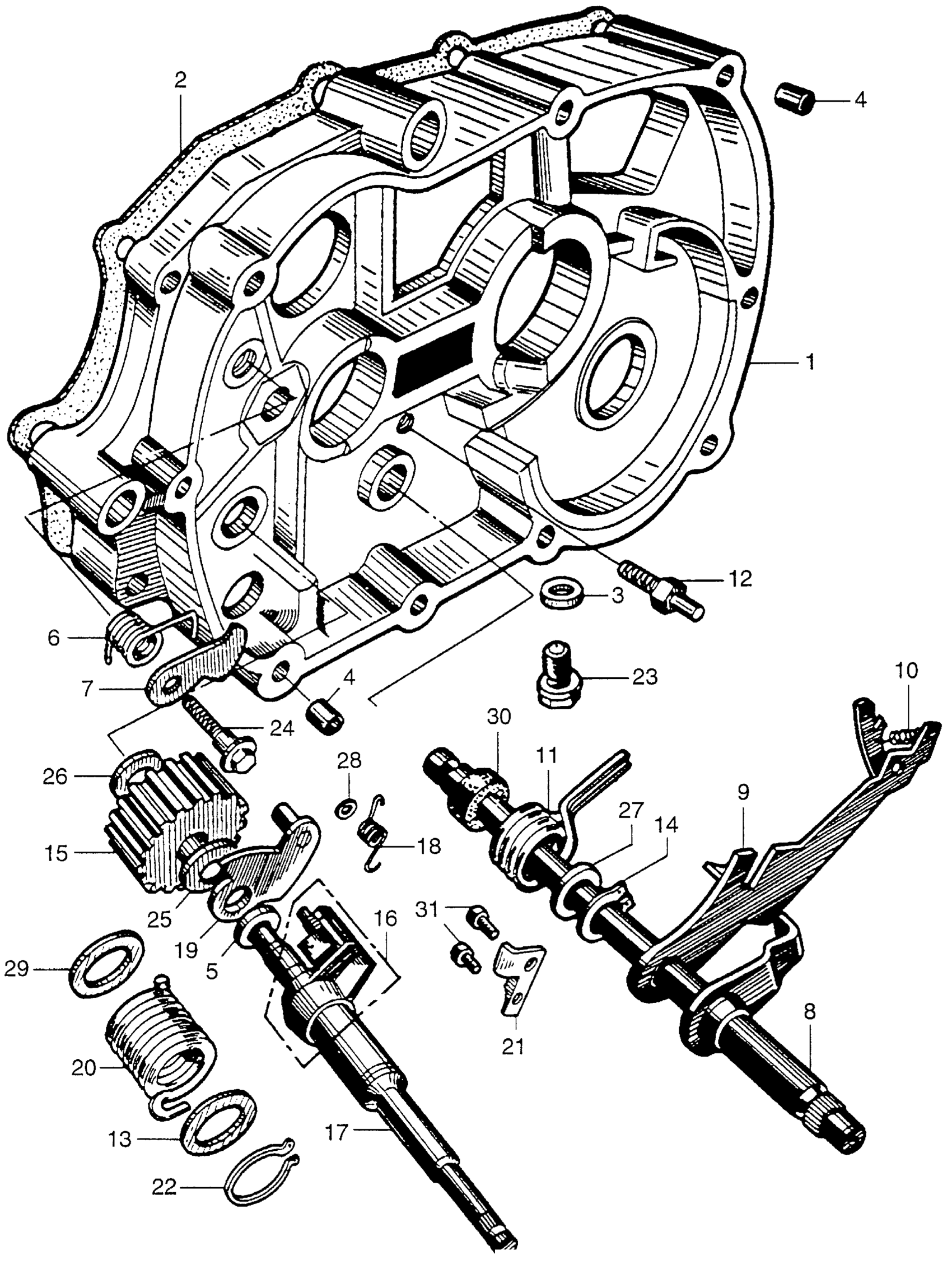

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 GEAR CHANGE + RIGHT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-003-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE)

11100-003-040

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE)

11191-003-000

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE)

11191-003-010

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-003-020.

11191-003-307

Unavailable

3

GASKET, DRAIN PLUG (NOT AVAILABLE)

90407-001-000

Unavailable

3

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

3

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

4

PIN A, DOWEL (8X12) This part replaces 90701-001-000.

94301-08120

$2.19

4

PIN A, DOWEL (8X12)

94301-08120

$2.19

5

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

6

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-001-020

Unavailable

7

STOPPER, SHIFT DRUM

24431-001-040

Unavailable

8

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-003-000

$57.90

9

ARM, GEARSHIFT (NOT AVAILABLE)

24630-001-090

Unavailable

10

SPRING, GEARSHIFT ARM This part replaces 24641-001-000.

24641-041-000

$2.90

10

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

11

SPRING, GEARSHIFT RETURN This part replaces 24651-001-000.

24651-035-000

Unavailable

11

SPRING, GEARSHIFT RETURN

24651-035-000

Unavailable

12

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-001-040

Unavailable

13

WASHER (22mm) (NOT AVAILABLE)

90494-001-000

Unavailable

14

CIRCLIP (OUTER) (12MM) This part replaces 90603-001-000.

94510-12000

$1.78

14

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

15

PINION, KICK STARTER (NOT AVAILABLE)

28211-001-020

Unavailable

16

RATCHET, KICK STARTER

28221-011-010

Unavailable

17

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-001-060

Unavailable

17

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-001-070.

28250-001-305

Unavailable

17

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-001-080

Unavailable

17

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-001-305

Unavailable

17

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-001-375.

28250-001-305

Unavailable

18

SPRING, KICK STARTER PAWL (NOT AVAILABLE)

28228-001-050

Unavailable

18

SPRING, KICK STARTER PAWL (NOT AVAILABLE)

28228-001-060

Unavailable

19

GUIDE, KICK STARTER RATCHET (NOT AVAILABLE)

28224-011-000

Unavailable

20

SPRING, KICK STARTER (NOT AVAILABLE)

28281-001-010

Unavailable

21

STOPPER, KICK (NOT AVAILABLE)

28331-001-000

Unavailable

22

CIRCLIP (23MM) (NOT AVAILABLE)

90604-001-000

Unavailable

23

BOLT, HEX. (8X14) This part replaces 92000-08014.

92101-08014-0A

$1.61

23

BOLT, HEX. (8X14) This part replaces 92000-08014-0A.

92101-08014-0A

$1.61

23

BOLT, HEX. (8X14)

92101-08014-0A

$1.61

23

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

24

PIVOT, SHIFT DRUM STOPPER ARM (NOT AVAILABLE)

90023-001-010

Unavailable

25

WASHER, THRUST (14MM)

90451-001-000

$3.67

26

WASHER, STARTER PINION SIDE (NOT AVAILABLE)

90421-001-000

Unavailable

27

WASHER (12MM) (NOT AVAILABLE)

90482-001-000

Unavailable

28

WASHER (6MM) (NOT AVAILABLE)

90486-001-000

Unavailable

29

WASHER (4.5mm) (NOT AVAILABLE)

90486-001-010

Unavailable

29

WASHER (23mm) (NOT AVAILABLE)

90487-001-000

Unavailable

30

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

30

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

30

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

30

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

30

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

31

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

31

BOLT,HEX(8X20) This part replaces 92000-08020-02.

92101-08020-0B

$1.66
