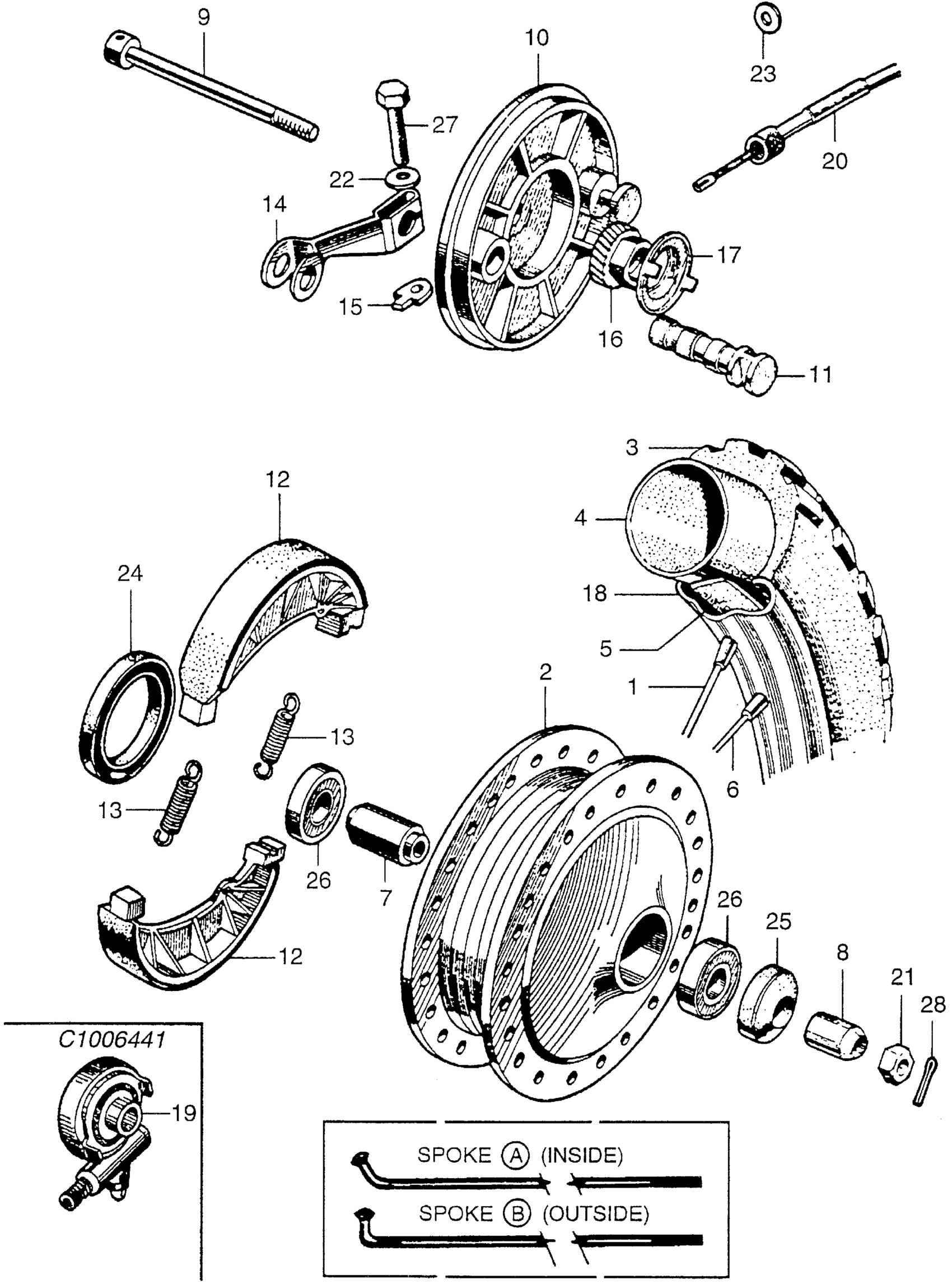

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE A, FR.

44618-001-020

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0010001 to A046540

44600-001-060

Unavailable

2

HUB, FR. WHEEL | Use from Frame SN A046541

44601-011-000

Unavailable

3

TIRE, FR. (2.25-17) (NITTO) (NOT AVAILABLE)

44711-001-680

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

5

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

5

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

5

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

6

SPOKE A (12X162)

97351-21164-10

$3.21

6

SPOKE A (12X162) This part replaces 97351-21164-12.

97351-21164-10

$3.21

7

COLLAR, FR. DISTANCE AXLE

44620-001-010

Unavailable

8

COLLAR, FR. SIDE WHEEL (NOT AVAILABLE)

44311-011-000

Unavailable

9

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-001-640

Unavailable

10

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to A046540

45100-001-060

Unavailable

10

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN A046541

45100-001-070

Unavailable

11

CAM, BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to A046540

45131-001-010

Unavailable

11

CAM, BRAKE | Use from Frame SN A046541

45131-001-020

Unavailable

12

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

13

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

13

SPRING, BRAKE SHOE

45133-028-000

$2.03

14

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to A082140

45410-001-020

Unavailable

14

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN A082141

45410-001-030

Unavailable

15

NUT, FR. BRAKE ARM SETTING | Use from Frame SN A082141

45436-001-000

$1.80

16

GEAR, SPEEDOMETER | Use from Frame SN A046541

44804-096-000

Unavailable

16

GEAR, SPEEDOMETER | Use from Frame SN A046541 This part replaces 44806-001-000.

44804-096-000

Unavailable

17

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-011-010

Unavailable

17

GEAR, SPEEDOMETER (NOT AVAILABLE) This part replaces 44808-011-000.

44806-011-010

Unavailable

18

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

18

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

19

GEAR BOX, SPEEDOMETER | Use from Frame SN 0010001 to 0105950

44800-001-020

Unavailable

19

GEAR BOX, SPEEDOMETER | Use from Frame SN 0105951 to A046540

44800-001-040

Unavailable

20

CABLE, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 00010001 to A061800

44830-001-000

Unavailable

20

CABLE, SPEEDOMETER | Use from Frame SN A061801 This part replaces 44830-001-030.

44830-074-000

Unavailable

20

CABLE, SPEEDOMETER | Use from Frame SN A061801

44830-074-000

Unavailable

21

NUT, CASTLE (10MM) (NOT AVAILABLE)

94011-10020

Unavailable

22

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

23

WASHER, SPEEDOMETER PINION | Use from Frame SN A046541

90539-011-000

Unavailable

24

OIL SEAL (45X58X7) This part replaces 91251-001-020.

91251-001-023

Unavailable

24

OIL SEAL (45X58X7)

91251-001-023

Unavailable

25

OIL SEAL (19X23X7) (NOT AVAILABLE) | Use from Frame SN A046541 This part replaces 91252-001-000.

91252-001-305

Unavailable

25

OIL SEAL (21X35X5.5) | Use from Frame SN 0010001 to A046540 This part replaces 91252-001-020.

91252-001-023

$6.14

25

OIL SEAL (21X35X5.5) | Use from Frame SN 0010001 to A046540

91252-001-023

$6.14

25

OIL SEAL (19X23X7) (NOT AVAILABLE) | Use from Frame SN A046541

91252-001-305

Unavailable

26

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

27

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

27

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49
