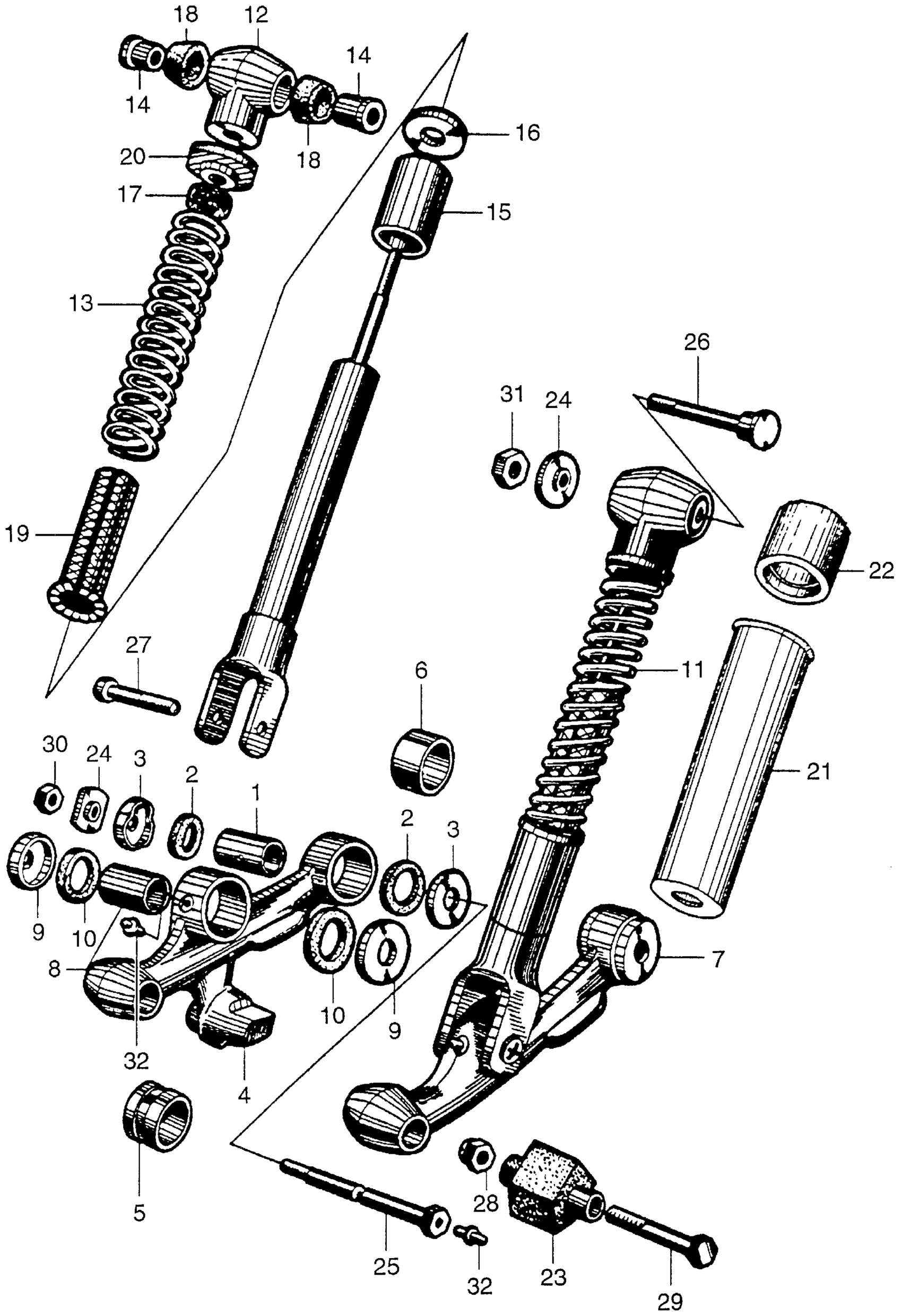

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

COLLAR, FR. ARM PIVOT (NOT AVAILABLE)

51331-001-000

Unavailable

2

DUST SEAL, FR. ARM PIVOT

51332-001-000

Unavailable

3

CAP, FR. ARM PIVOT DUST SEAL

51333-001-000

Unavailable

4

ARM, R. FR. SUSPENSION (NOT AVAILABLE)

51210-001-000

Unavailable

4

ARM, R. FR. SUSPENSION (NOT AVAILABLE)

51210-001-010

Unavailable

5

BUSHING, FR. FORK (LOWER) (NOT AVAILABLE)

51311-001-000

$11.43

6

BUSHING, FR. ARM PIVOT (NOT AVAILABLE)

51312-001-000

Unavailable

7

ARM, L. PIVOT SUSPENSION

51220-001-000

Unavailable

8

COLLAR, FR. FORK DISTANCE (LOWER) (NOT AVAILABLE)

51334-001-000

Unavailable

9

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

10

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

11

SHOCK ABSORBER ASSY., FR. (NOT AVAILABLE)

51400-001-050

Unavailable

12

METAL, FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 0010001 to A051279

51410-001-030

Unavailable

12

METAL, FR. FORK (UPPER) | Use from Frame SN A051280

51410-001-040

Unavailable

13

SPRING, FR. FORK (NOT AVAILABLE)

51401-001-020

Unavailable

14

COLLAR, FR. FORK (UPPER) (NOT AVAILABLE)

51488-001-000

Unavailable

15

COLLAR, FR. FORK (OUTER)

51486-001-000

Unavailable

16

SEAT, FR. FORK SPRING

51407-001-000

Unavailable

17

RUBBER, FR. FORK STOPPER | Use from Frame SN 0010001 to A051279

51475-001-000

Unavailable

17

RUBBER, FR. FORK STOPPER | Use from Frame SN A051280

51475-001-010

Unavailable

18

BUSH, FR. FORK (NOT AVAILABLE)

51489-001-000

Unavailable

19

GUIDE, FR. FORK SPRING (NOT AVAILABLE)

51409-001-020

Unavailable

20

NUT, FR. FORK LOCKING (LOWER) | Use from Frame SN 0010001 to A051279

51482-001-010

Unavailable

20

NUT, FR. FORK LOCK (LOWER) | Use from Frame SN A051280

51482-001-020

Unavailable

21

CASE, FR. FORK SPRING | Use from Frame SN 0010001 to A051279

51465-001-010

Unavailable

22

ADJUSTER, FR. FORK SPRING GUIDE

51496-001-000

Unavailable

23

STOPPER, FR. ARM REBOUND (NOT AVAILABLE)

51251-001-000

Unavailable

24

METAL, FR. FENDER FIXING (UPPER) (NOT AVAILABLE)

61117-001-010

Unavailable

25

BOLT, FR. ARM (NOT AVAILABLE)

90125-001-000

Unavailable

26

BOLT, FR. SHOCK (UPPER) (NOT AVAILABLE)

90147-001-000

Unavailable

27

BOLT, FR. SHOCK ABSORBER (LOWER) (NOT AVAILABLE) | Use from Frame SN 0010001 to A051279

90149-001-000

Unavailable

27

BOLT, FR. SHOCK (LOWER) (NOT AVAILABLE) | Use from Frame SN A051280

90149-001-010

Unavailable

28

NUT, SELF-LOCK (8MM)

90349-001-000

$2.83

29

BOLT, HEX. (8X45) This part replaces 92000-08045.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45) This part replaces 92000-08045-00.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

30

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

30

NUT, HEX. (8MM)

94030-08000

$1.49

30

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

31

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

31

NUT, HEX. (8MM)

94031-08000

$1.49

32

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

32

FITTING, GREASE (A.45)

96201-30001

$1.49
