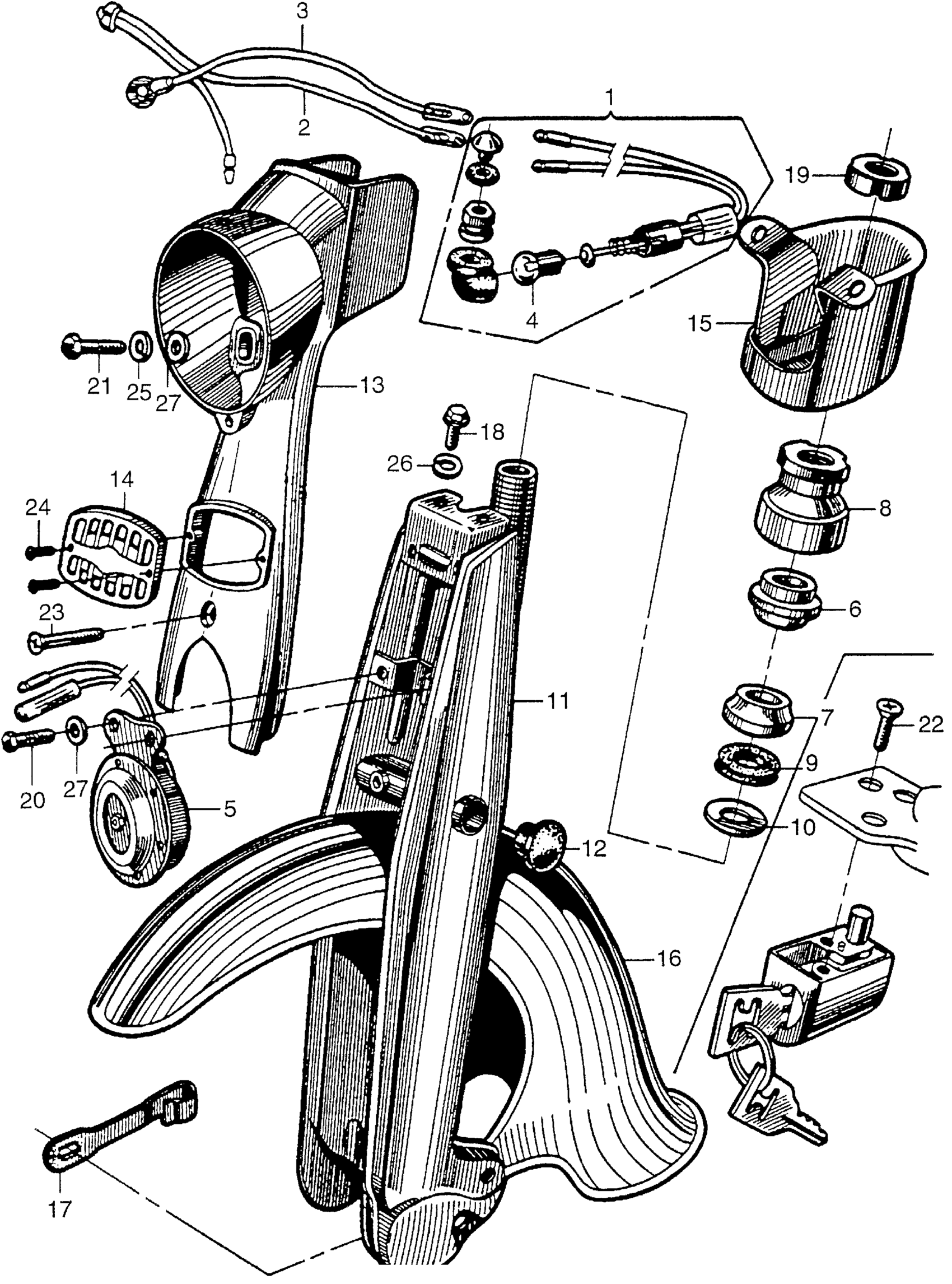

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

LAMP ASSY., PILOT RED LENS (NOT AVAILABLE) | Use from Frame SN 0010001 to B095030

37700-001-010

Unavailable

1

LAMP ASSY., PILOT GREEN LENS (NOT AVAILABLE) | Use from Frame SN B095031

37700-005-000

Unavailable

2

SUB-WIRE A, BEAM PILOT (NOT AVAILABLE)

37705-005-305

Unavailable

3

SUB-WIRE B, BEAM PILOT (NOT AVAILABLE)

37706-005-305

Unavailable

4

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

5

HORN ASSY. (NOT AVAILABLE)

38100-001-040

Unavailable

6

RACE, STEERING TOP CONE (NOT AVAILABLE)

53211-001-305

Unavailable

7

RACE, STEERING CONE (LOWER) (NOT AVAILABLE)

53212-001-315

Unavailable

8

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53220-001-000

Unavailable

9

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

10

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

11

FORK, FR. (NOT AVAILABLE)

51100-001-020Z

Unavailable

12

CAP, FR. FORK SIDE *NH1* (BLACK) This part replaces 51341-001-000B.

51341-001-000ZE

$3.93

12

CAP, FR. FORK SIDE *NH1* (BLACK)

51341-001-000ZE

$3.93

13

CASE, HEADLIGHT *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

61301-001-020A

Unavailable

13

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-001-020B

Unavailable

13

CASE, HEADLIGHT *R2* (SCARLET) (NOT AVAILABLE)

61301-001-020C

Unavailable

13

CASE, HEADLIGHT *PB285* (MARUEMU BLUE) (NOT AVAILABLE)

61301-001-020Q

Unavailable

14

COVER, HORN (NOT AVAILABLE)

61311-001-000

Unavailable

15

PLATE, FORK TOP BRIDGE

53231-034-000Z

Unavailable

16

FENDER, FR. *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

61100-001-000A

Unavailable

16

FENDER, FR. *NH1* (BLACK) (NOT AVAILABLE)

61100-001-000B

Unavailable

16

FENDER, FR. *R2* (SCARLET) (NOT AVAILABLE)

61100-001-000C

Unavailable

16

FENDER, FR. *PB285* (MARUEMU BLUE) (NOT AVAILABLE)

61100-001-000Q

Unavailable

17

CLIP, SPEEDOMETER CABLE (NOT AVAILABLE)

45452-001-000

Unavailable

18

BOLT, TOP BRIDGE SETTING (NOT AVAILABLE)

90117-001-000

Unavailable

19

NUT C, STEERING STEM This part replaces 90304-030-000.

95020-13100

Unavailable

19

NUT C, STEERING STEM

95020-13100

Unavailable

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

21

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

21

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

22

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

22

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

23

SCREW, PAN (6X38) (NOT AVAILABLE)

93500-06038-02

Unavailable

24

SCREW, OVAL (3X8)

93700-03008-0B

$1.31

24

SCREW, OVAL (3X8) This part replaces 93700-03008-02.

93700-03008-0B

$1.31

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49
