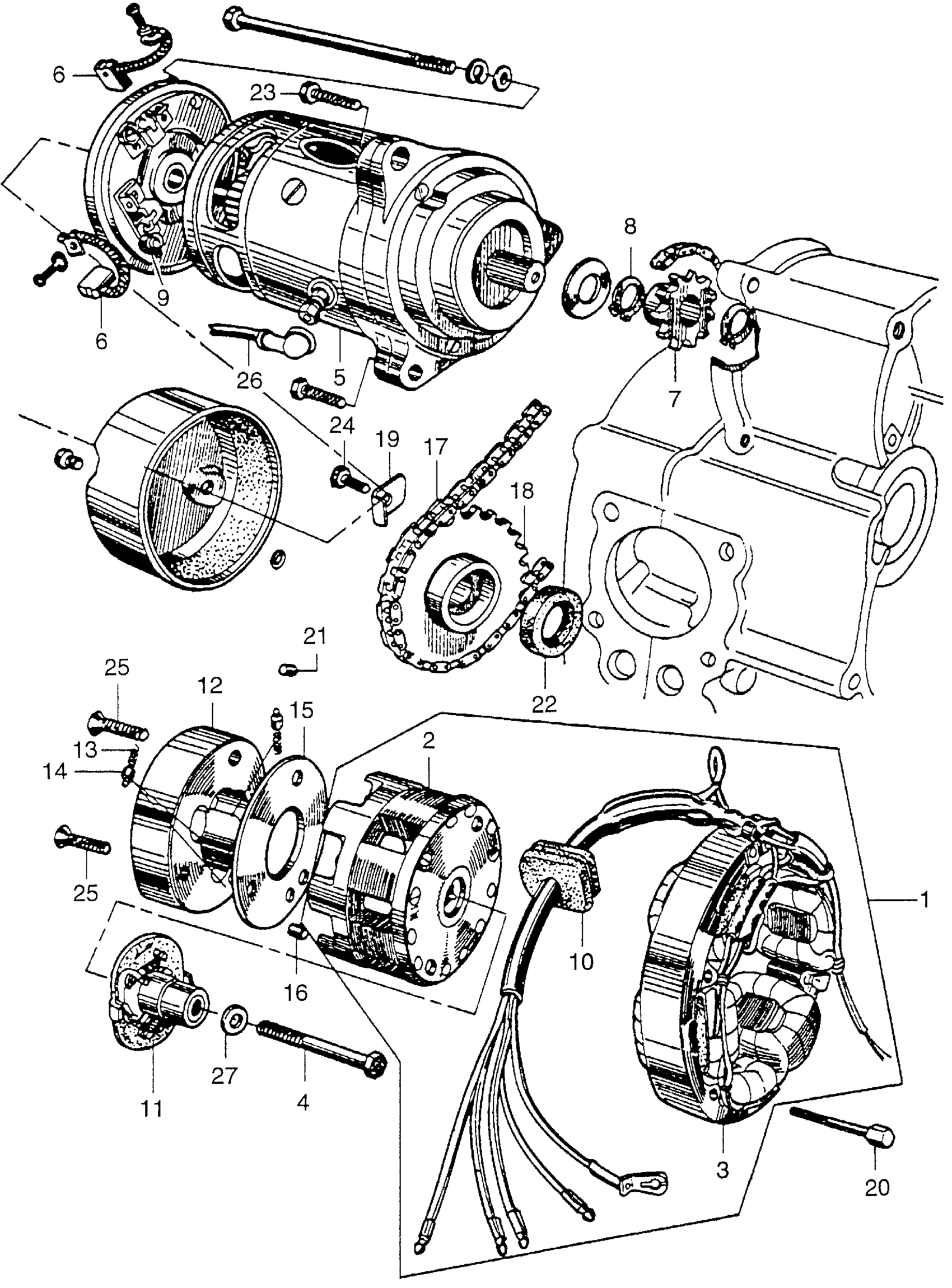

Honda CA102A MOTORCYCLE, JPN, VIN# CA102-100001 ALTERNATOR + STARTING MOTOR Diagram

#

Description
Price

1

ALTERNATOR ASSY. (NOT AVAILABLE) | Use from Engine SN 0010001 to 0101284

31100-003-004

Unavailable

1

ALTERNATOR ASSY. (NOT AVAILABLE) | Use from Engine SN 0101285

31100-003-014

Unavailable

2

ROTOR, ALTERNATOR | Use from Engine SN 0010001 to 0101284

31101-003-003

Unavailable

2

ROTOR, ALTERNATOR | Use from Engine SN 0010001 to 0101284

31101-003-004

Unavailable

2

ROTOR, ALTERNATOR | Use from Engine SN 0101285

31101-003-013

Unavailable

2

ROTOR, ALTERNATOR | Use from Engine SN 0101285

31101-003-014

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-003-004

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31102-003-003.

31100-003-004

Unavailable

3

STATOR ASSY., ALTERNATOR (NOT AVAILABLE)

31102-003-004

Unavailable

4

BOLT, ROTOR SETTING (NOT AVAILABLE) This part replaces 31104-003-003.

31104-003-004

Unavailable

4

BOLT, ROTOR SETTING (NOT AVAILABLE)

31104-003-004

Unavailable

5

MOTOR ASSY., STARTER (NOT AVAILABLE) This part replaces 31200-003-000.

31200-003-006

Unavailable

5

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-003-006

Unavailable

6

BRUSH, CARBON STARTER MOTOR (NOT AVAILABLE)

31201-003-003

Unavailable

6

BRUSH, CARBON STARTER MOTOR (NOT AVAILABLE)

31201-003-004

Unavailable

7

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-003-003

Unavailable

7

SPROCKET, STARTER MOTOR

31202-003-004

Unavailable

8

CLIP, STARTING SPROCKET (NOT AVAILABLE) This part replaces 31203-003-004.

31203-003-006

Unavailable

8

CLIP, STARTING SPROCKET (NOT AVAILABLE)

31203-003-006

Unavailable

9

SPRING, BRUSH (NOT AVAILABLE)

31204-003-003

Unavailable

9

SPRING, BRUSH (NOT AVAILABLE)

31204-003-004

Unavailable

10

GROMMET, DYNAMO WIRE (NOT AVAILABLE)

32971-003-000

Unavailable

11

ADVANCER ASSY., SPARK | Use from Engine SN 0010001 to 0101284

30220-003-000

Unavailable

11

ADVANCER ASSY., SPARK (NOT AVAILABLE) | Use from Engine SN 0101285

30220-003-010

Unavailable

12

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-003-000

Unavailable

13

SPRING, STARTER CLUTCH ROLLER (NOT AVAILABLE)

28125-003-000

Unavailable

14

CAP, STARTING CLUTCH ROLLER SPRING (NOT AVAILABLE)

28126-003-000

Unavailable

15

PLATE, SIDE STARTER CLUTCH (NOT AVAILABLE)

28128-003-000

Unavailable

16

PIN, STARTING CLUTCH KNOCK (OUTER)

28129-003-000

Unavailable

17

CHAIN, STARTING (NOT AVAILABLE) This part replaces 28101-003-000.

28101-003-003

Unavailable

17

CHAIN, STARTING (NOT AVAILABLE)

28101-003-003

Unavailable

18

SPROCKET, STARTING (NOT AVAILABLE)

28110-003-000

Unavailable

19

PLATE, STARTER SPROCKET SET (NOT AVAILABLE)

28117-003-000

Unavailable

20

BOLT, HEX. (5X30) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-05030.

92101-05030-0A

Unavailable

20

BOLT, HEX. (5X30) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-05030-0A.

92101-05030-0A

Unavailable

20

BOLT, HEX. (5X30) (SOURCE: VINTAGE PARTS INC.)

92101-05030-0A

Unavailable

21

ROLLER (8X9) (NOT AVAILABLE)

91101-003-000

Unavailable

22

OIL SEAL (16.9X28X5) (NOT AVAILABLE)

91202-003-000

Unavailable

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

24

SCREW, PAN (6X12)

93500-06012-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

25

SCREW, FLAT (5X20) (NOT AVAILABLE)

93600-05020

$0.52

26

CABLE, STARTER MOTOR (NOT AVAILABLE)

32401-003-000

Unavailable

27

WASHER, PLAIN (8MM)

94101-08000

$1.49
