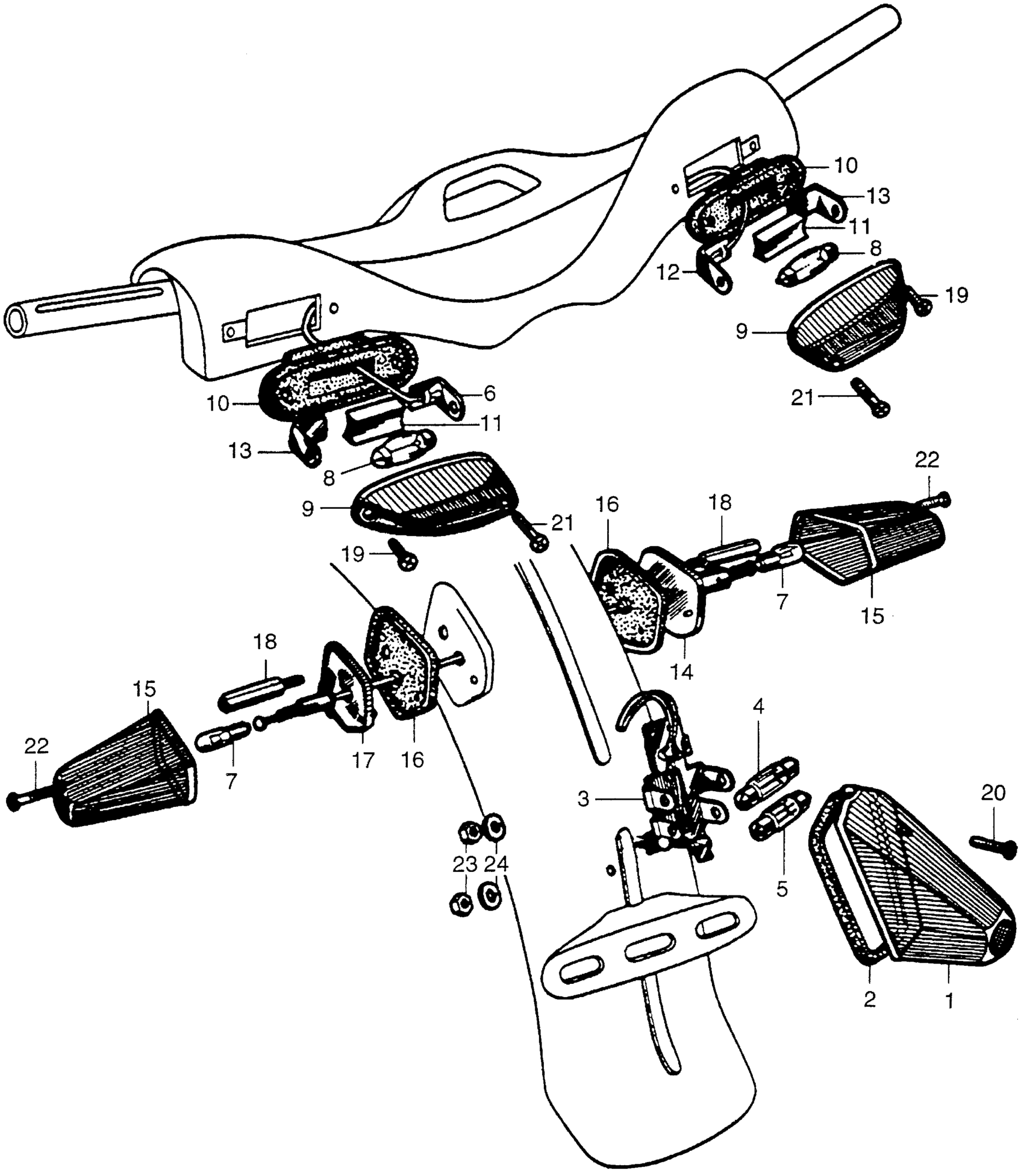

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 TURN SIGNAL + TAILLIGHT Diagram

#

Description
Price

1

LENS, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN B049394

33702-001-010

Unavailable

1

LENS, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN B049395

33702-001-020

Unavailable

2

GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use up to Frame SN B049394

33704-001-010

Unavailable

2

GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use from Frame SN B049395

33704-001-020

Unavailable

3

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE)

33703-005-010

Unavailable

4

BULB, STOP LIGHT (6V5W) (STANLEY) (NOT AVAILABLE)

34907-005-000

Unavailable

5

BULB, TAILLIGHT (6V2W) (STANLEY) (NOT AVAILABLE)

34906-005-000

Unavailable

6

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33410-001-000

Unavailable

7

BULB, TURN SIGNAL (6V8W) (STANLEY)

34905-001-000

Unavailable

8

BULB, FLASHER (NOT AVAILABLE)

34905-201-000

Unavailable

9

LENS, FR. TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN E050798

33405-005-000

Unavailable

9

LENS, FR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN E050799

33405-005-010

Unavailable

10

GASKET, FR. TURN SIGNAL LENS (NOT AVAILABLE) | Use up to Frame SN E050798

33443-001-000

Unavailable

10

GASKET, FR. TURN SIGNAL LENS (NOT AVAILABLE) | Use from Frame SN E050799

33443-001-010

Unavailable

11

SUPPORTER, TURN SIGNAL (NOT AVAILABLE)

33407-001-000

Unavailable

12

CONTACT, L. FR. TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN E050798

33468-001-000

Unavailable

12

CONTACT, L. FR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN E050799

33468-001-010

Unavailable

13

SOCKET, FR. TURN SIGNAL (NOT AVAILABLE)

33453-001-000

Unavailable

14

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-001-020

Unavailable

15

LENS, RR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN J023672

33602-011-610

Unavailable

15

LENS, RR. TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN J023671

33616-009-000

Unavailable

16

GASKET, RR. TURN SIGNAL LENS (NOT AVAILABLE)

33604-001-000

Unavailable

17

SOCKET ASSY., L. RR. TURN SIGNAL (NOT AVAILABLE)

33655-001-020

Unavailable

18

BOLT, RR. TURN SIGNAL SOCKET SETTING (NOT AVAILABLE)

90148-001-000

Unavailable

19

SCREW, OVAL (3X12)

93700-03012-0B

Unavailable

19

SCREW, OVAL (3X12) This part replaces 93700-03012-02.

93700-03012-0B

Unavailable

20

SCREW, OVAL (3X22) (SOURCE: VINTAGE PARTS INC.)

93700-03022-02

Unavailable

21

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

21

SCREW, OVAL (3X25) This part replaces 93700-03025-02.

93700-03025-0B

$1.49

22

SCREW, OVAL (3X28) This part replaces 93700-03028.

93700-03028-02

Unavailable

23

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

WASHER, SPRING (5MM)

94111-05000

$1.49
