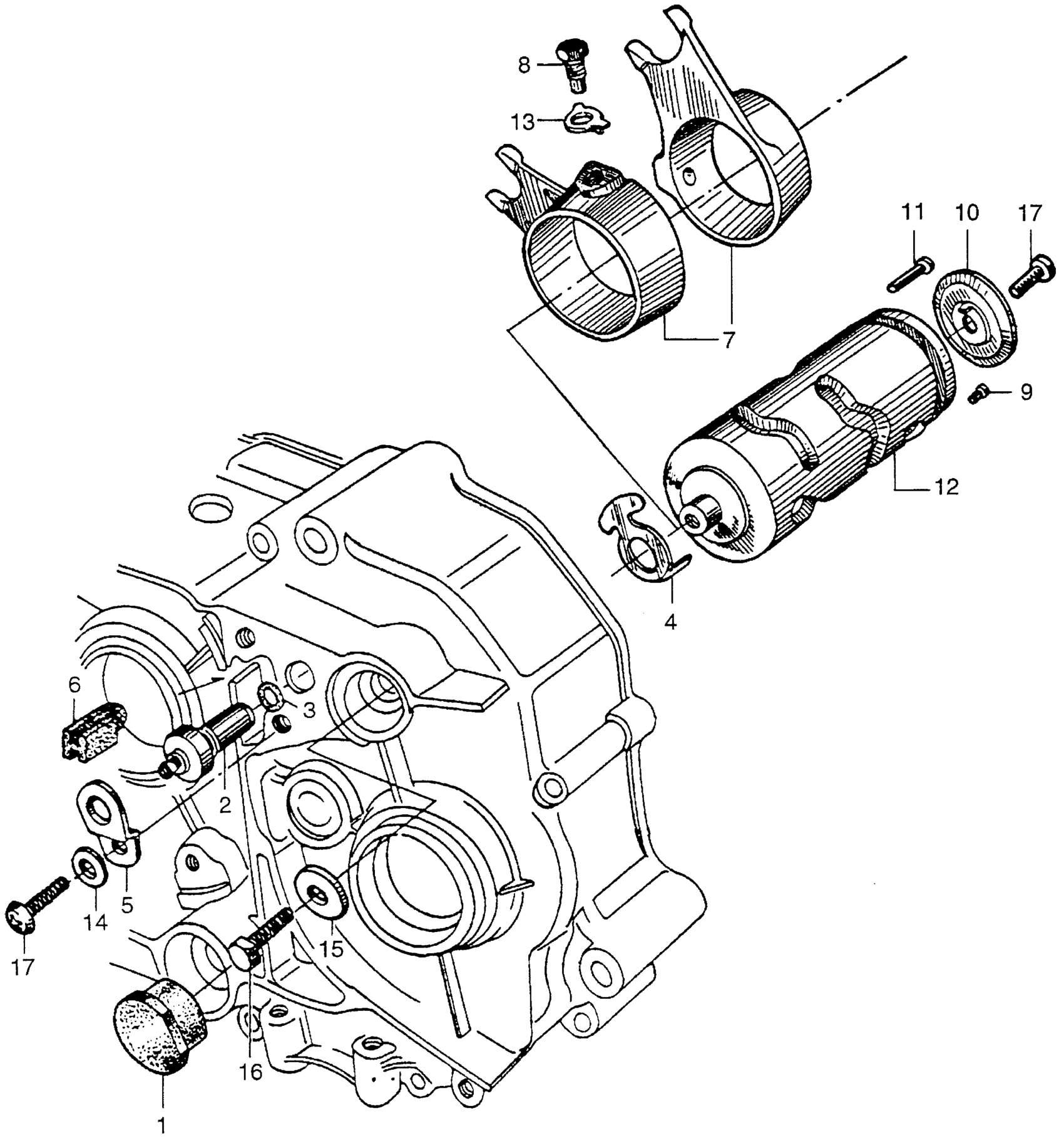

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 SHIFT DRUM Diagram

#

Description
Price

1

PLUG, RUBBER (19MM) (NOT AVAILABLE)

90801-001-000

Unavailable

2

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

3

O-RING (7X1.6)

37551-001-000

Unavailable

4

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-001-060

Unavailable

5

PLATE, CONTACT FIXING

35755-001-020

Unavailable

6

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-001-000

Unavailable

7

FORK, GEARSHIFT (NOT AVAILABLE)

24211-001-020

Unavailable

8

PIN, SHIFT FORK GUIDE (NOT AVAILABLE)

24261-001-000

Unavailable

9

PIN B, GEARSHIFT DRUM (NOT AVAILABLE)

24422-001-000

Unavailable

10

PLATE, GEARSHIFT DRUM SIDE (NOT AVAILABLE)

24425-001-010

Unavailable

11

PIN A, GEARSHIFT DRUM (NOT AVAILABLE)

24421-001-010

Unavailable

12

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-001-120

Unavailable

13

WASHER, FORK PIN (NOT AVAILABLE)

90416-001-000

Unavailable

14

WASHER, THRUST (6.5MM) (NOT AVAILABLE)

90485-001-000

Unavailable

15

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

17

SCREW, PAN (6X12)

93500-06012-0A

$1.49

17

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49
